Diesel Data: Automotive Repair
Home >> Chrysler >> 2000 >> Sebring Convertible V6-2.5L VIN H >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Lighting and Horns >> Headlamp Relay

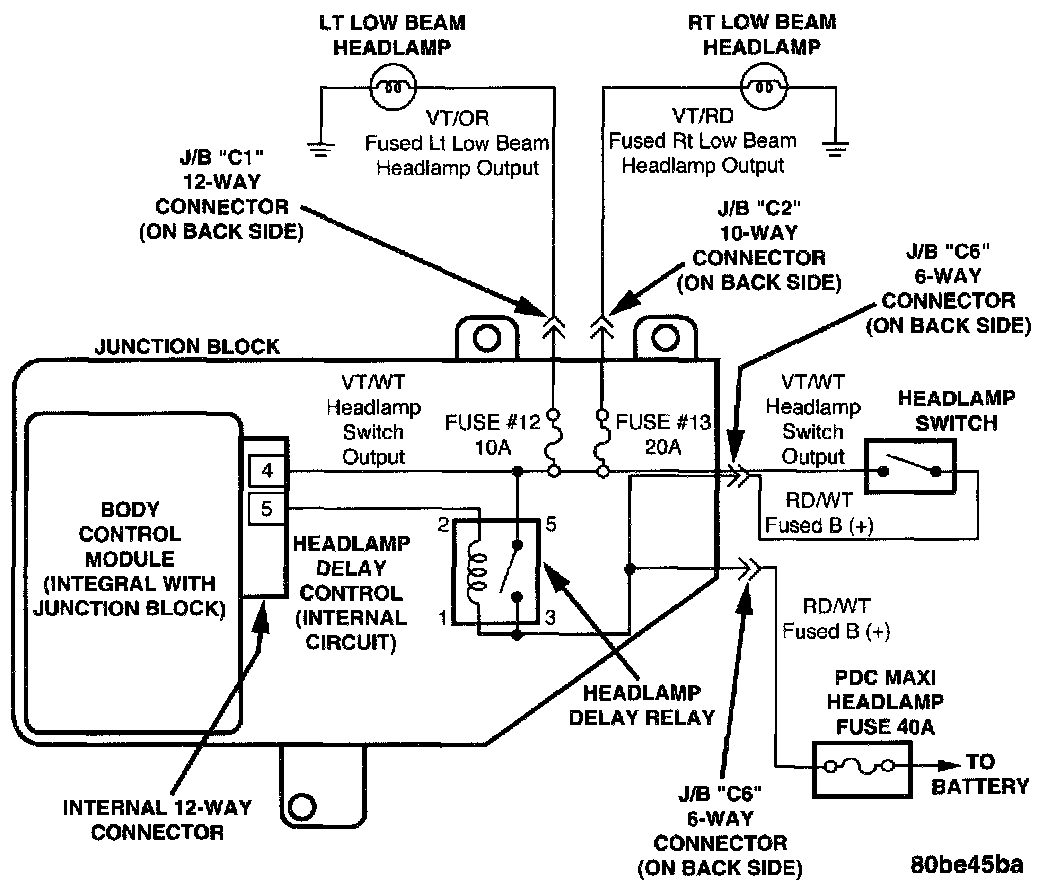

Headlamp Relay

Head Lamp Time Delay:
