Home >> Chrysler >> 2000 >> Sebring Convertible V6-2.5L VIN H >> Repair and Diagnosis >> Diagrams >> Splices >> Splice Index >> Part 1 of 2

Part 1 of 2

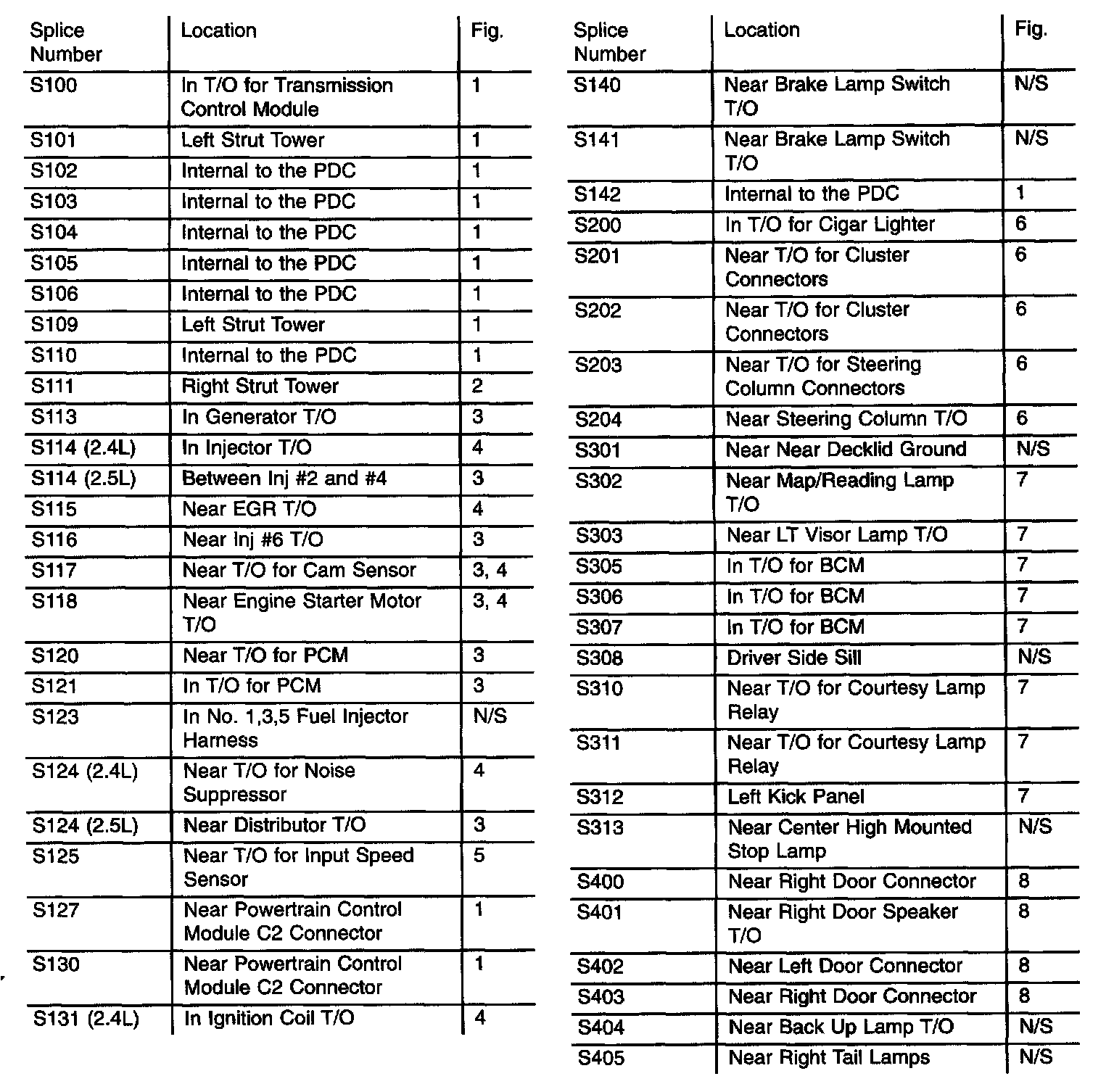

Splice Locations (Part 1 Of 2):
