Sebring Convertible V6-2.5L VIN H
>>
Repair and Diagnosis
>>
Instrument Panel, Gauges and Warning Indicators
>>
Instrument Cluster / Carrier
>>
Diagrams
>>
Connector Views
Connector Views

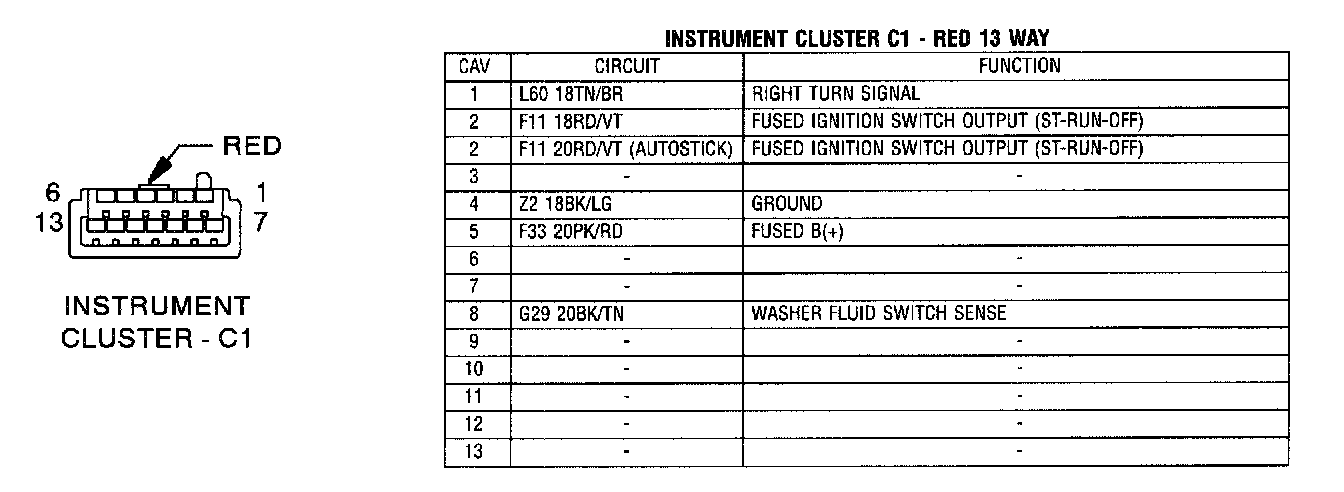

Instrument Cluster - C1:

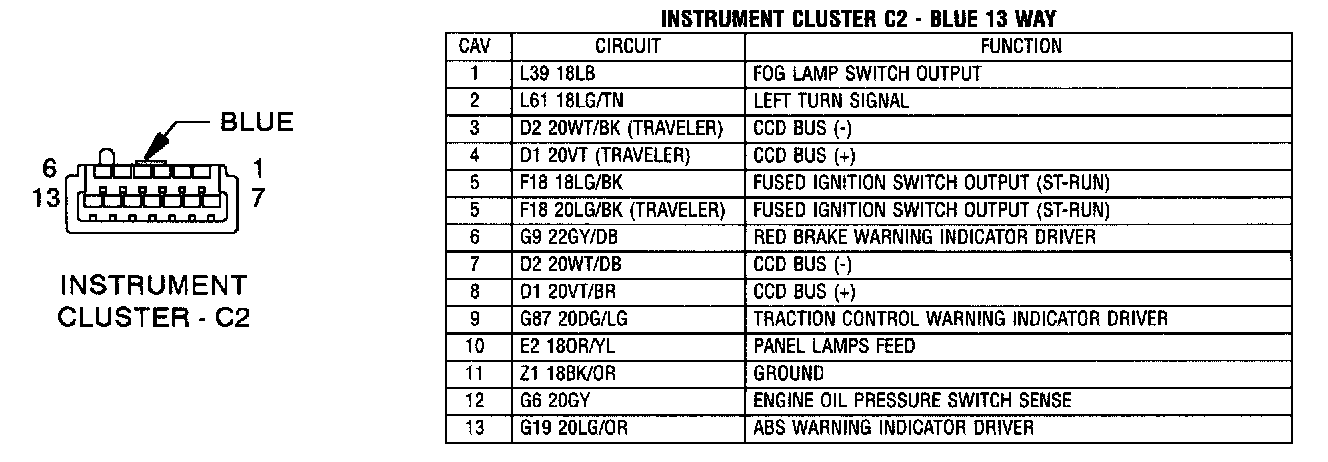

Instrument Cluster C2-Blue 13 Way:
