Headlamp: Diagrams

Left Headlamp (Built - Up Export):

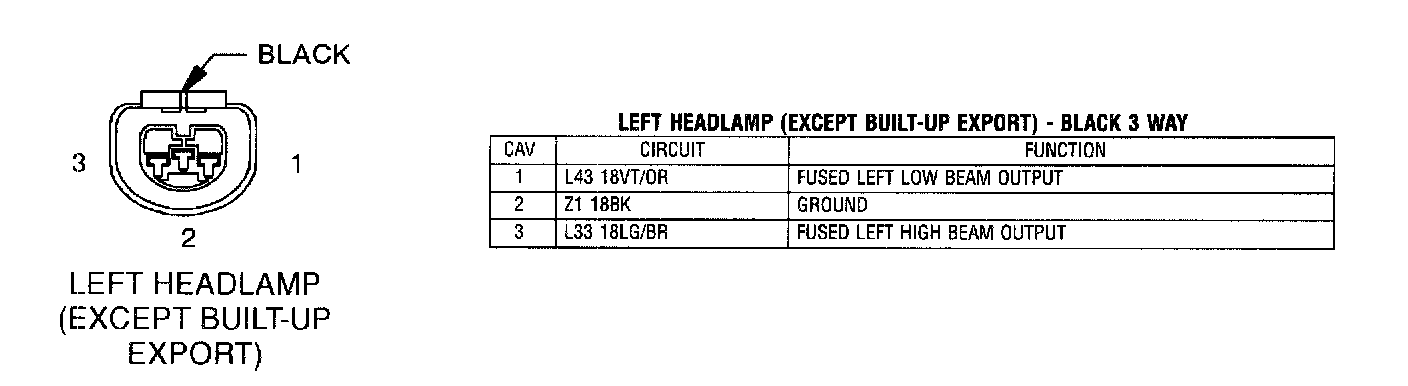

Left Headlamp (Except Built - Up Export):

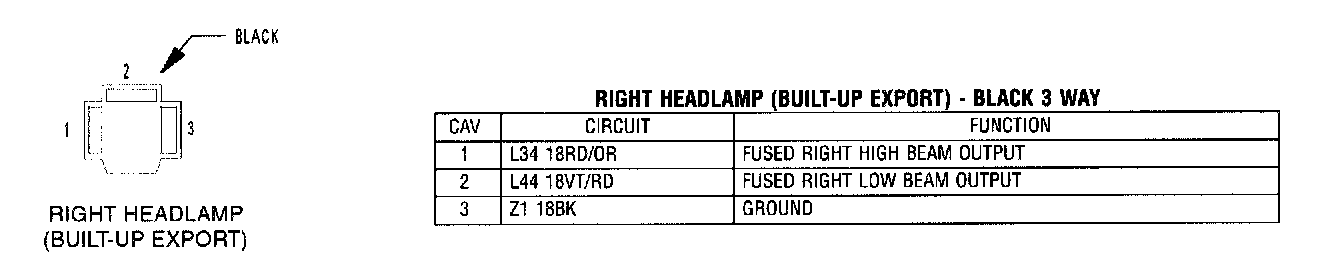

Right Headlamp (Built - Up Export):

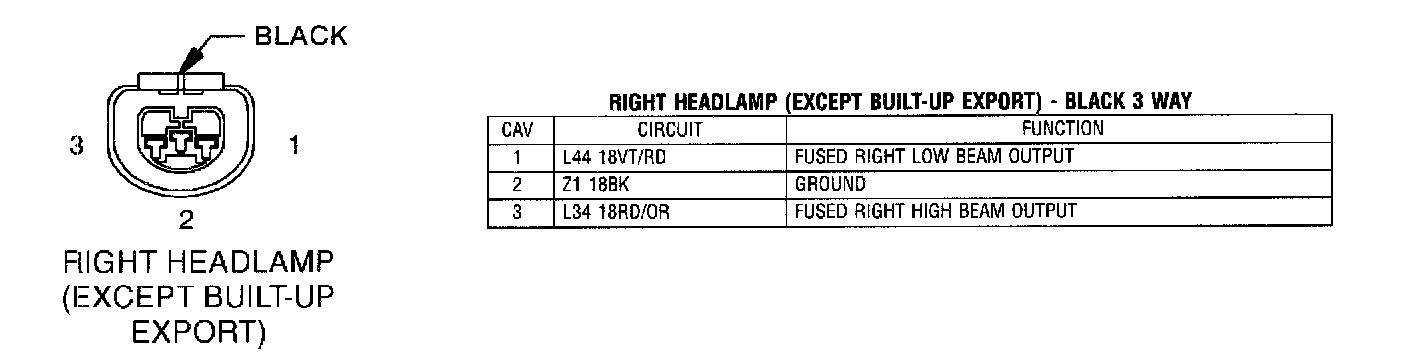

Right Headlamp (Except Built - Up Export):
