Home >> Chrysler >> 2000 >> Sebring Convertible V6-2.5L VIN H >> Repair and Diagnosis >> Locations >> Connector Locations >> Figure 9

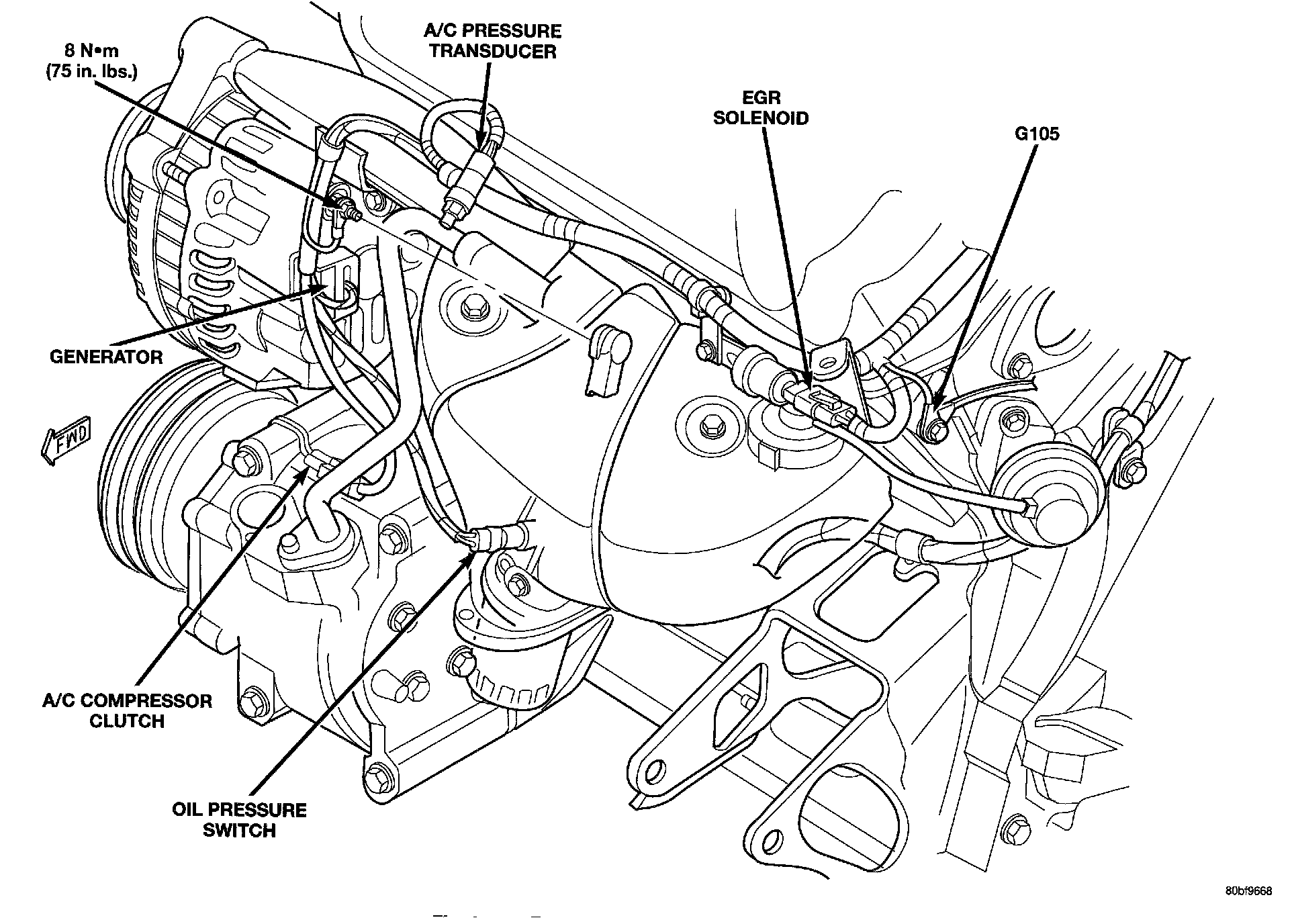

Figure 9

Engine Generator And A/C Compressor:
