Electric Fuel Pump

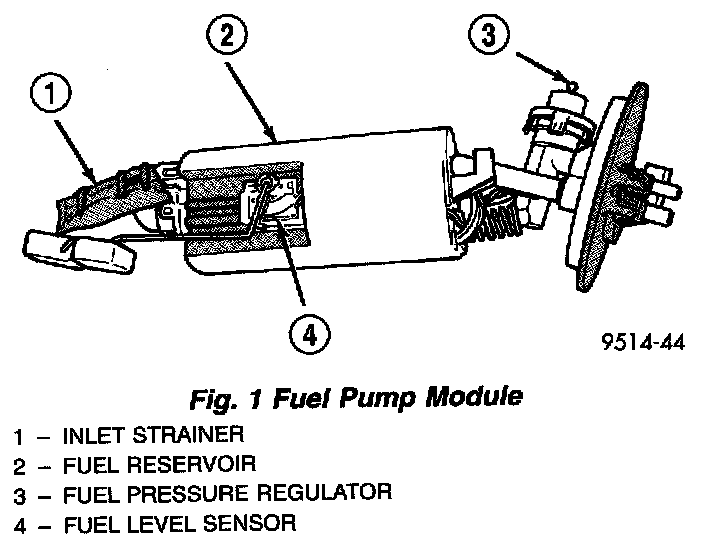

Fig.1 Fuel Pump Module:




The electric fuel pump is located in and is part of the fuel pump module.
