Antilock Brake System Component Specifications

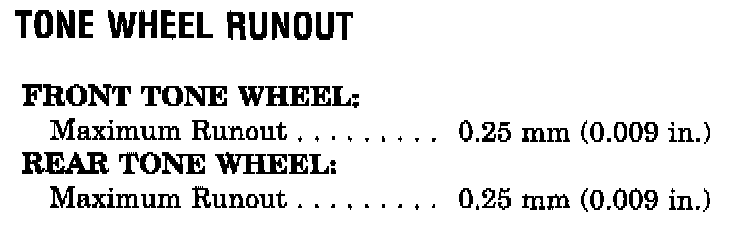

Tone Wheel Runout

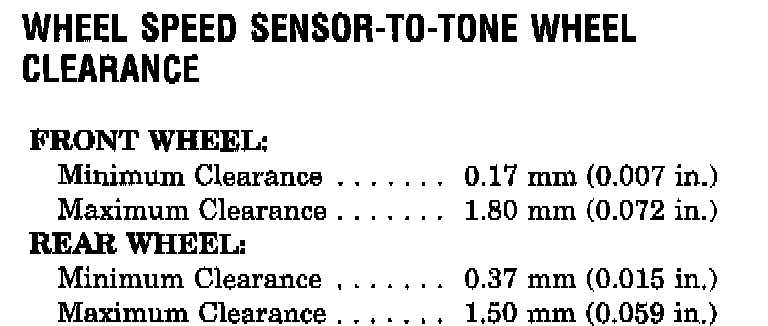

Wheel Speed Sensor-to-Tone Wheel Clearance

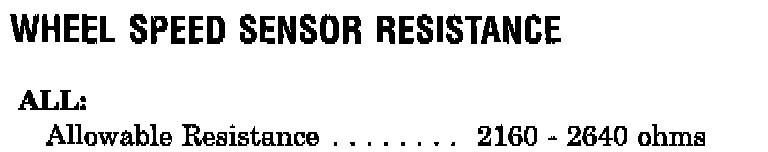

Wheel Speed Sensor Resistance
