Compact Disc Player (CD): Service and Repair

REMOVAL SERVICE POINT

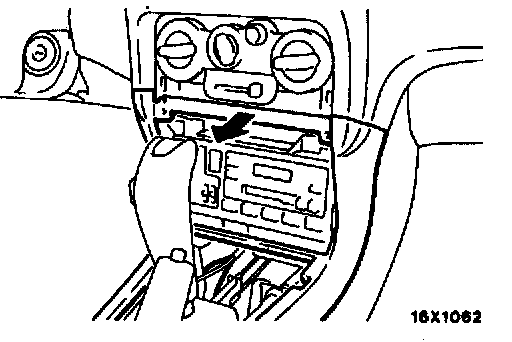

Radio Bracket Removal
Pull upper part of floor console assembly toward you slightly. Remove the radio bracket.

INSTALLATION

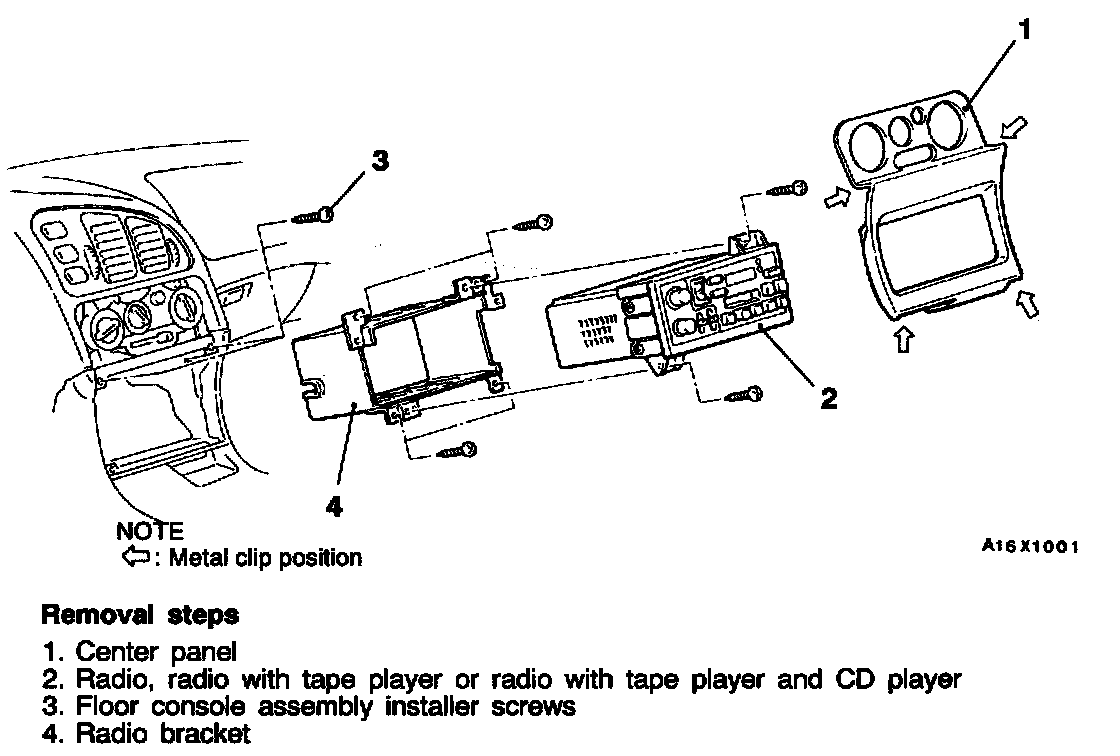

To install reverse the steps listed in the image.
