Vehicles Without Keyless Entry System

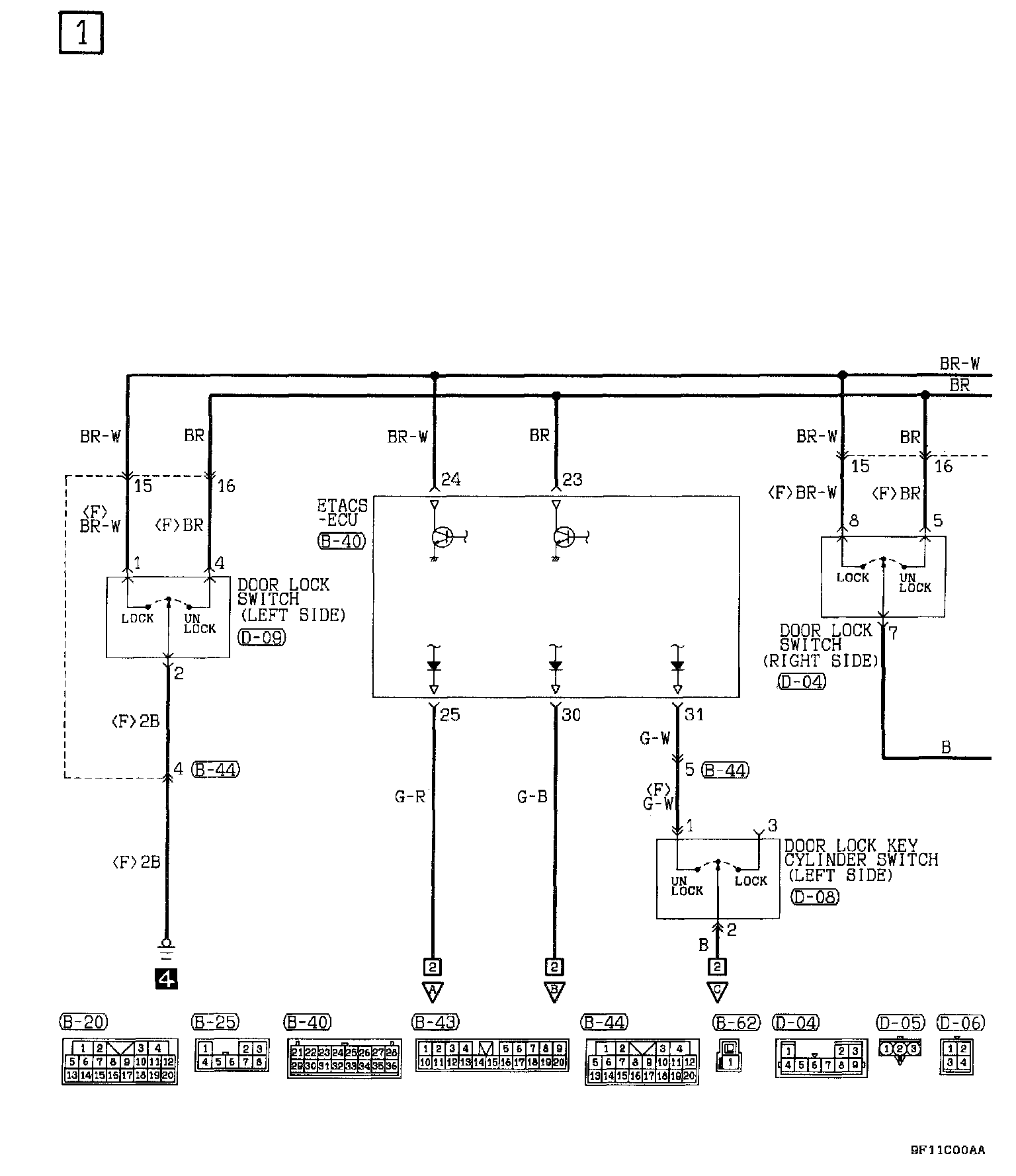

Central Door Locking System <Vehicles Without Keyless Entry System> (Part 1 Of 4):

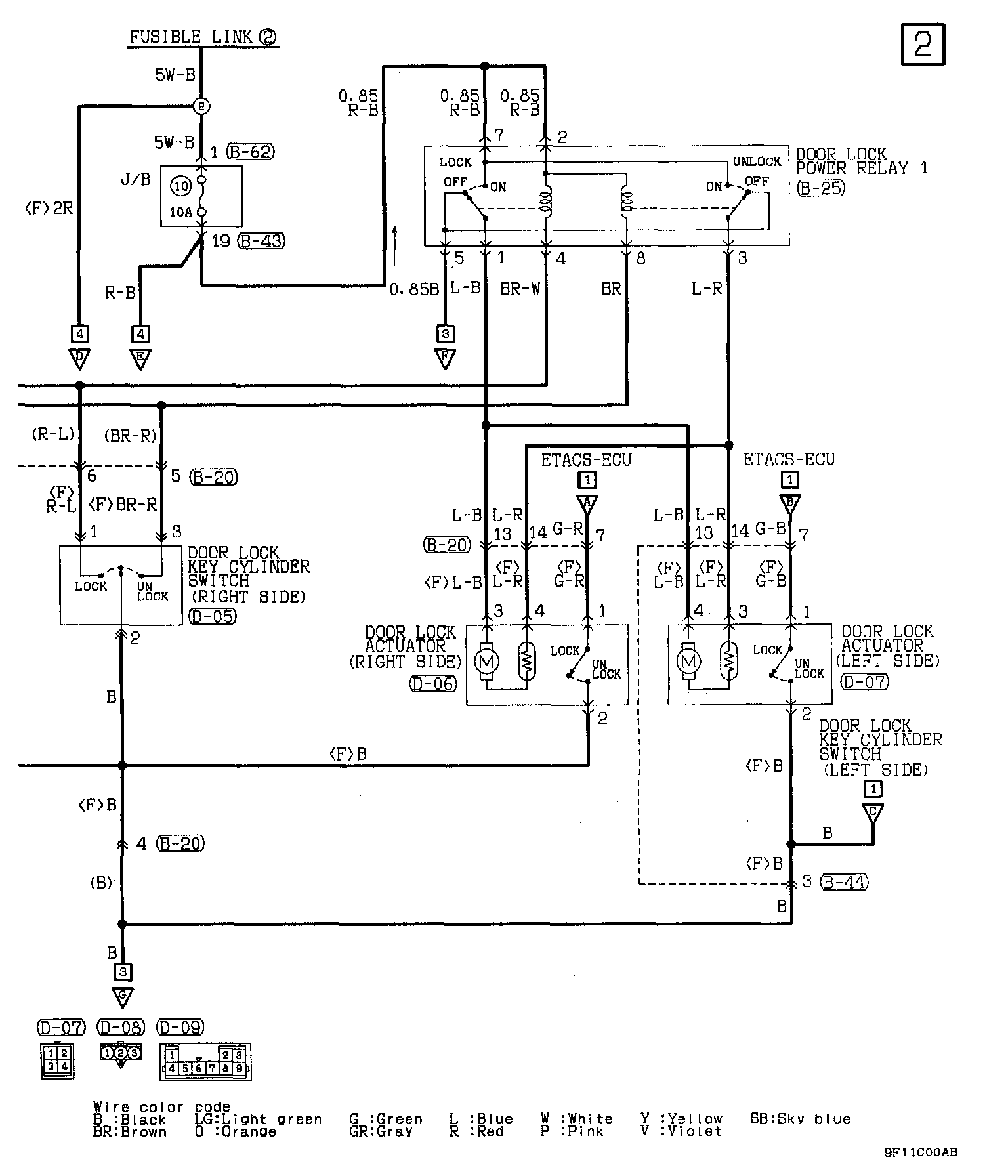

Central Door Locking System <Vehicles Without Keyless Entry System> (Part 2 Of 4):

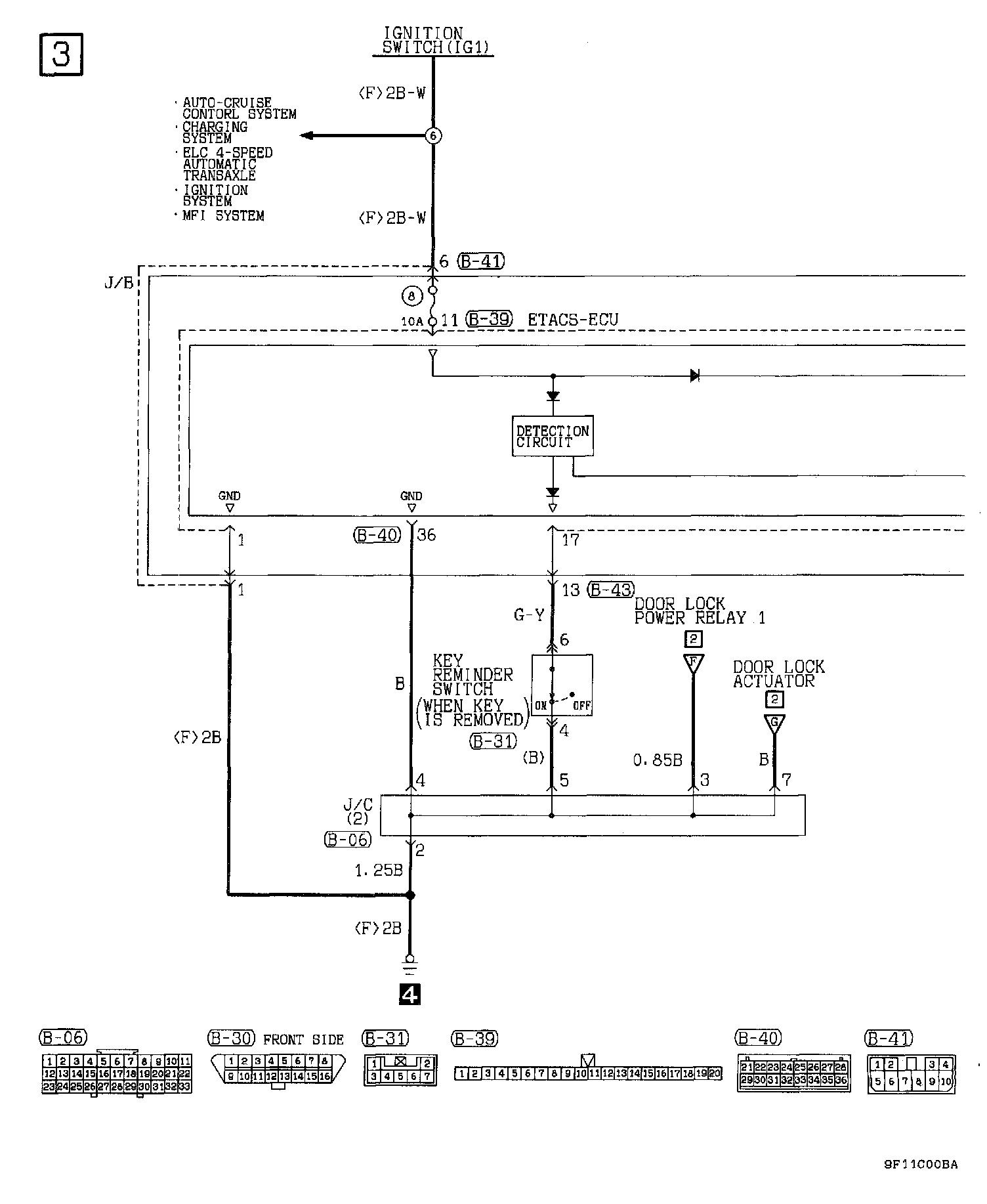

Central Door Locking System <Vehicles Without Keyless Entry System> (Part 3 Of 4):

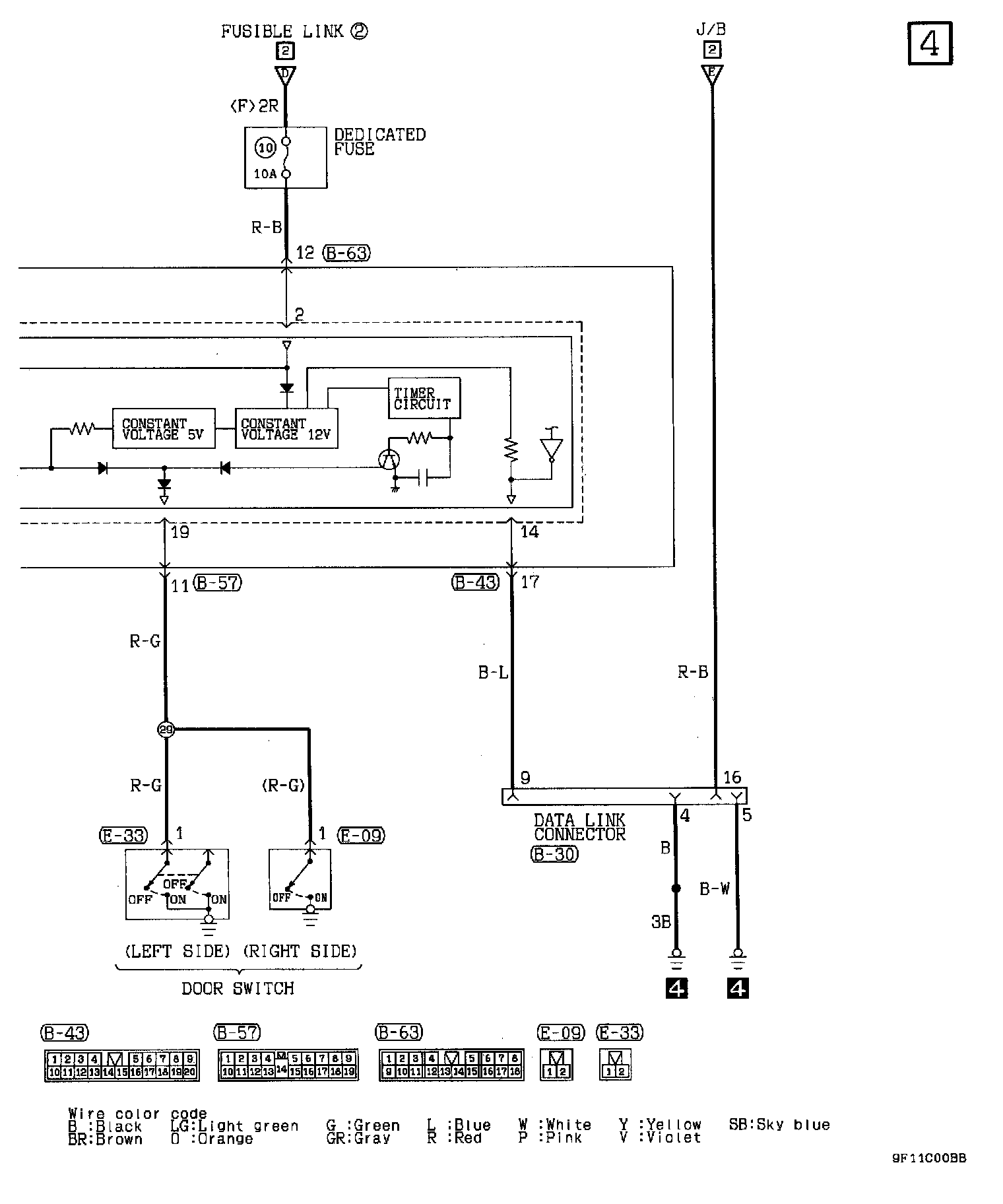

Central Door Locking System <Vehicles Without Keyless Entry System> (Part 4 Of 4):
