With ABS

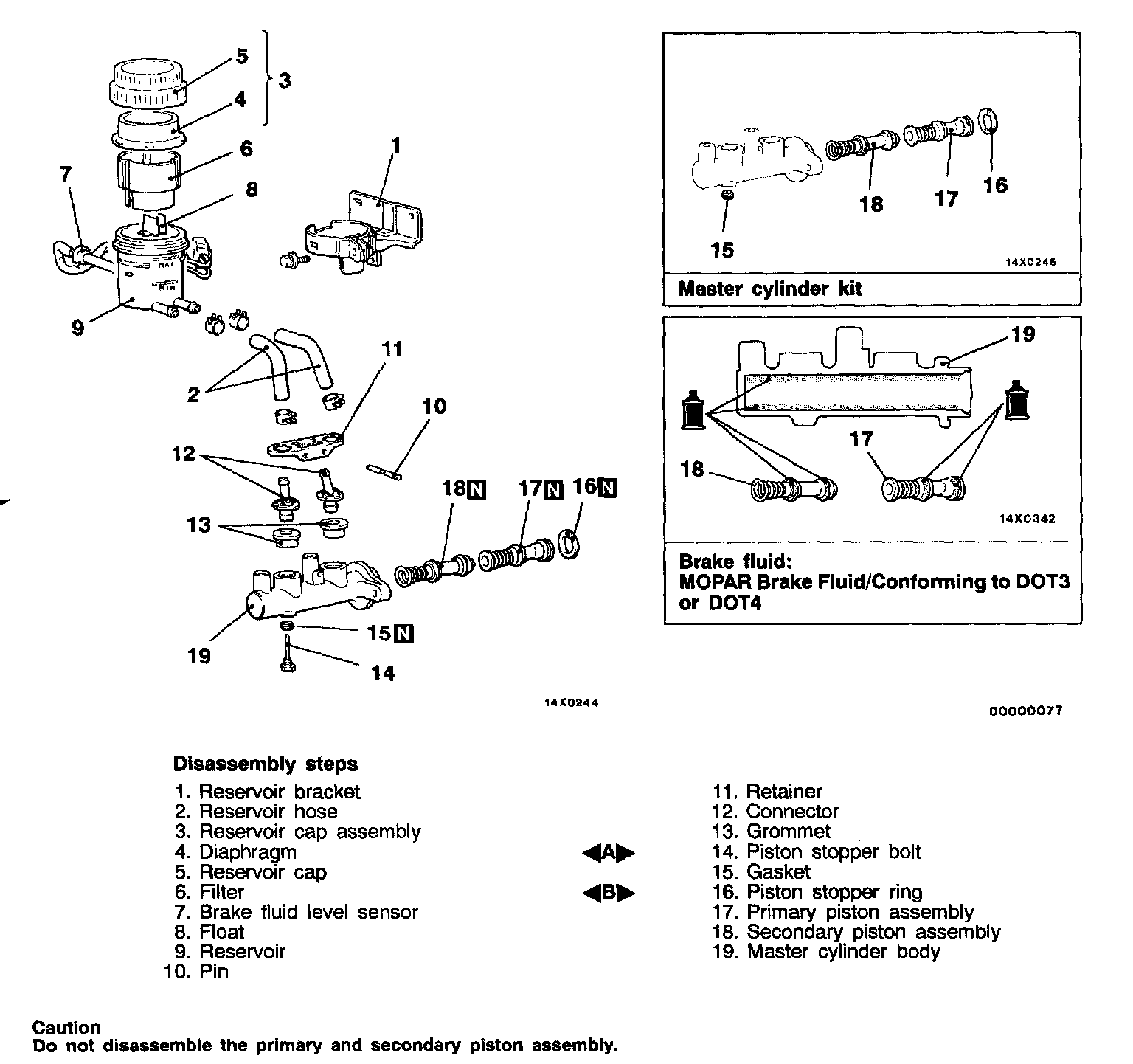

DISASSEMBLY AND REASSEMBLY
DISASSEMBLY SERVICE POINTS

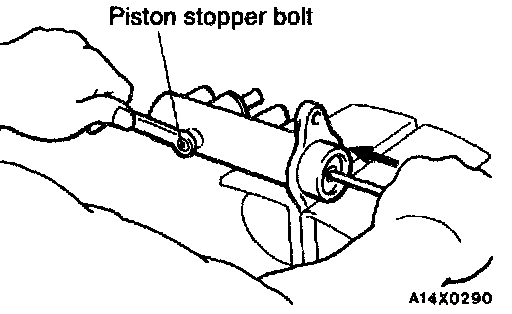

Piston Stopper Bolt Disassembly
Remove the piston stopper bolt, while depressing the piston.
Piston Stopper Ring Disassembly
Remove the piston stopper ring, while depressing the piston.
INSPECTION
- Check the inner surface of master cylinder body for corrosion or pitting.
- Check the primary and secondary pistons for corrosion, scoring, damage or wear.
- Check the diaphragm for cracks and wear.
