Without ABS

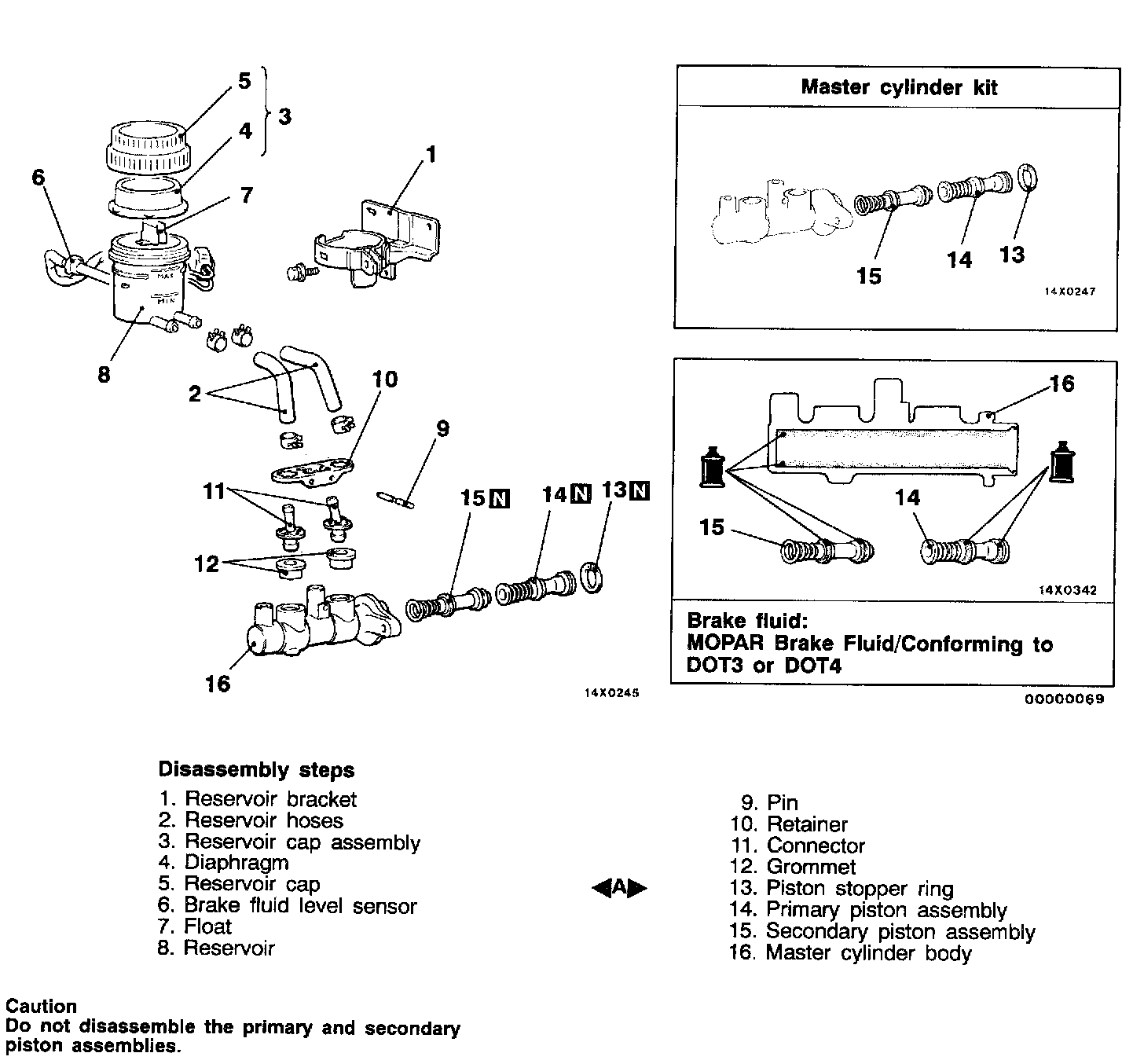

DISASSEMBLY AND REASSEMBLY

CAUTION Do not disassemble the primary and secondary piston assemblies.


DISASSEMBLY SERVICE POINT

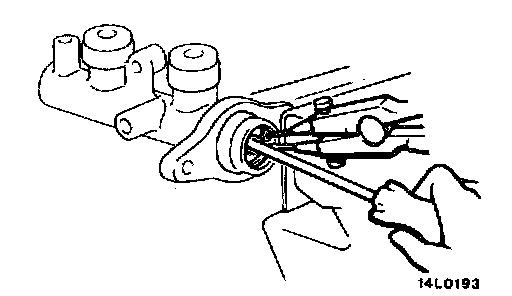

Piston Stopper Ring Disassembly

Remove the piston stopper ring, while depressing the piston.

INSPECTION
^ Check the inner surface of master cylinder body for rust or pitting.
^ Check the primary and secondary pistons for rust, scoring, wear, damage or wear.
^ Check the diaphragm for cracks and wear.
