Without Antilock Brakes

>A

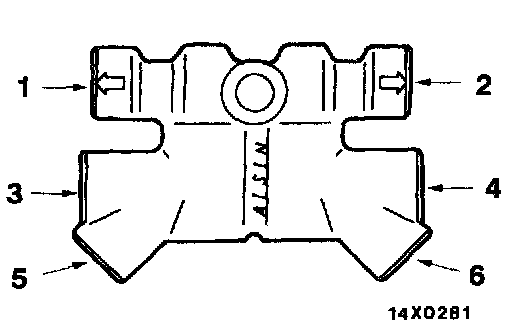

Connect the pipes to the hydraulic unit as shown in the illustration.
1. To rear brake (L.H.)
2. To rear brake (R.H.)
3. To front brake (R.H.)
4. To front brake (L.H.)
5. From master cylinder (secondary)
6. From master cylinder (primary)
