Electrical Diagrams

Auto-Cruise Control System

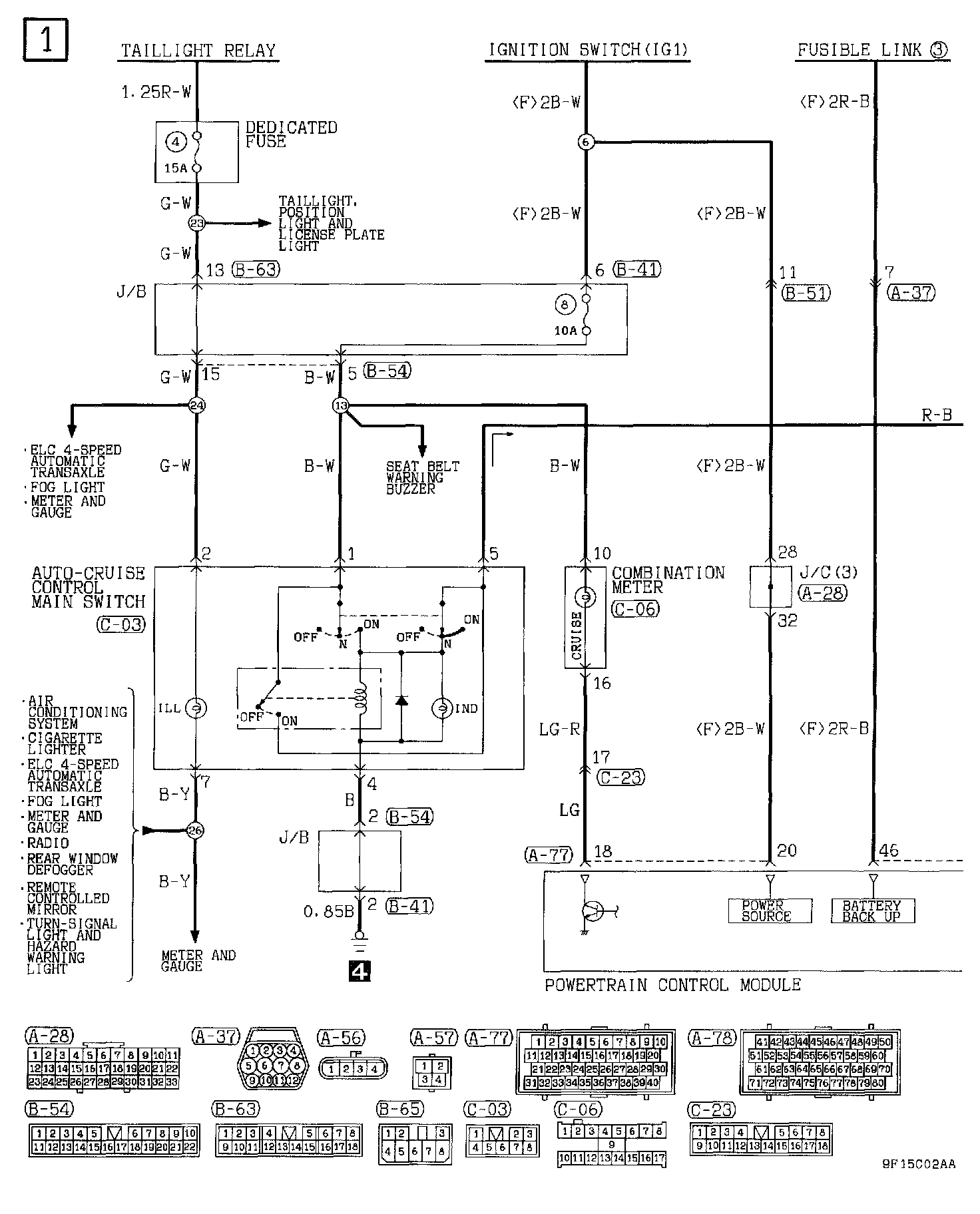

Auto-Cruise Control System (Part 1 of 4):

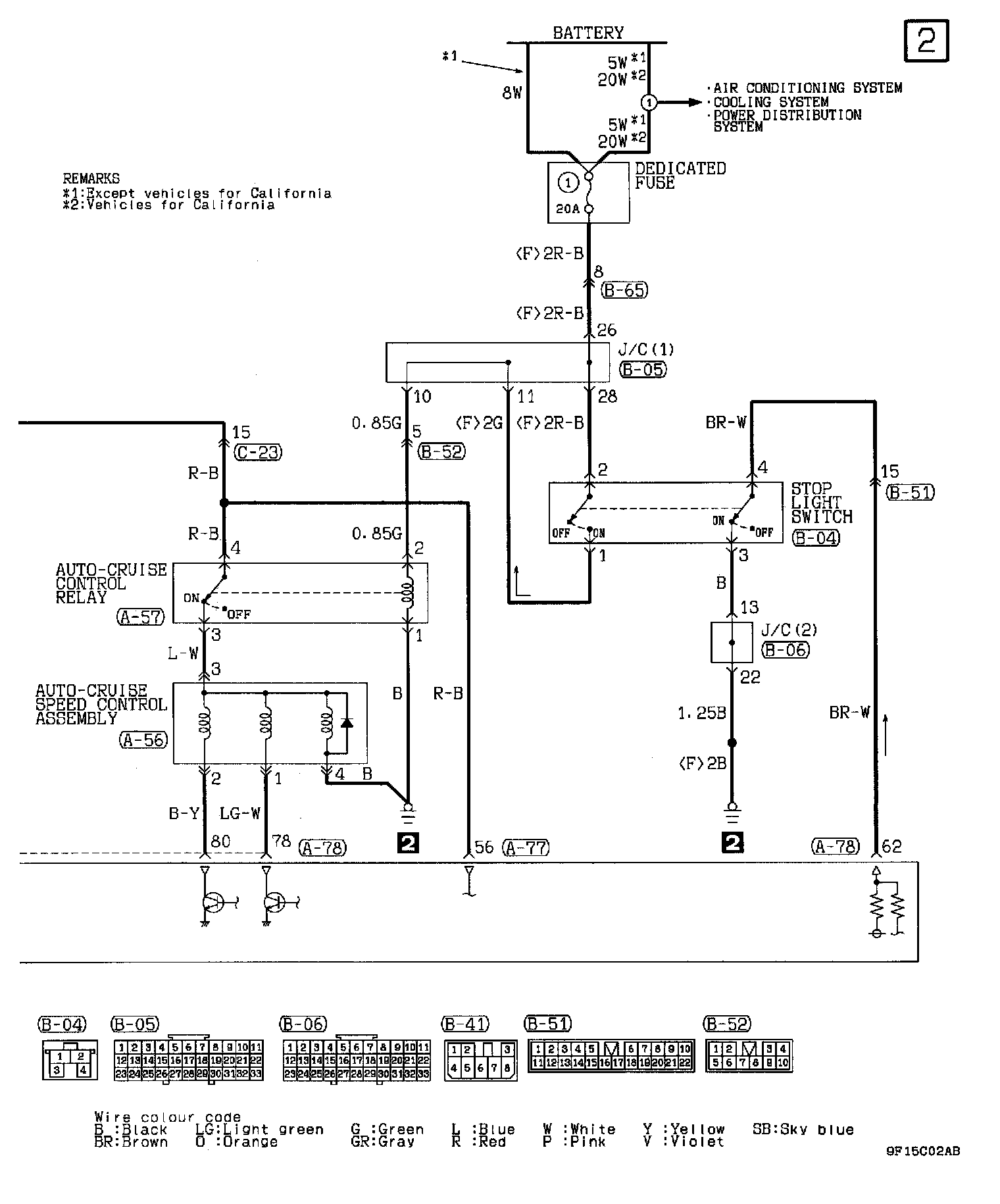

Auto-Cruise Control System (Part 2 of 4):

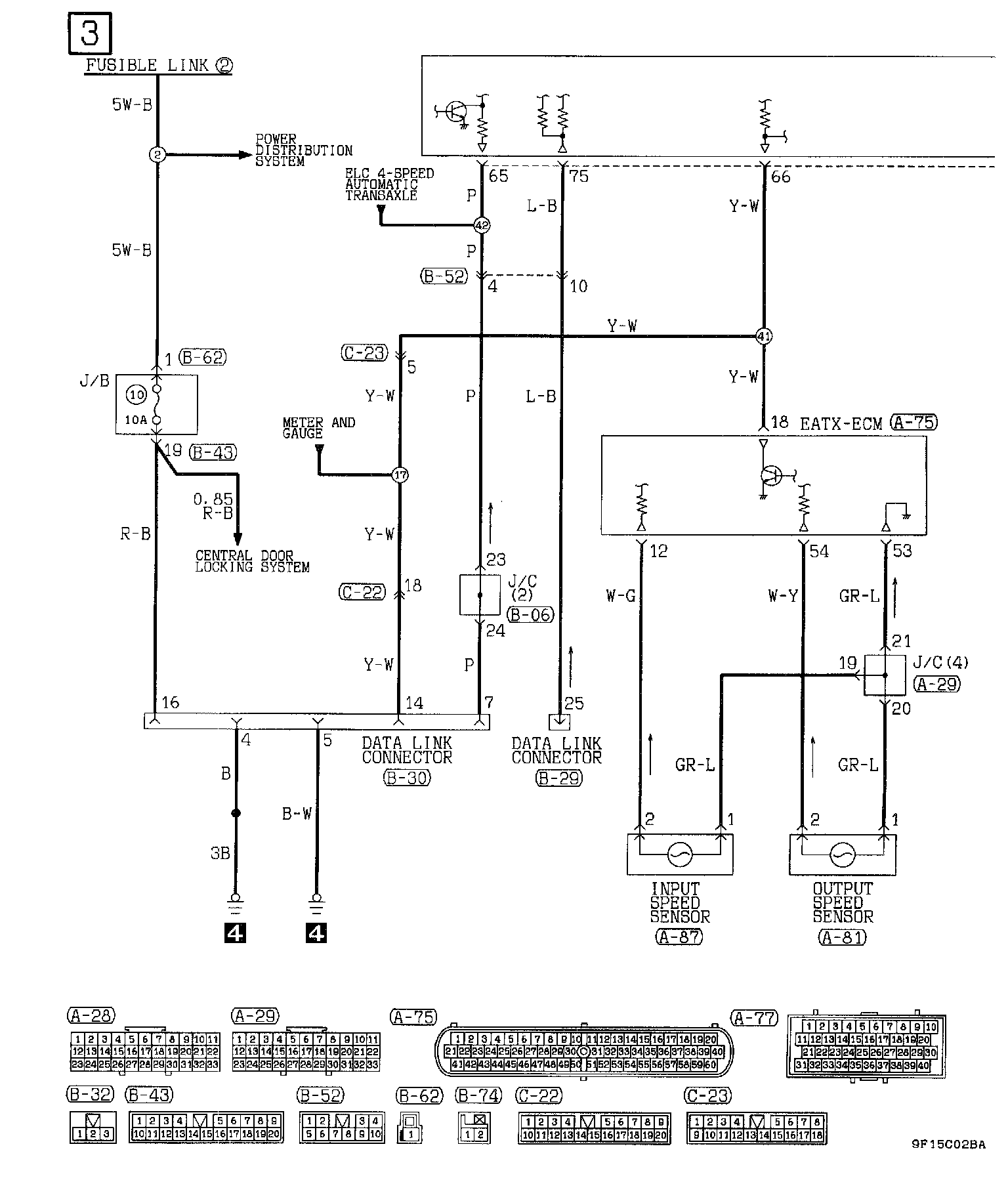

Auto-Cruise Control System (Part 3 of 4):

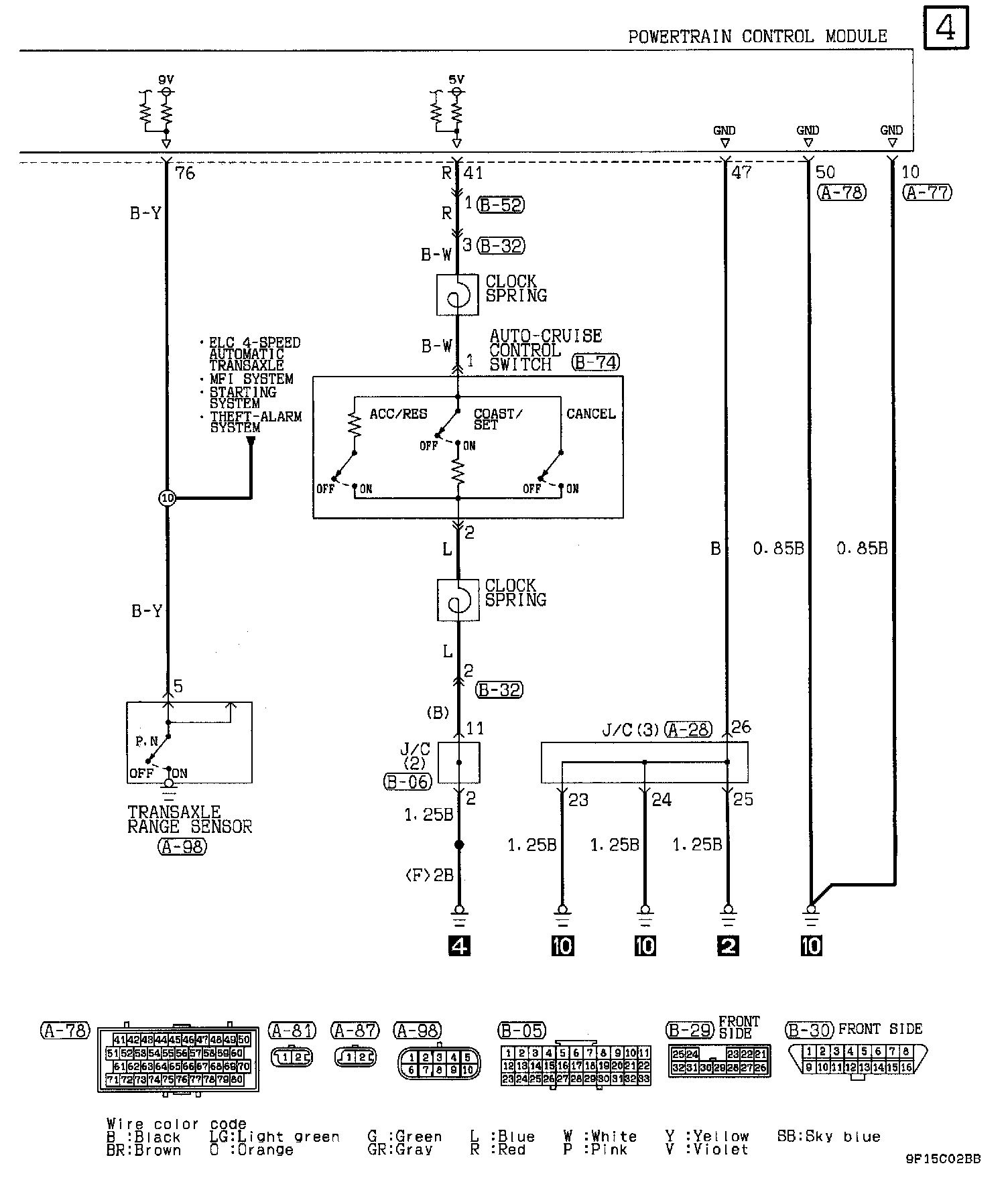

Auto-Cruise Control System (Part 4 Of 4):
