Diesel Data
: Automotive Repair
Home
>>
Chrysler
>>
2000
>>
Sebring V6-2.5L VIN N
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>

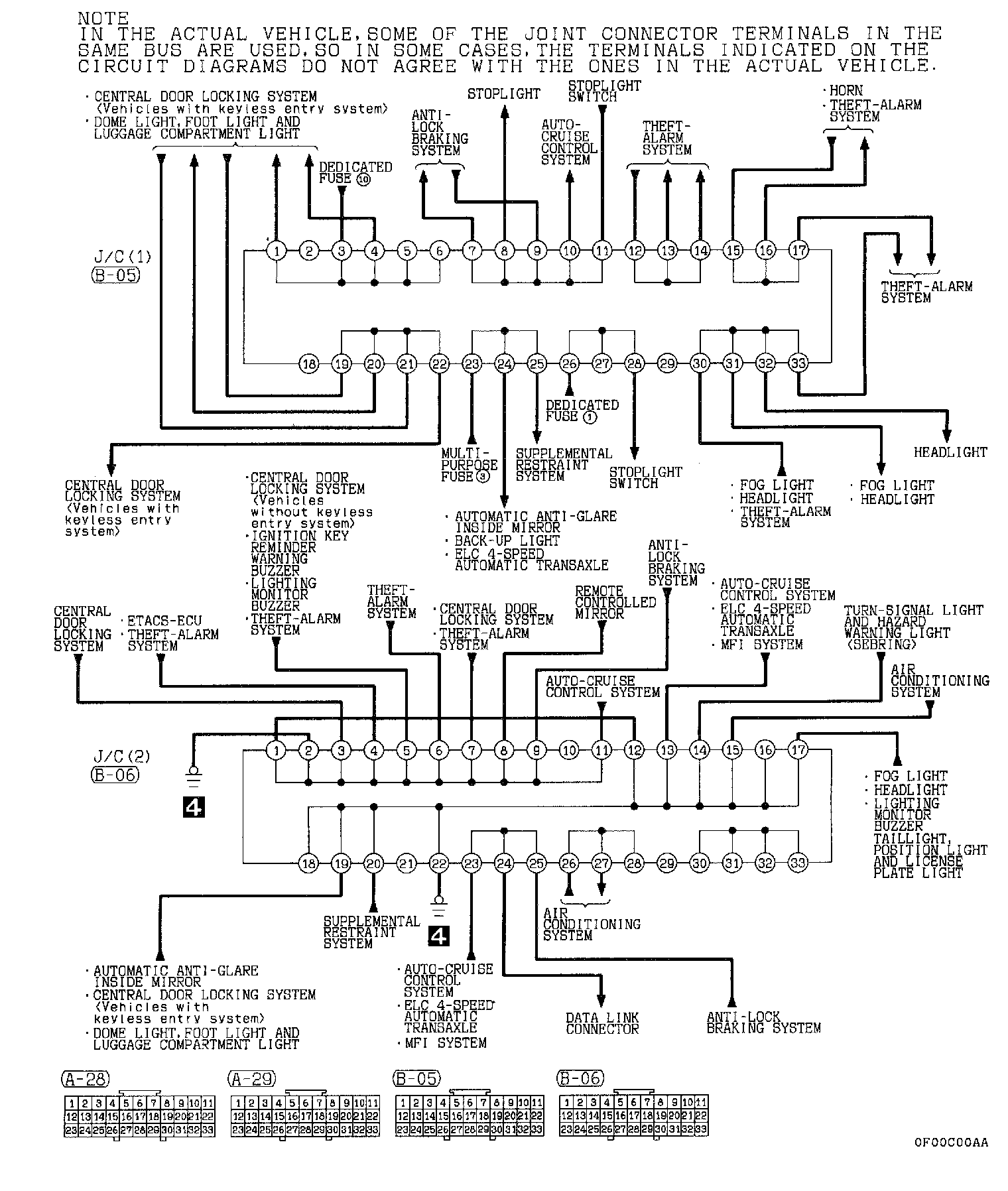

Multiple Junction Connector
Multiple Junction Connector

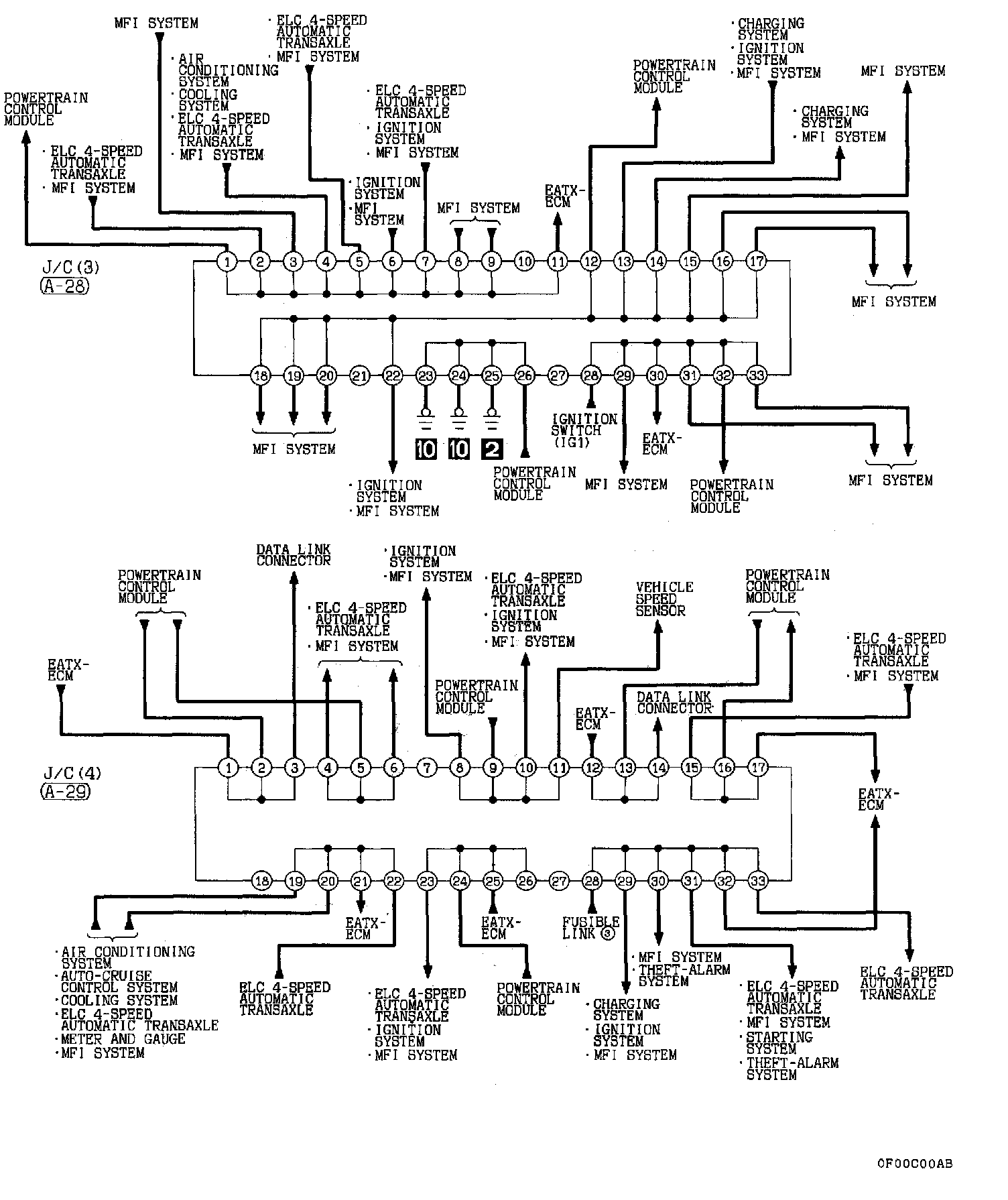

Joint Connector (J/C):
Joint Connector (J/C):
