B Connector - Engine and Transaxle
B Connector - Engine and Transaxle

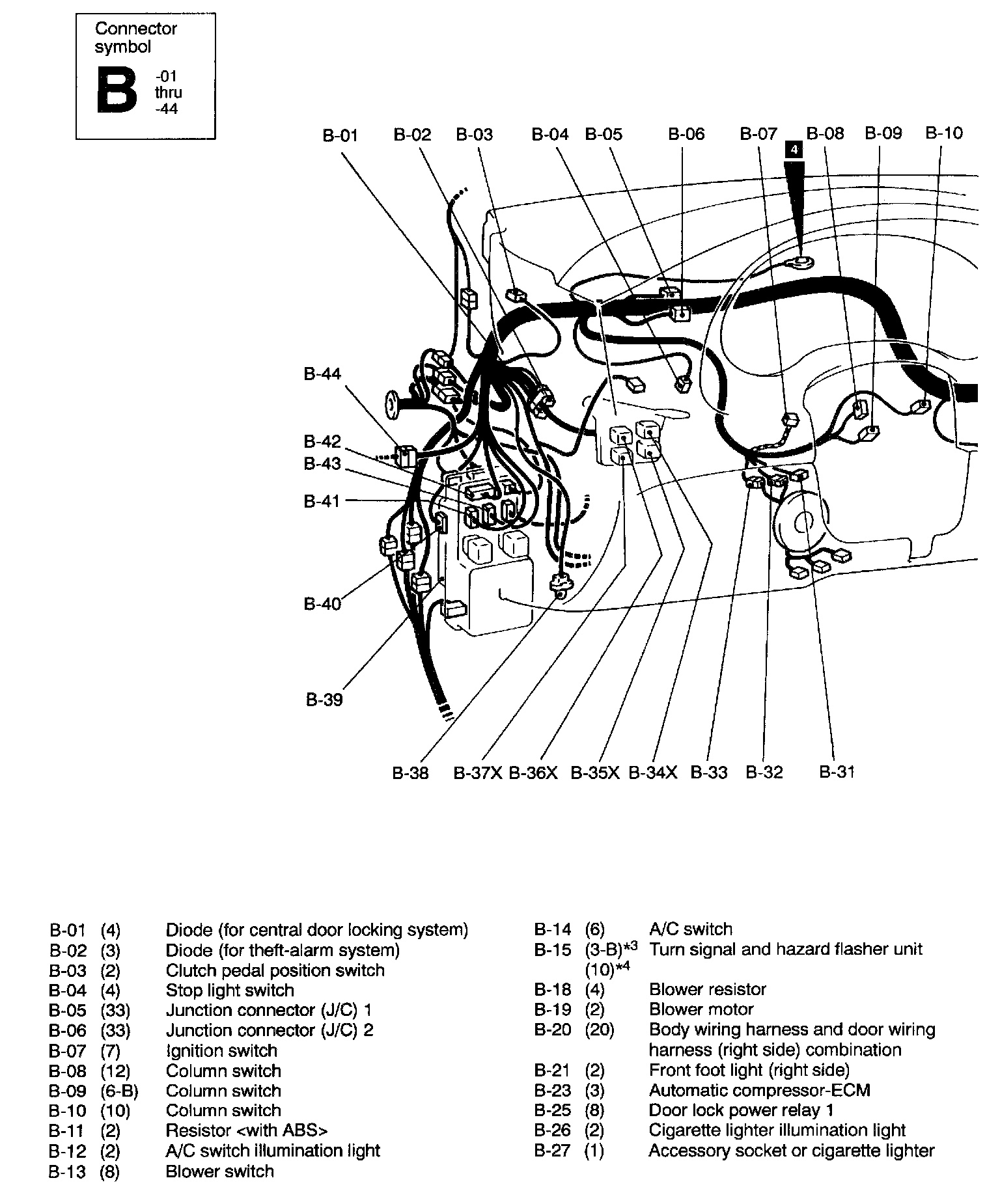

Dash Panel - B Connectors (01 - 27):

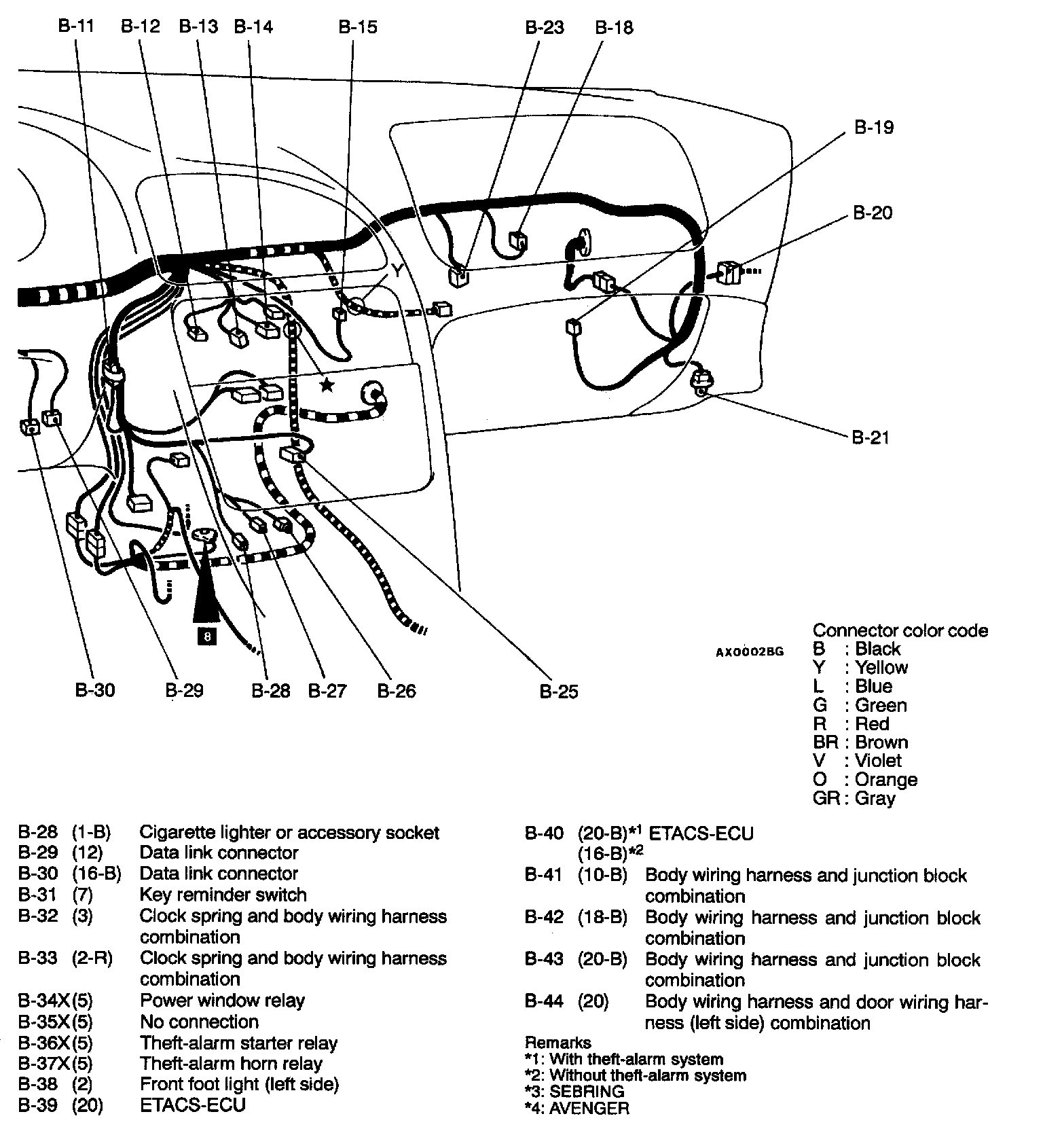

Dash Panel - B Connectors (28 - 44):

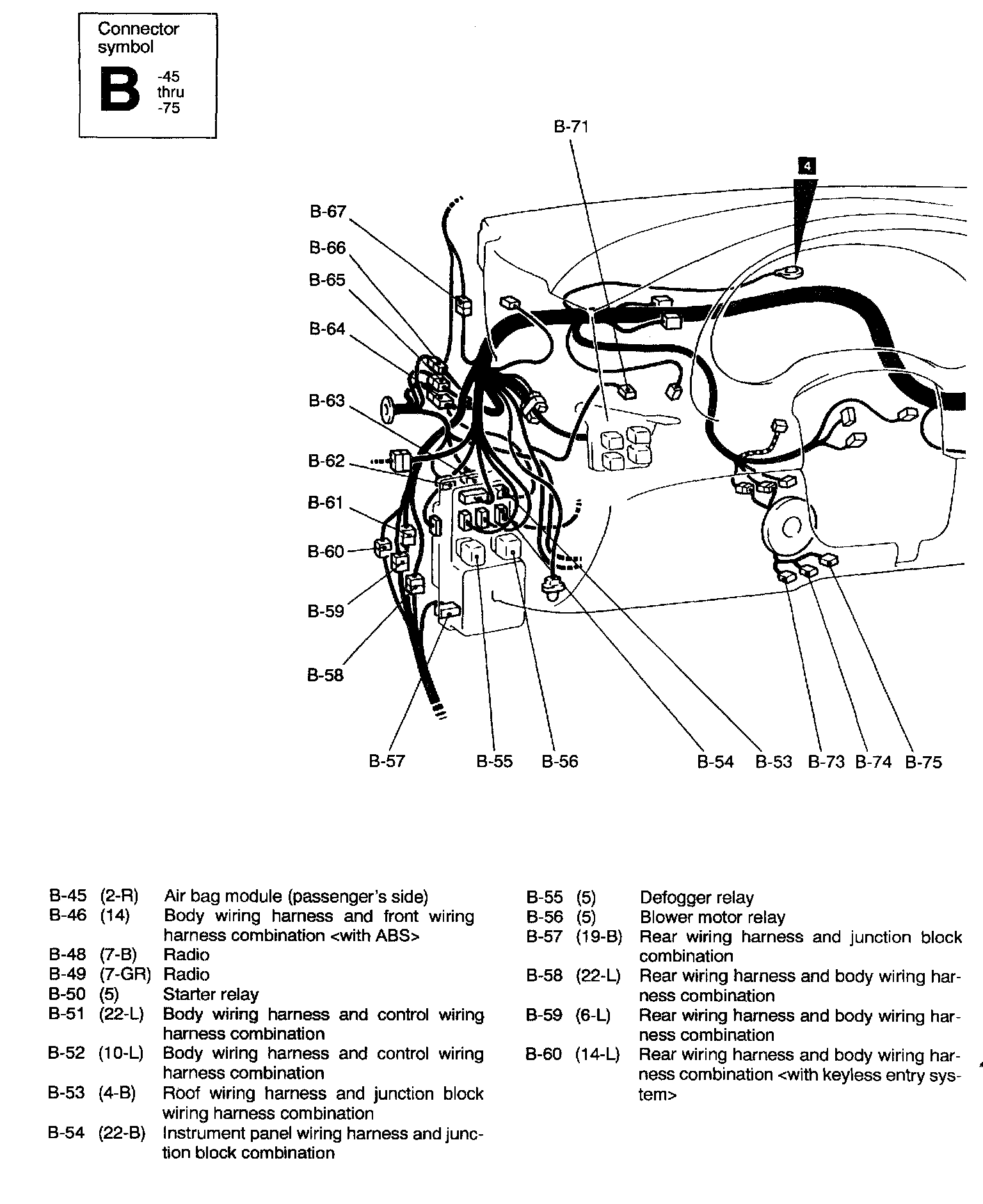

Dash Panel - B Connectors (45 - 60):

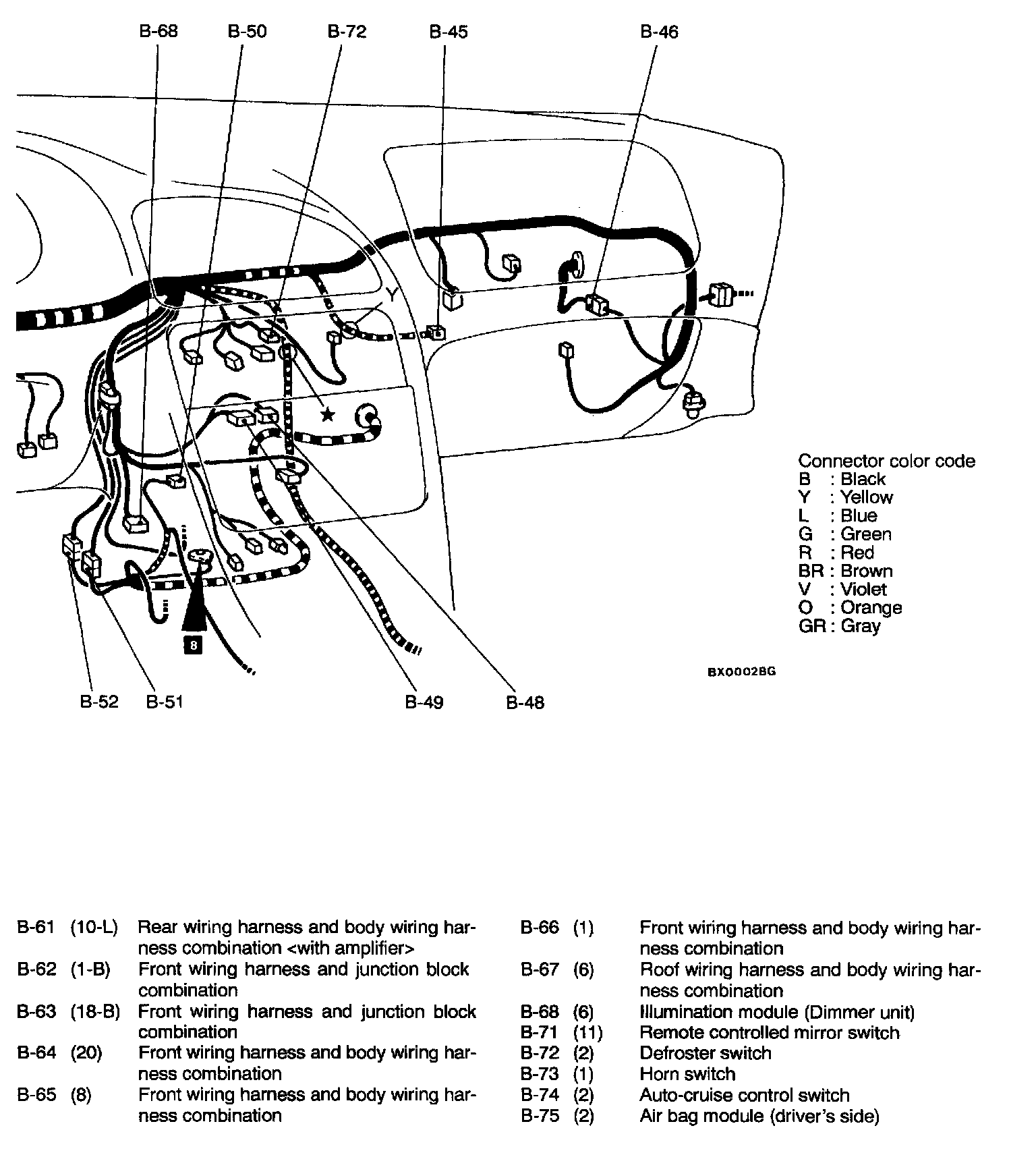

Dash Panel - B Connectors (61 - 75):
