Home
>>
Chrysler
>>
2000
>>
Sebring V6-2.5L VIN N
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Charging System
Charging System

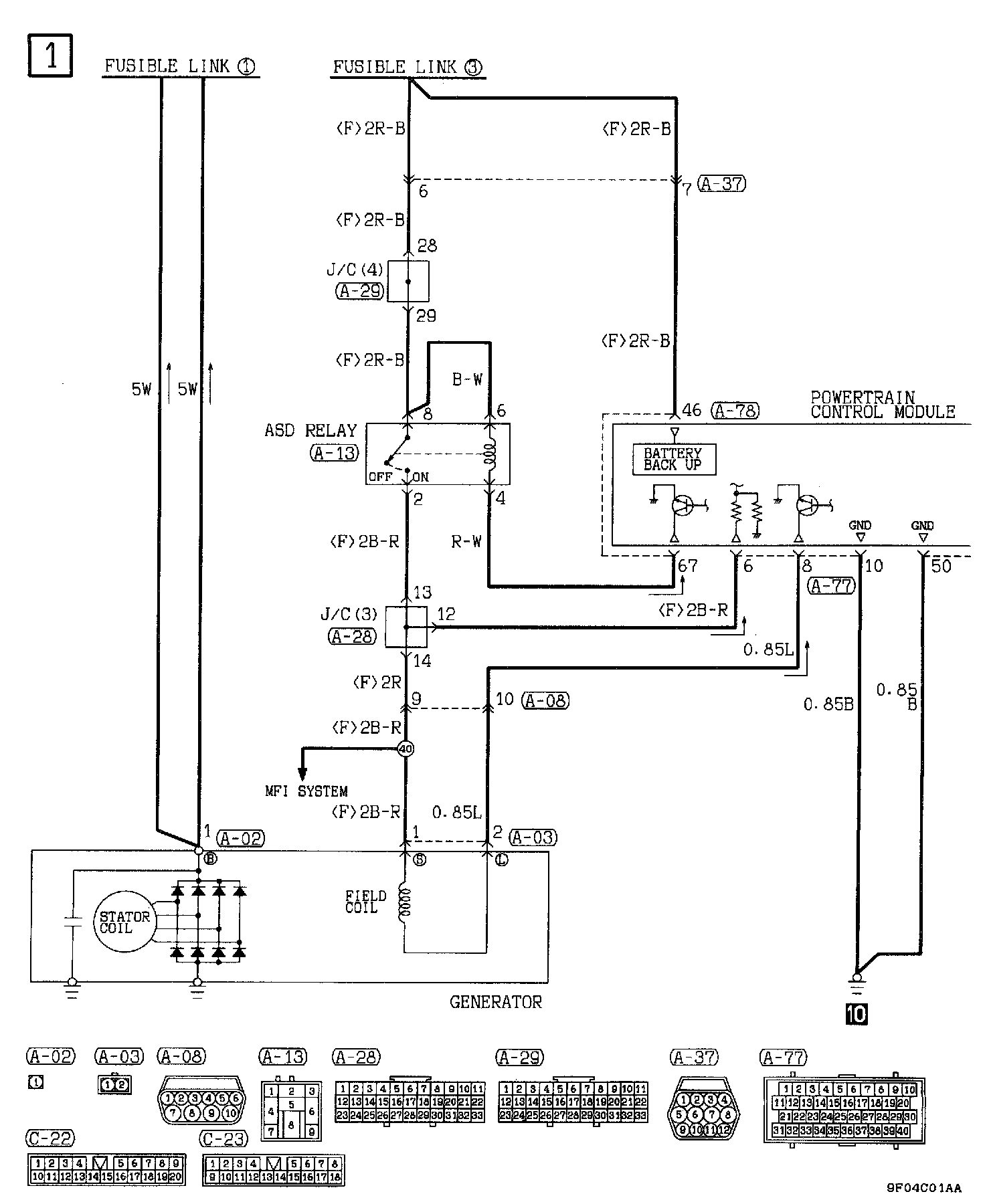

Charging System (Part 1 Of 2):

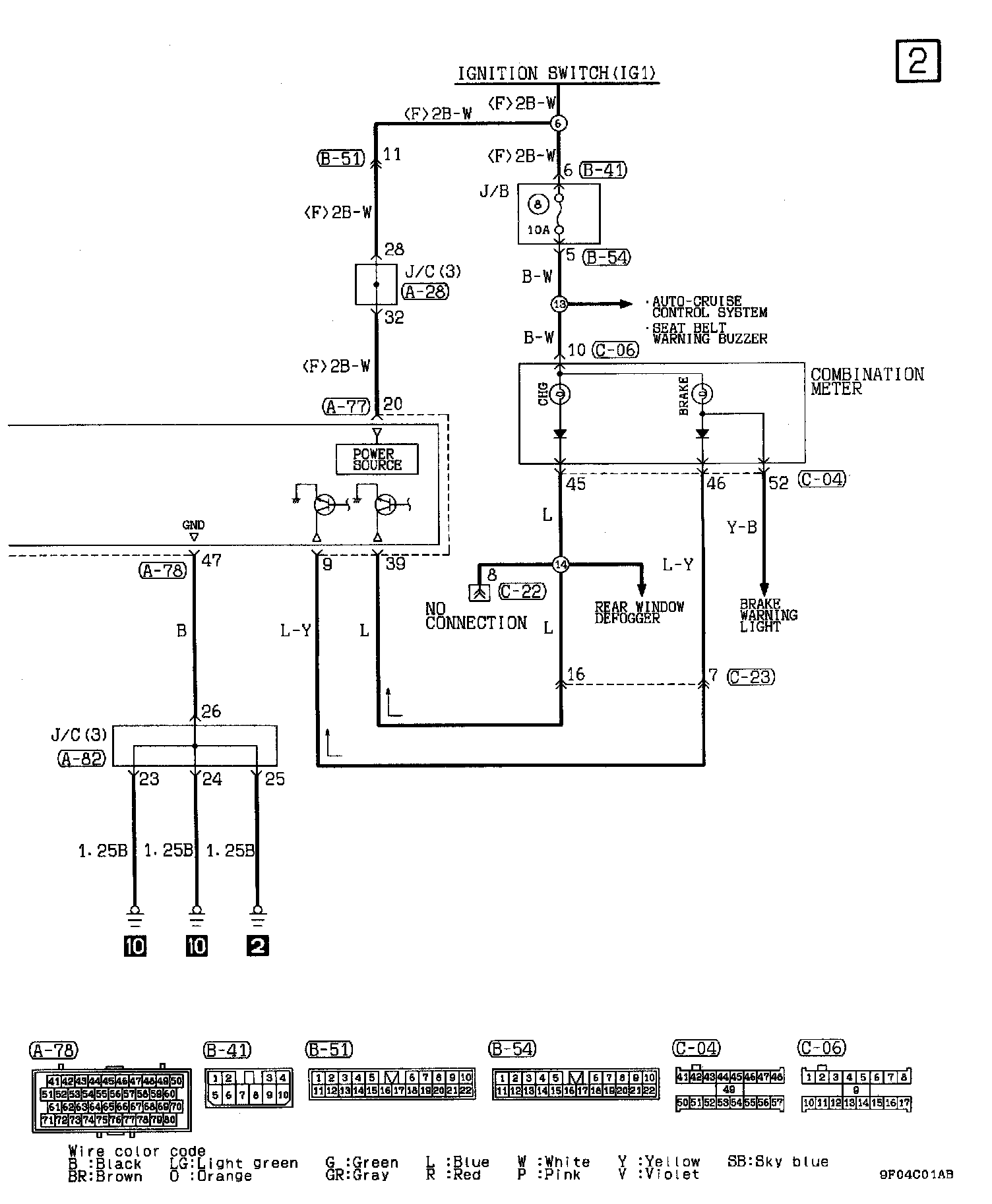

Charging System (Part 2 Of 2):
