Diesel Data
: Automotive Repair
Home
>>
Chrysler
>>
2000
>>
Sebring V6-2.5L VIN N
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Instrument Panel, Gauges and Warning Indicators
>>
Seat Belt Reminder Buzzer

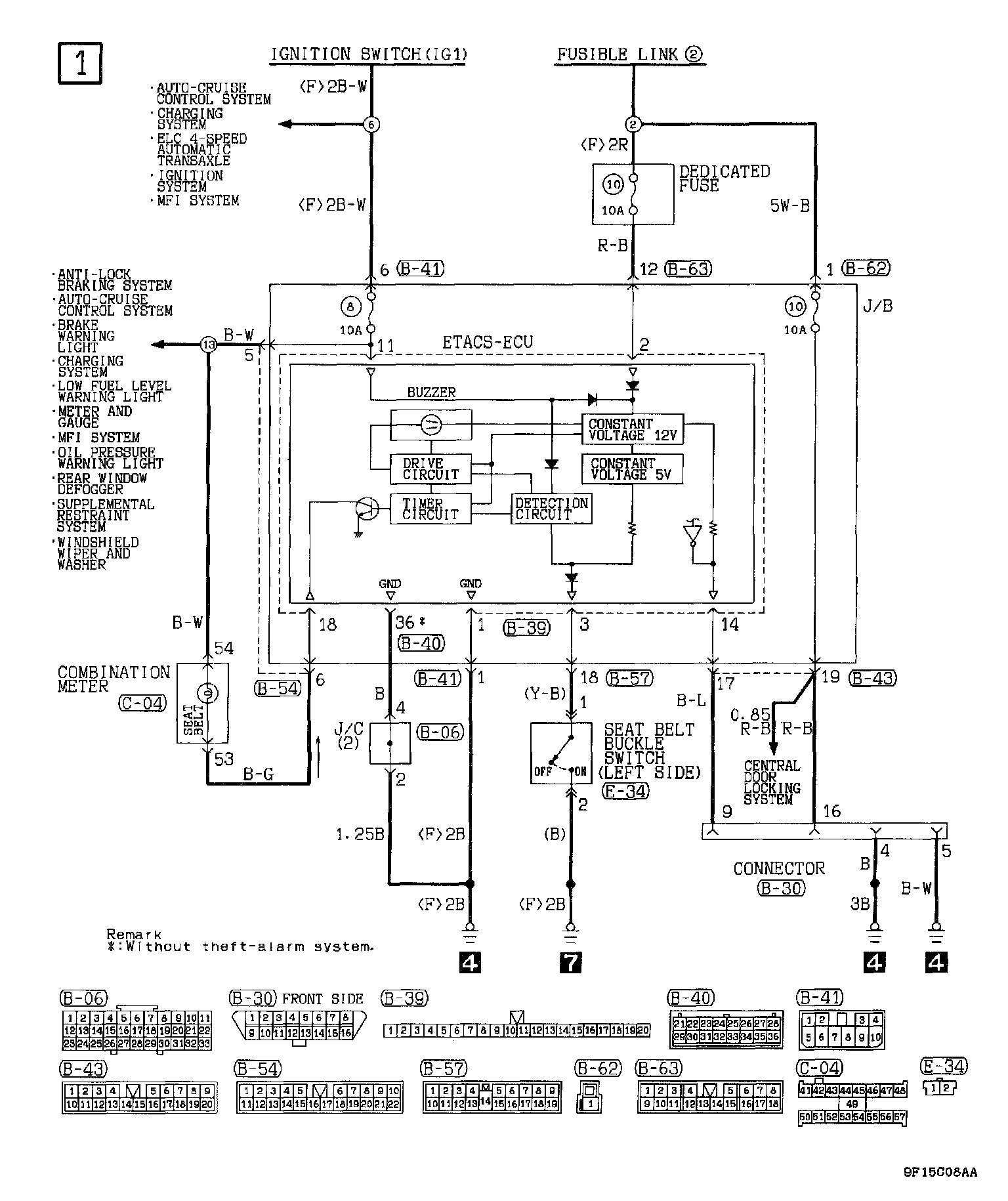

Seat Belt Reminder Buzzer
Seat Belt Warning Buzzer:
