System Diagram

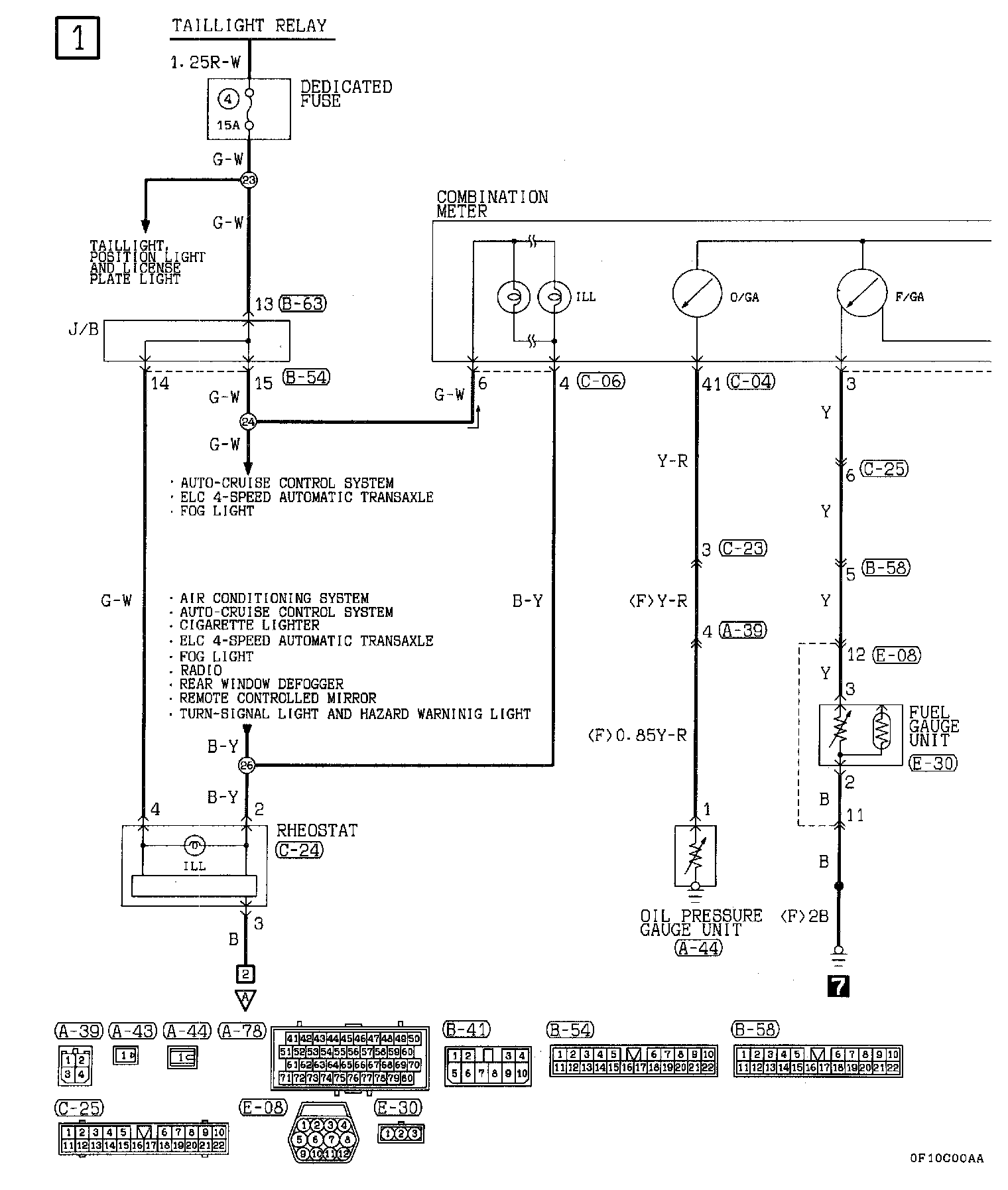

Meter And Gauge (Part 1 Of 4):

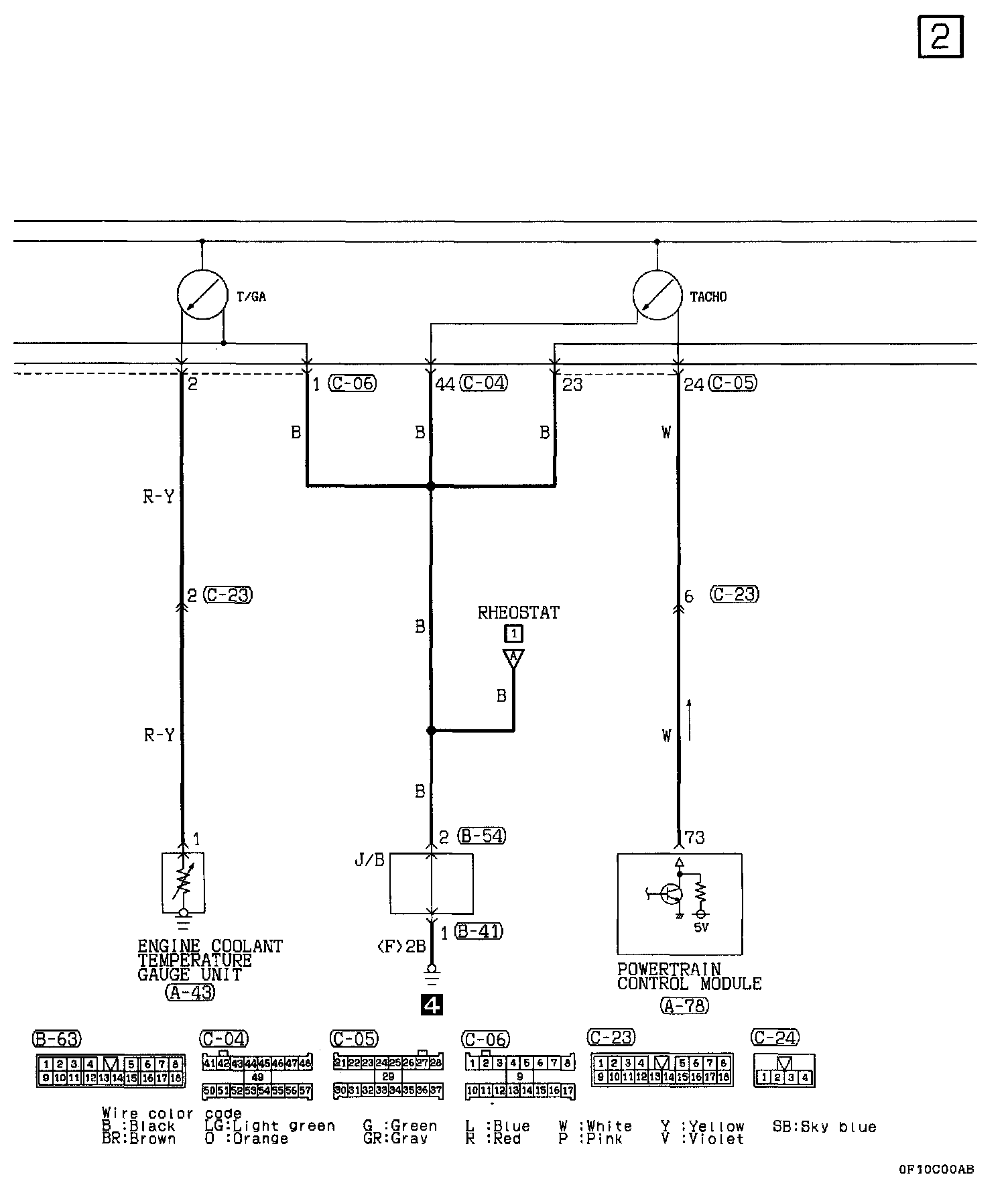

Meter And Gauge (Part 2 Of 4):

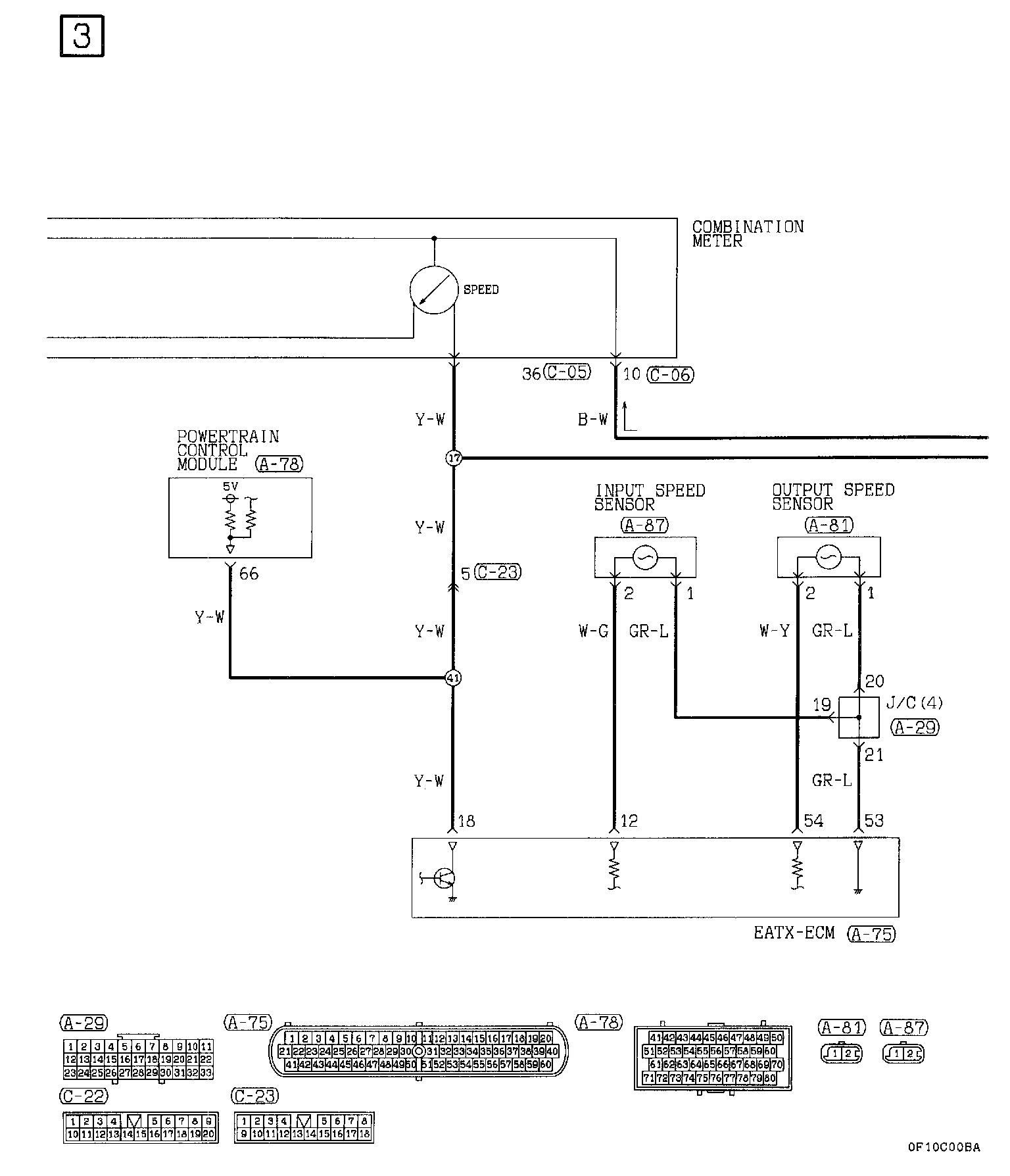

Meter And Gauge (Part 3 Of 4):

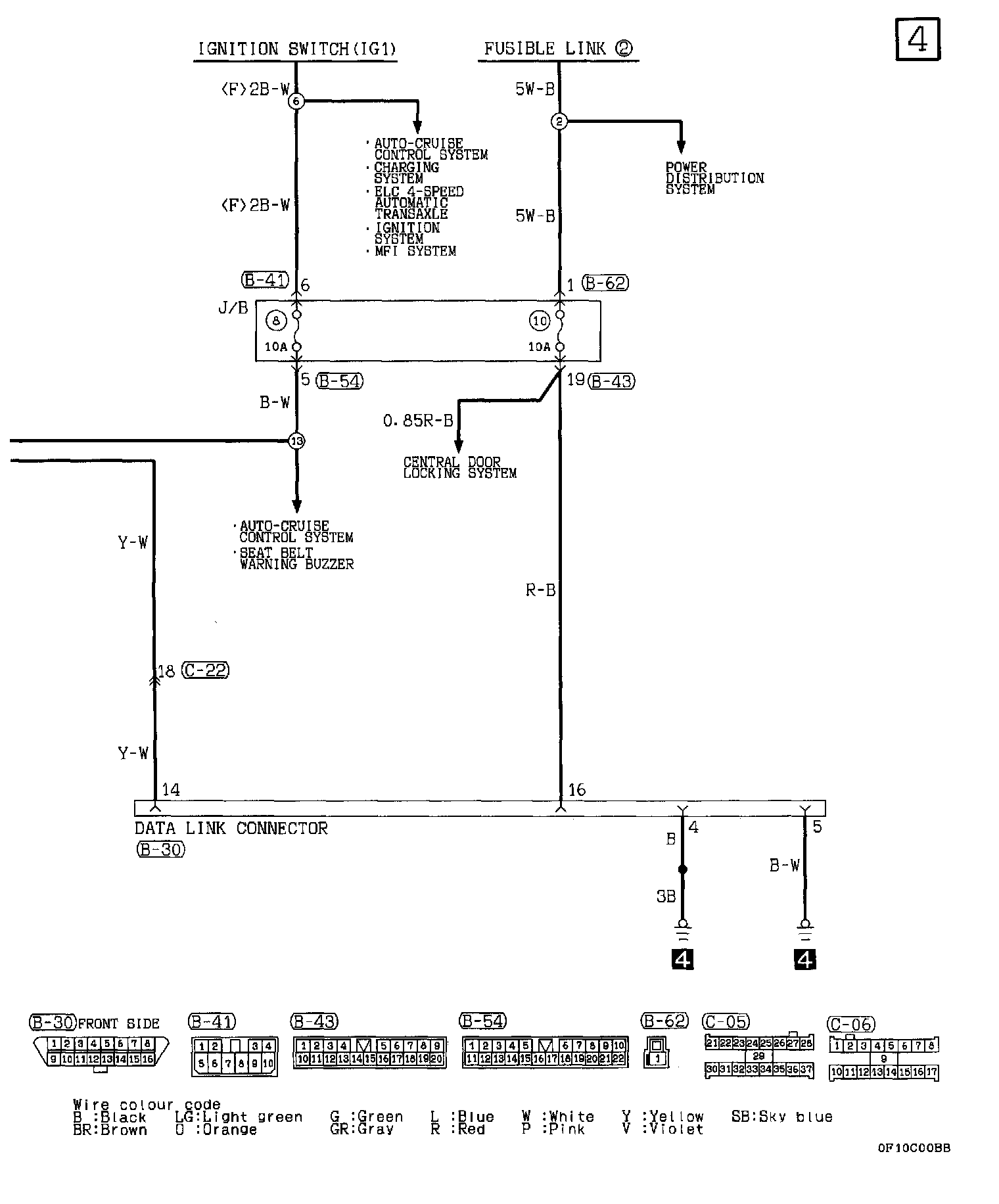

Meter And Gauge (Part 4 Of 4):
