Sebring V6-2.5L VIN N
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Tail Lamp
Tail Lamp

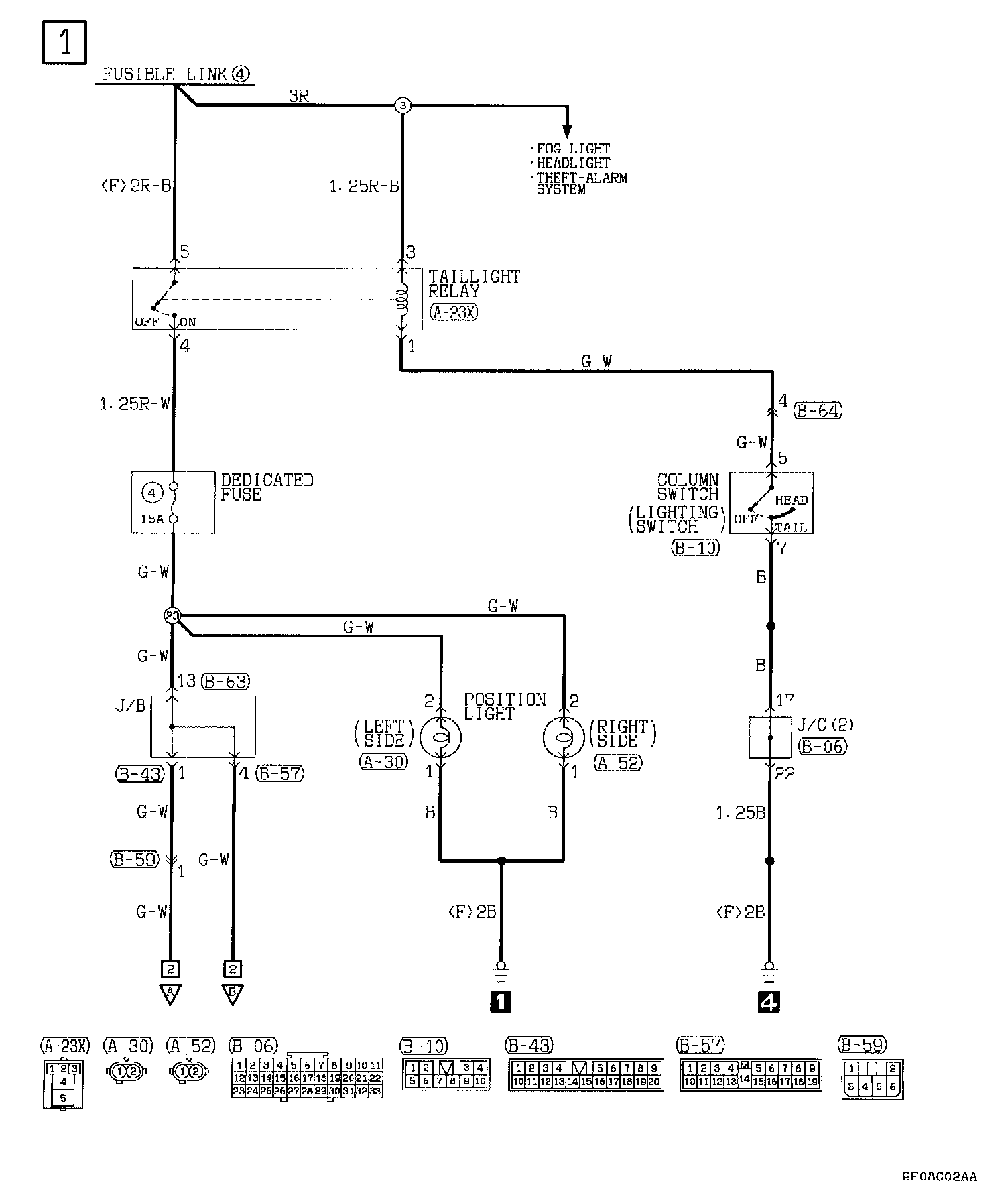

Taillight, Position Light And License Plate Light (Part 1 Of 2):

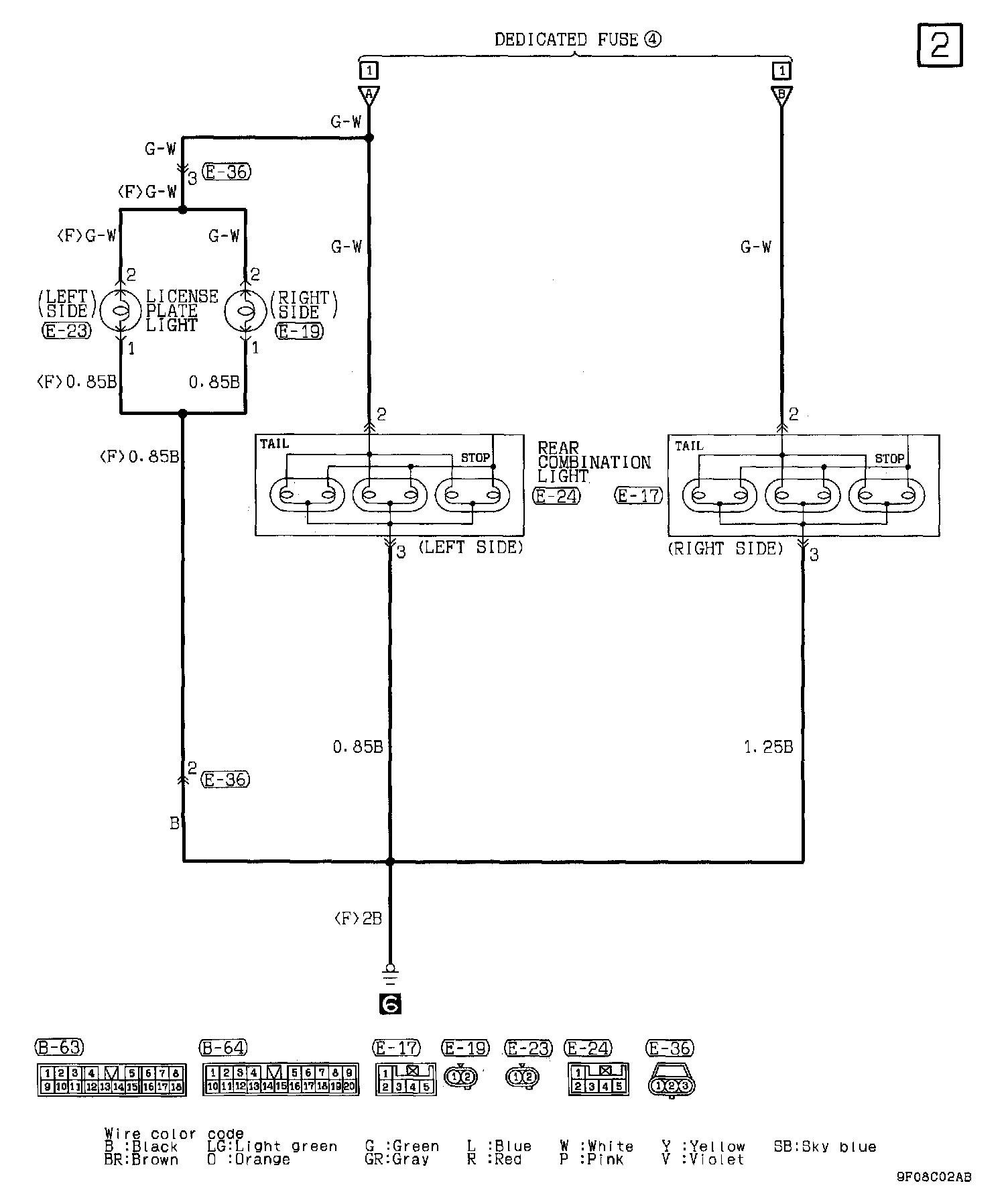

Taillight, Position Light And License Plate Light (Part 2 Of 2):
