Turn Signals

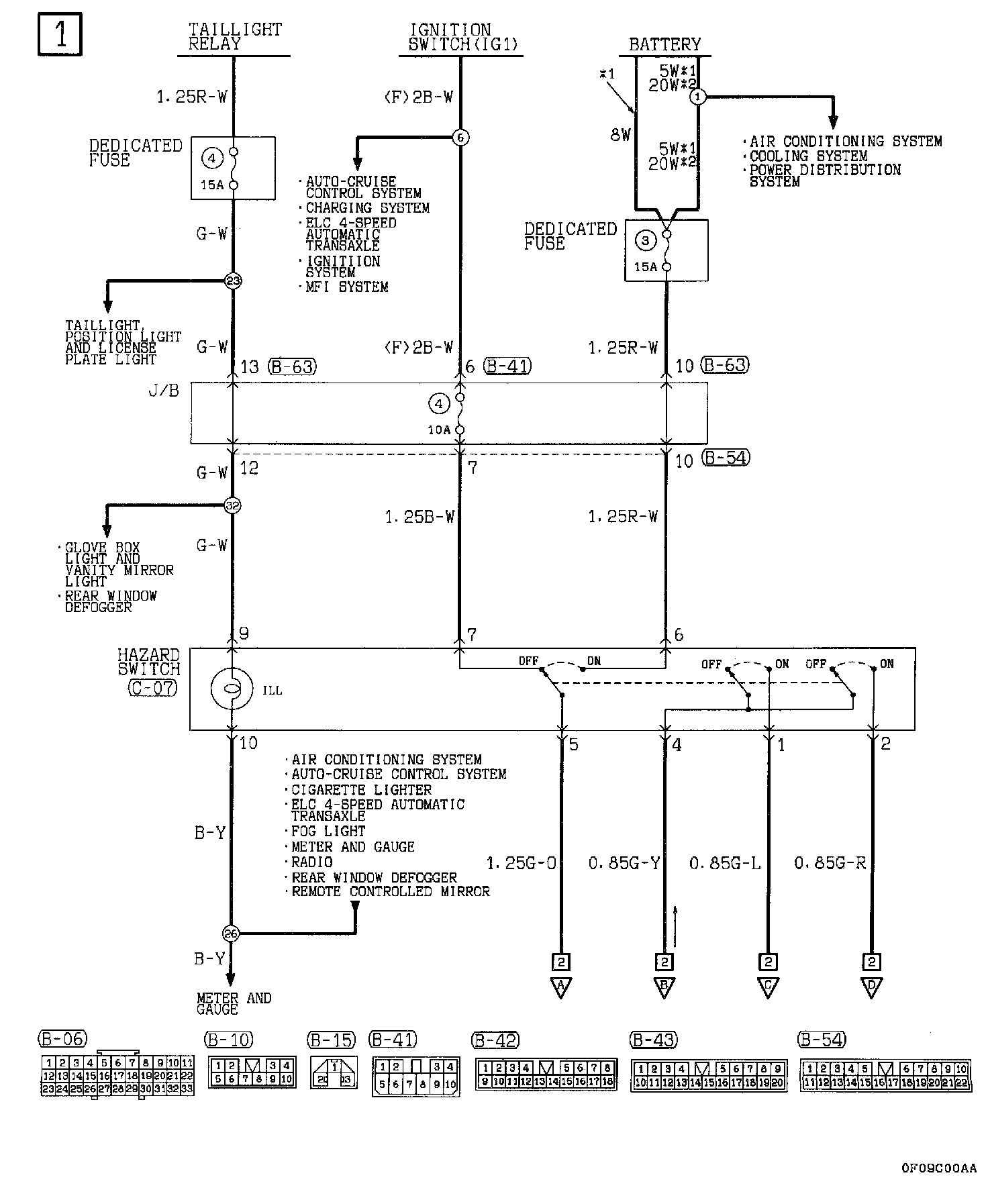

Turn-Signal Light And Hazard Warning Light (Part 1 Of 4):

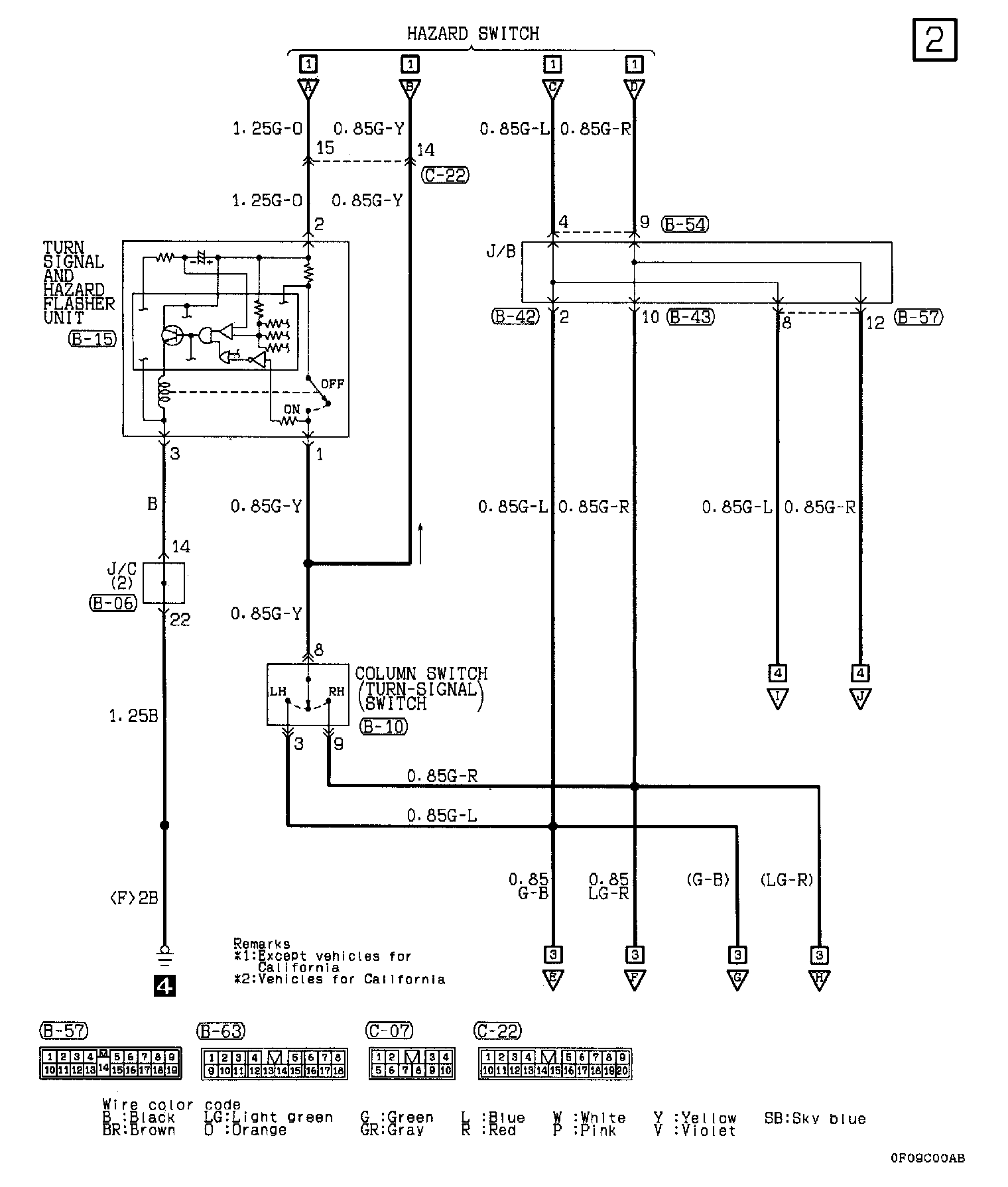

Turn-Signal Light And Hazard Warning Light (Part 2 Of 4):

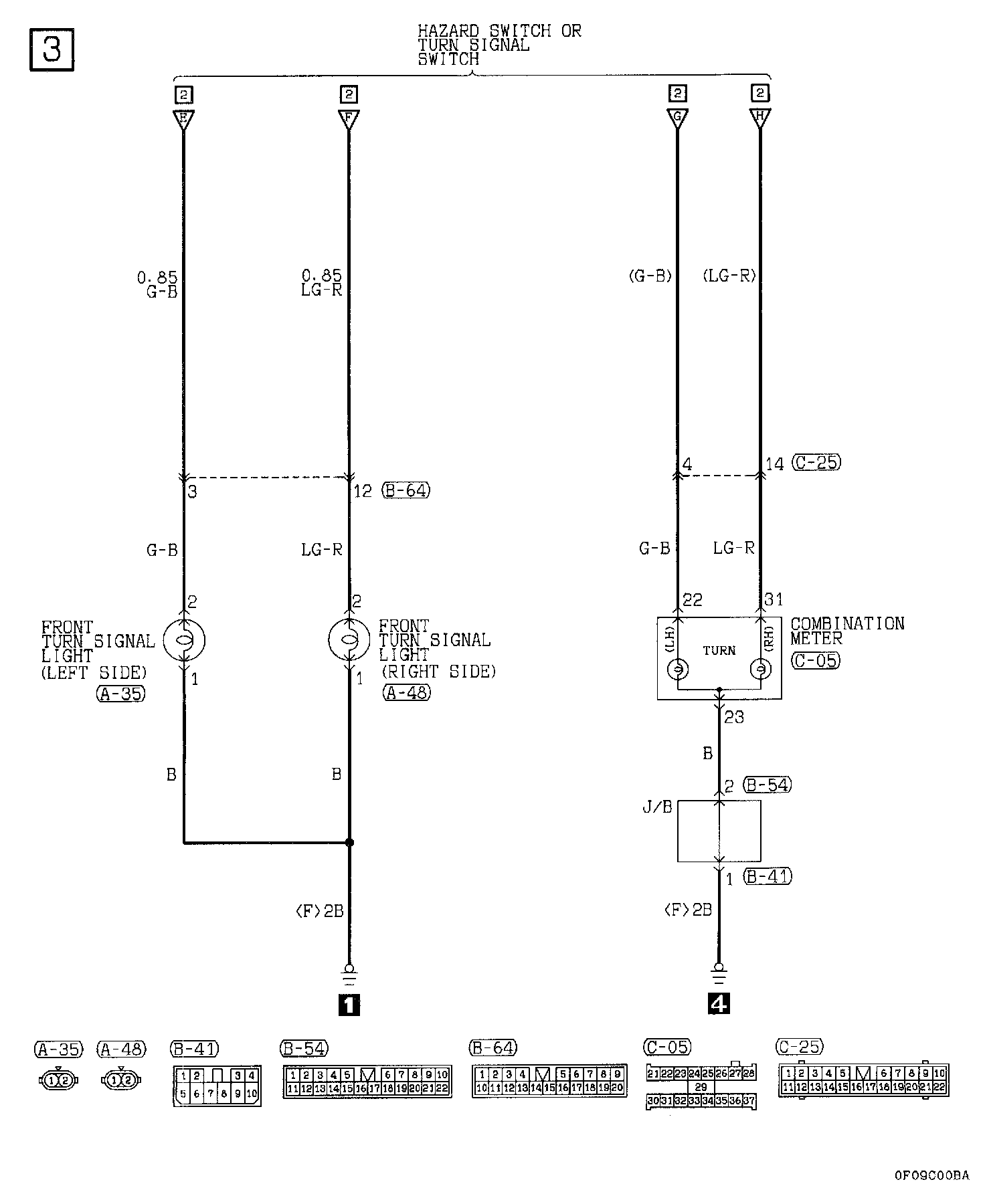

Turn-Signal Light And Hazard Warning Light (Part 3 Of 4):

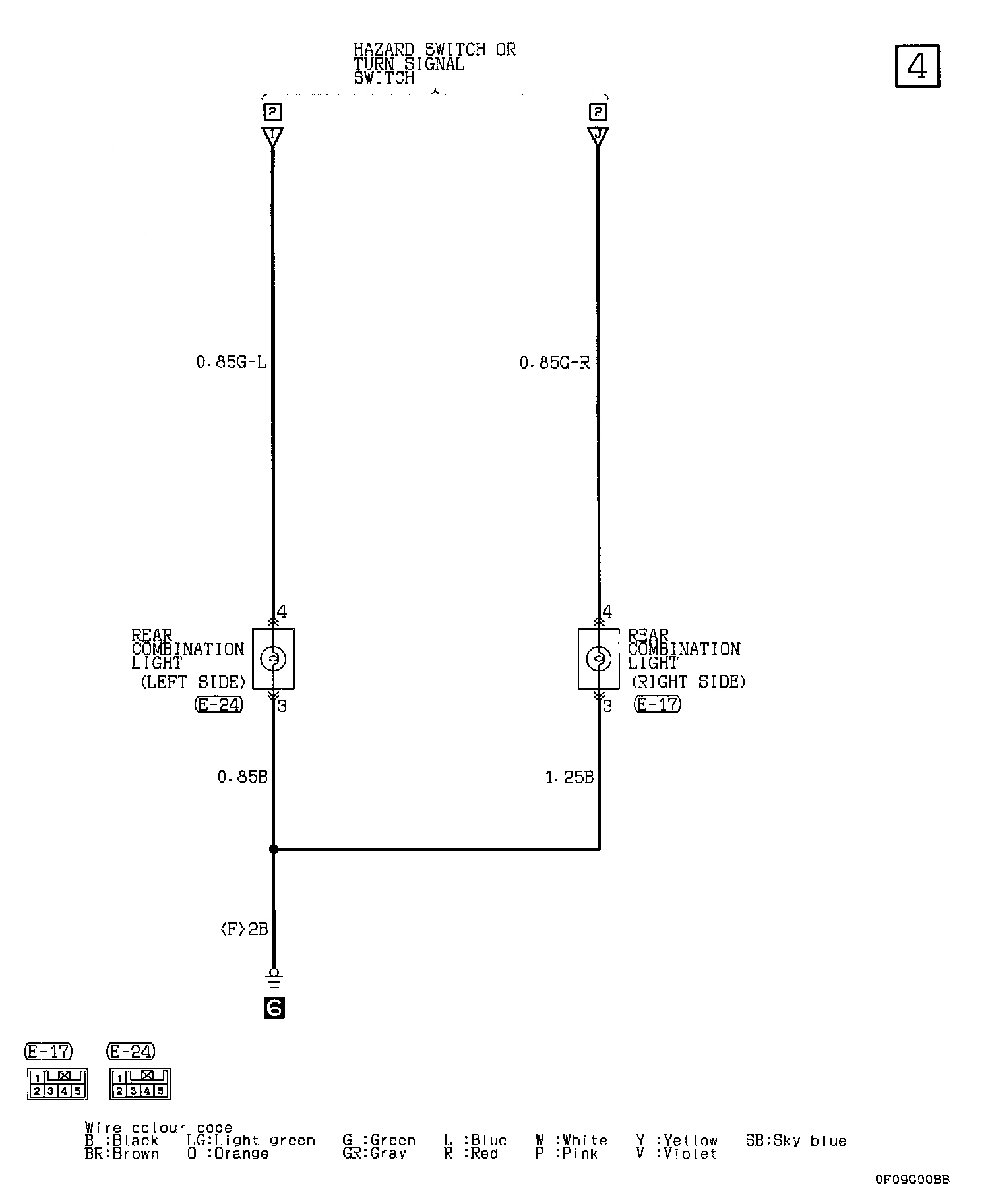

Turn-Signal Light And Hazard Warning Light (Part 4 Of 4):
