Sebring V6-2.5L VIN N
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Wiper and Washer Systems
Wiper and Washer Systems

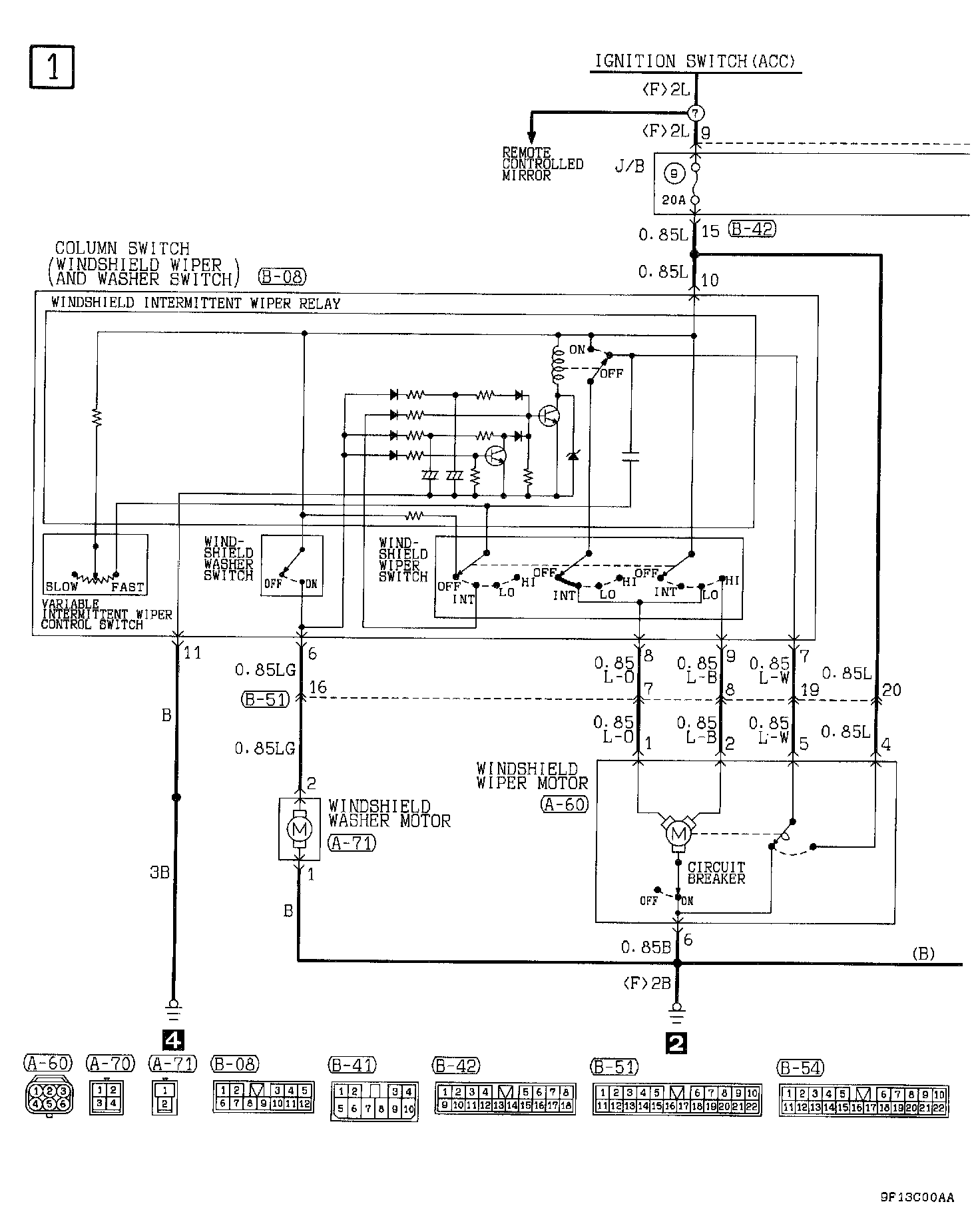

Windshield Wiper And Washer (Part 1 Of 2):
Windshield Wiper And Washer (Part 2 Of 2):
