Sebring V6-2.5L VIN N
>>
Repair and Diagnosis
>>
Diagrams
>>
Fuse and Fusible Links
>>
Centralized Junction
>>
Dedicated Fuse
Dedicated Fuse

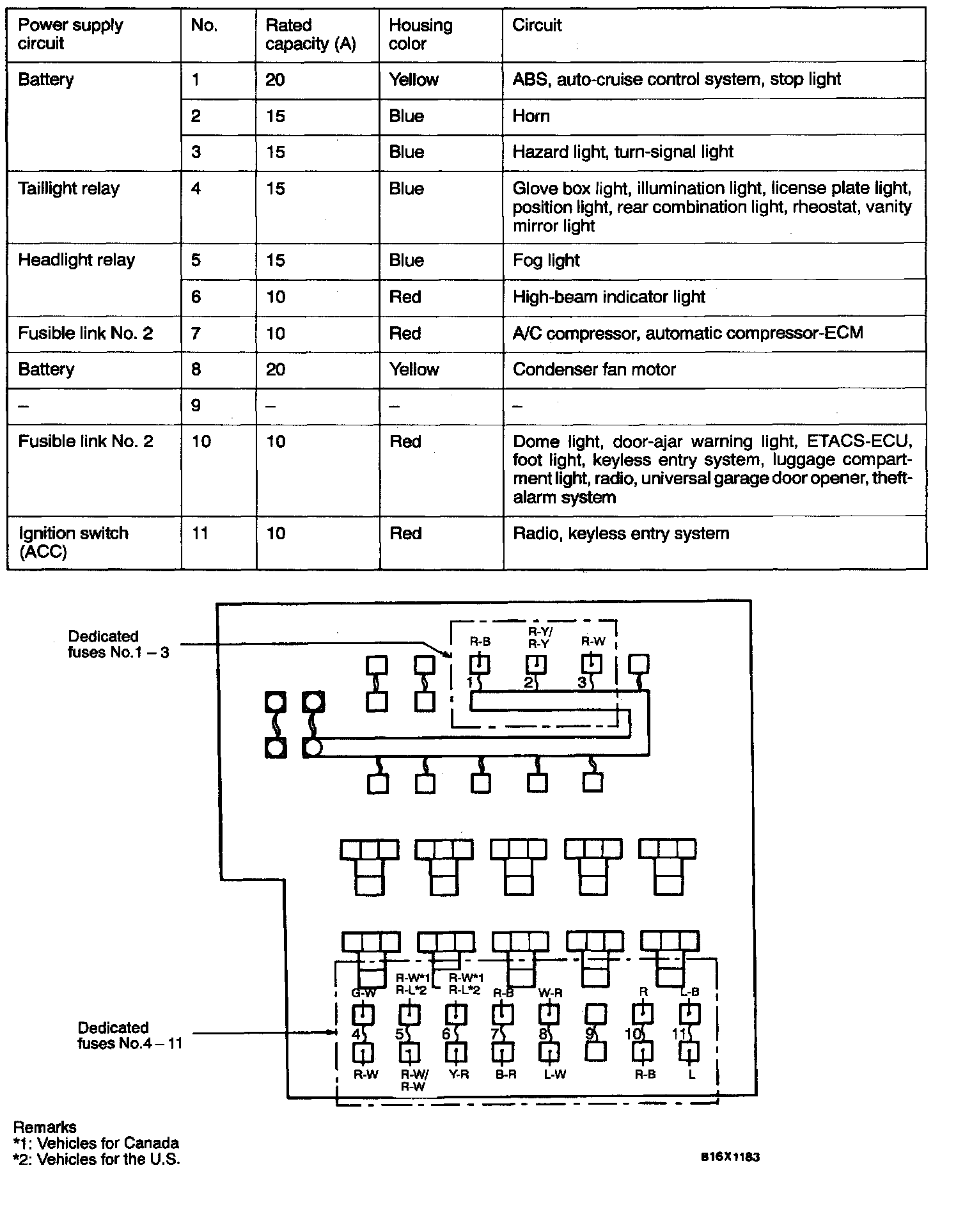

Dedicated Fuse (Relay Box In Engine Compartment):

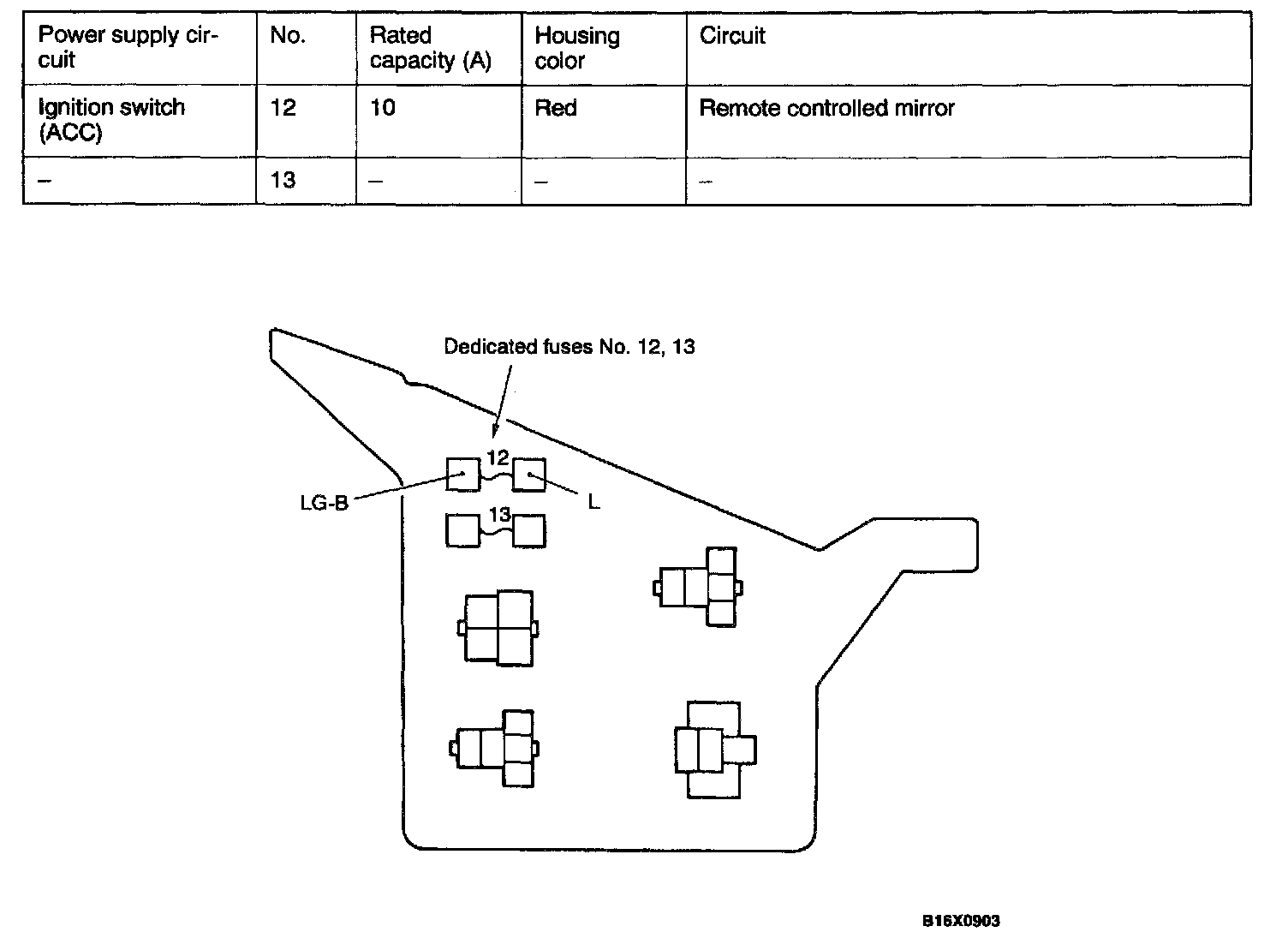

Dedicated Fuse (Interior Relay Box):
