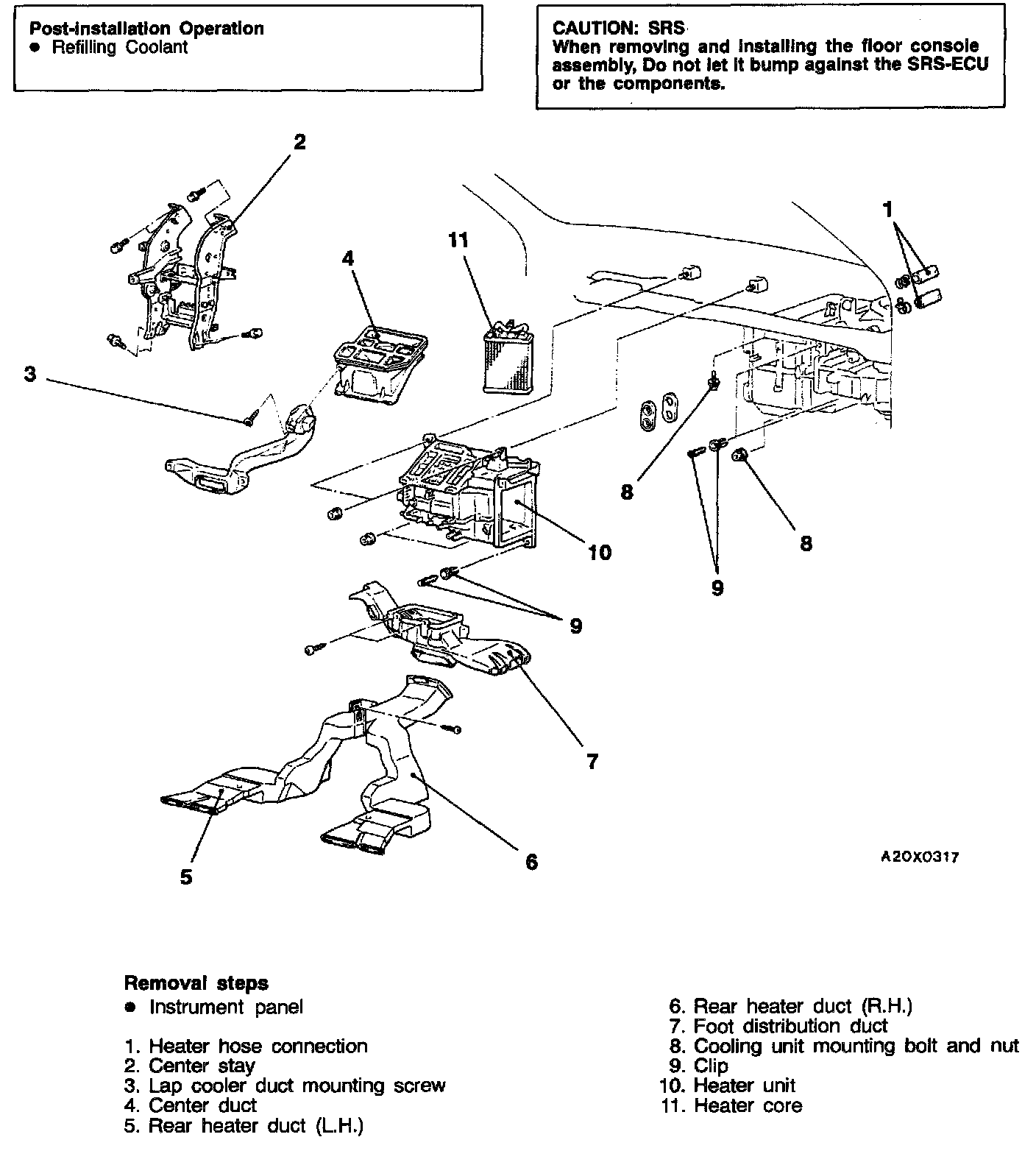

Heater Core: Service and Repair

Instrument Panel removal, refer to: Body and Frame, Interior Trim, Dashboard/Instrument Panel, Service and Repair, Instrument Panel Assembly Replacement, Instrument Panel Assembly

Floor Console removal, refer to: Body and Frame, Interior Trim, Console, Service and Repair, Service and Repair

CAUTION: When removing and Installing the floor console assembly, Do not let it bump against the SRS-ECU or the components.

REMOVAL SERVICE POINTS

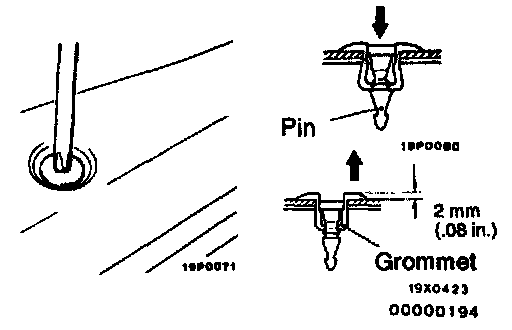

Clip Removal
1. Use a Phillips-head screwdriver to push inward the pin (at the center of the clip) to a depth of about 2 mm (.08 in.).
2. Pull the clip outward to remove it.

CAUTION: Do not push the pin inward more than necessary because it may damage the grommet, or the pin may fall in, if pushed too far.

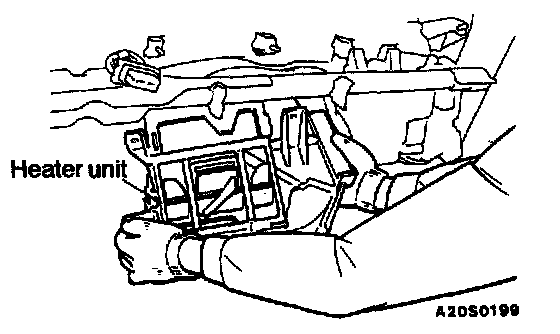

Heater Unit Removal
Slide the cooling unit towards you slightly, and then remove the heater unit.

INSTALLATION SERVICE POINT

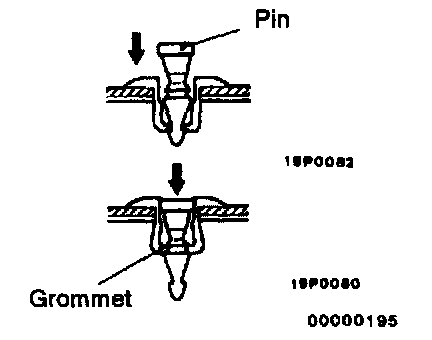

Clip Installation
1. With the pin pulled out, insert the clip into the hole.
2. Push the pin inward until the pin's head is flush with the grommet.
