Valve Seat: Testing and Inspection

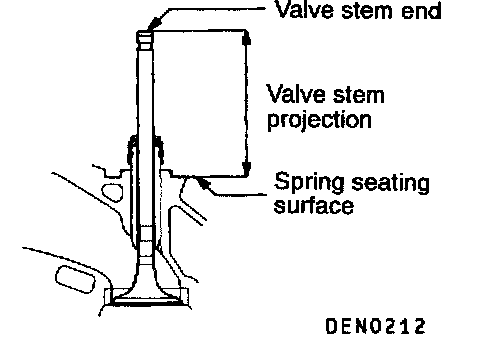

(1) Assemble the valve, then measure the valve stem projection, between the end of the valve stem and the spring seating surface. If the measurement exceeds the specified limit, replace the valve seat.

Standard value: 49.30 mm (1.9409 inches)
Limit: 49.80 mm (1.9606 inches)
