Engine Torque Strut: Service and Repair

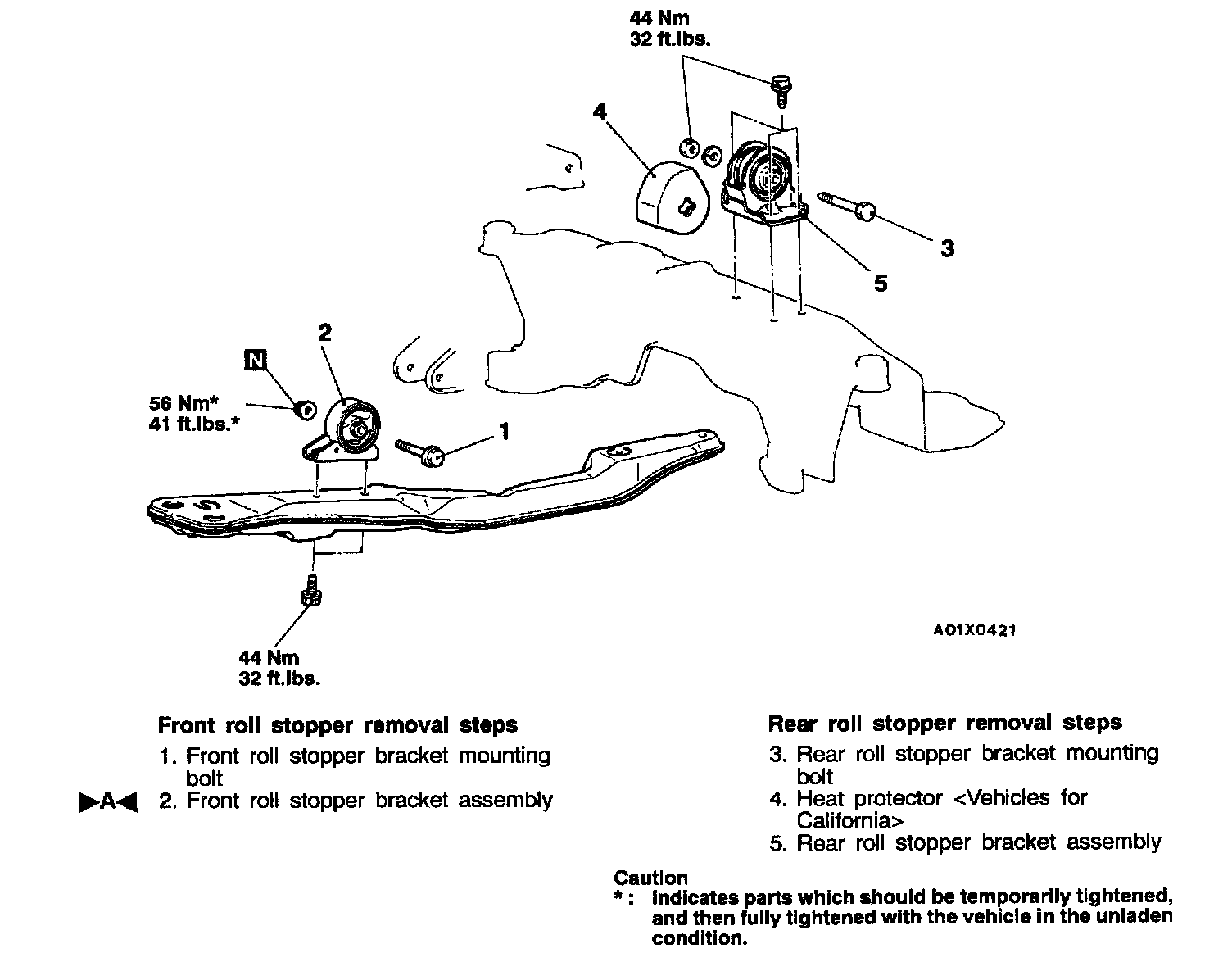

ENGINE ROLL STOPPER





INSTALLATION SERVICE POINT

>A< FRONT ROLL STOPPER BRACKET ASSEMBLY INSTALLATION





If the dimension shown in the illustration is not within the standard value when the weight of the engine is on the body, replace the front roll stopper bracket assembly.

Standard value (A): 43 ± 3 mm (1.69 ± 0.12 inches)

INSPECTION
- Check each insulator for cracks or damage.
- Check each bracket for deformation or damage.
