Engine Mount: Service and Repair

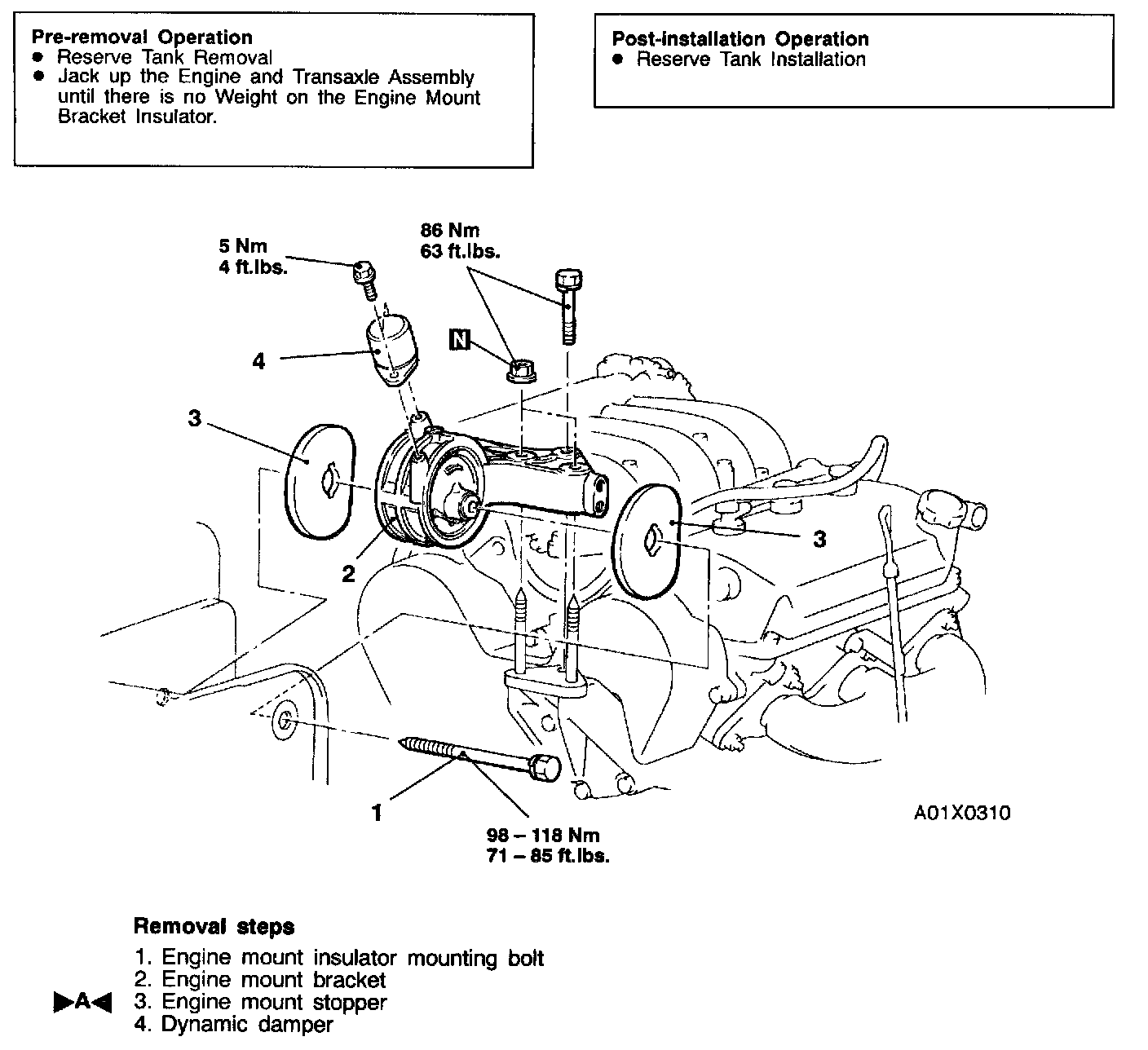

ENGINE MOUNTING





INSTALLATION SERVICE POINT

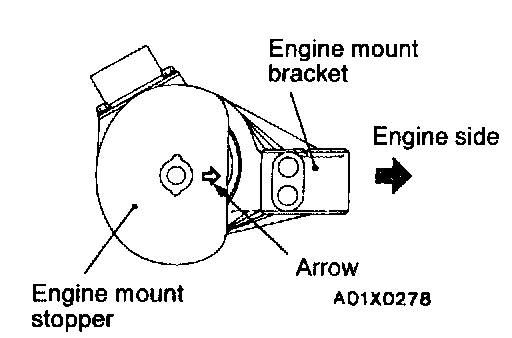

>A< ENGINE MOUNT STOPPER INSTALLATION





Clamp the engine mount stopper so that the arrow points in the direction as shown in the diagram.

INSPECTION
- Check each insulator for cracks or damage.
- Check each bracket for deformations or damage.
