Front Crankshaft Seal: Service and Repair

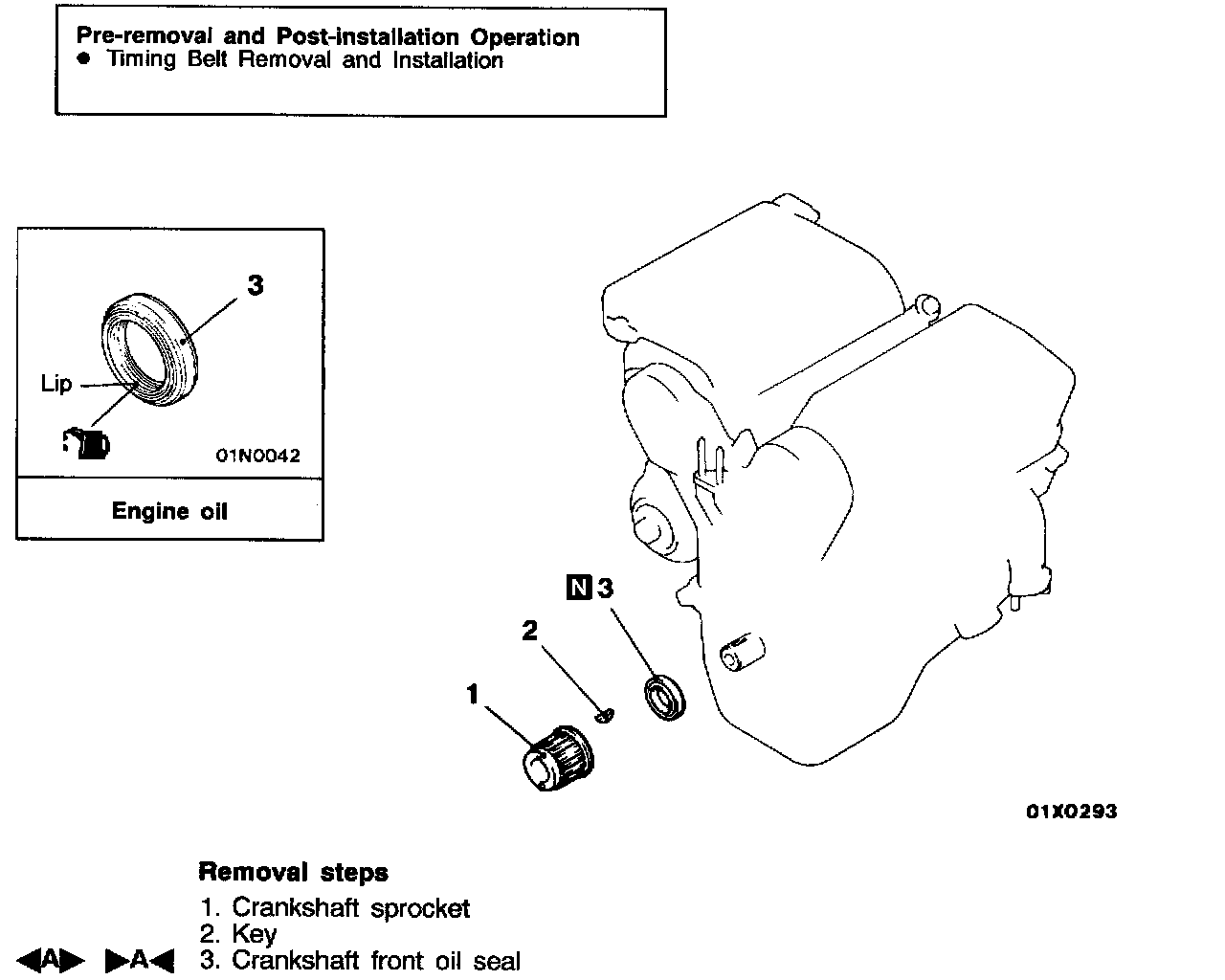

CRANKSHAFT FRONT OIL SEAL





REMOVAL SERVICE POINT

CRANKSHAFT FRONT OIL SEAL REMOVAL

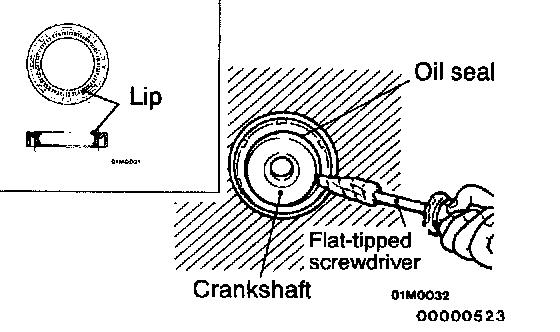

(1) Make a notch in the oil seal lip with a knife, etc.

(2) Cover the end of a flat-tipped screwdriver with a shop towel and insert into the notched section of the oil seal, and lever out the oil seal to remove it.

Caution: Do not damage the crankshaft and the oil pump case.

INSTALLATION SERVICE POINT

>A

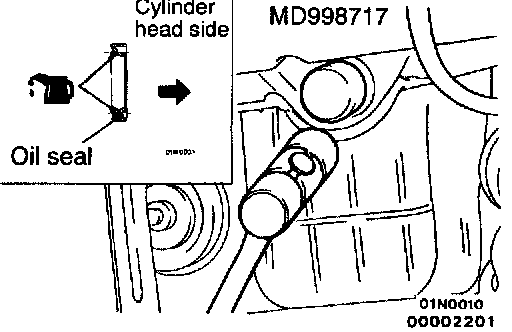

(1) Apply a small amount of engine oil to the oil seal lip and then insert.

(2) Tap the oil seal into the cylinder block.
