Diesel Data: Automotive Repair

Spark Plug Cable Resistance Check

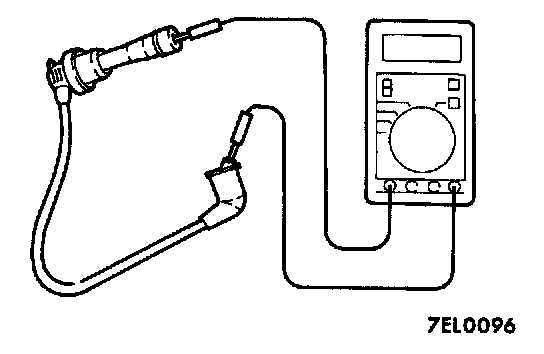

Measure the resistance of the all spark plug leads.
1. Check cap and coating for cracks.
2. Measure resistance.

Limit: max. 22 kOhms
