Ventilators (Instrument Panel)

CAUTION: SRS - When removing and Installing the floor console assembly from vehicles equipped with SRS, do not let it bump against the SRS-ECU or other components.

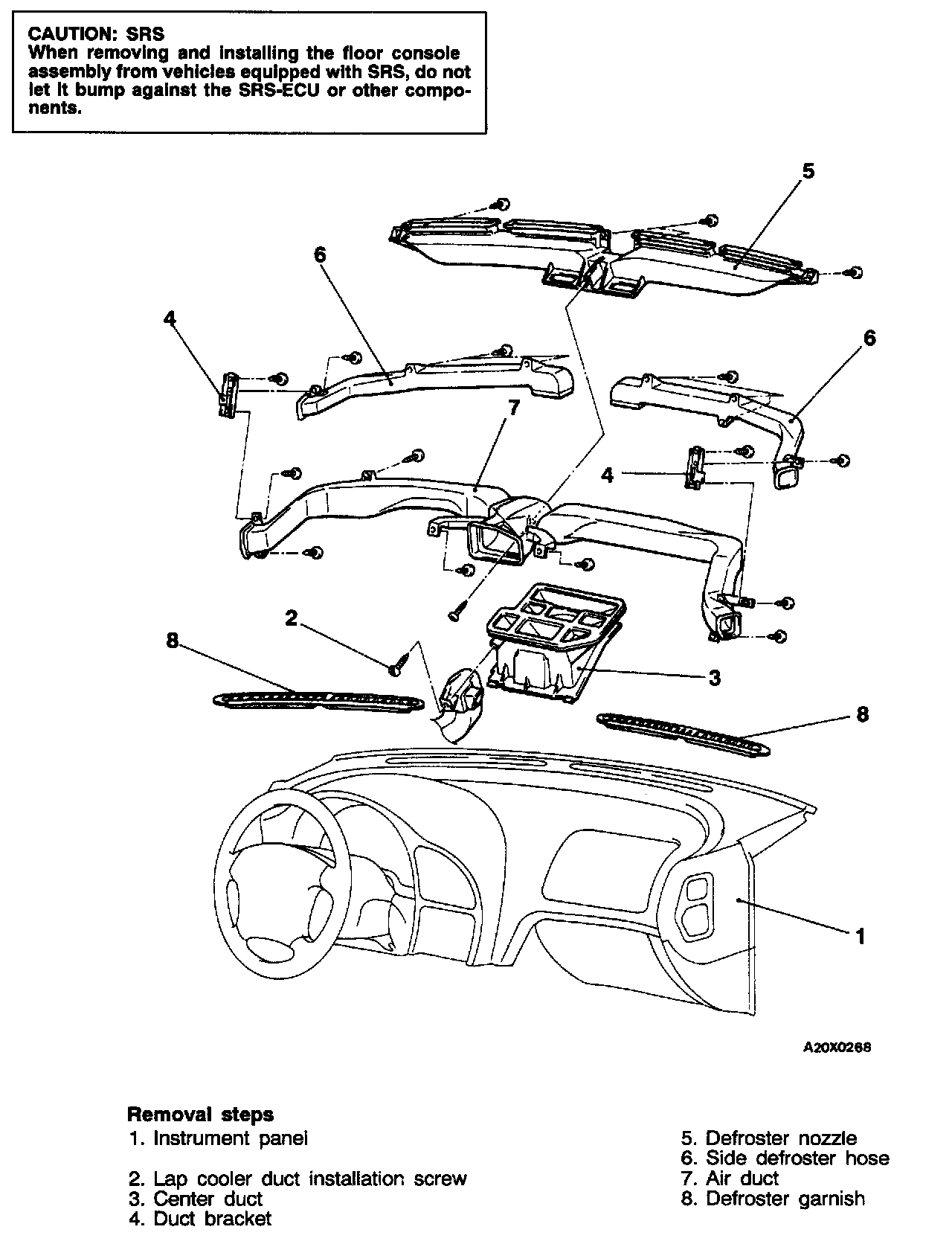

NOTE: For Removal and Installation follow the steps in the image.
