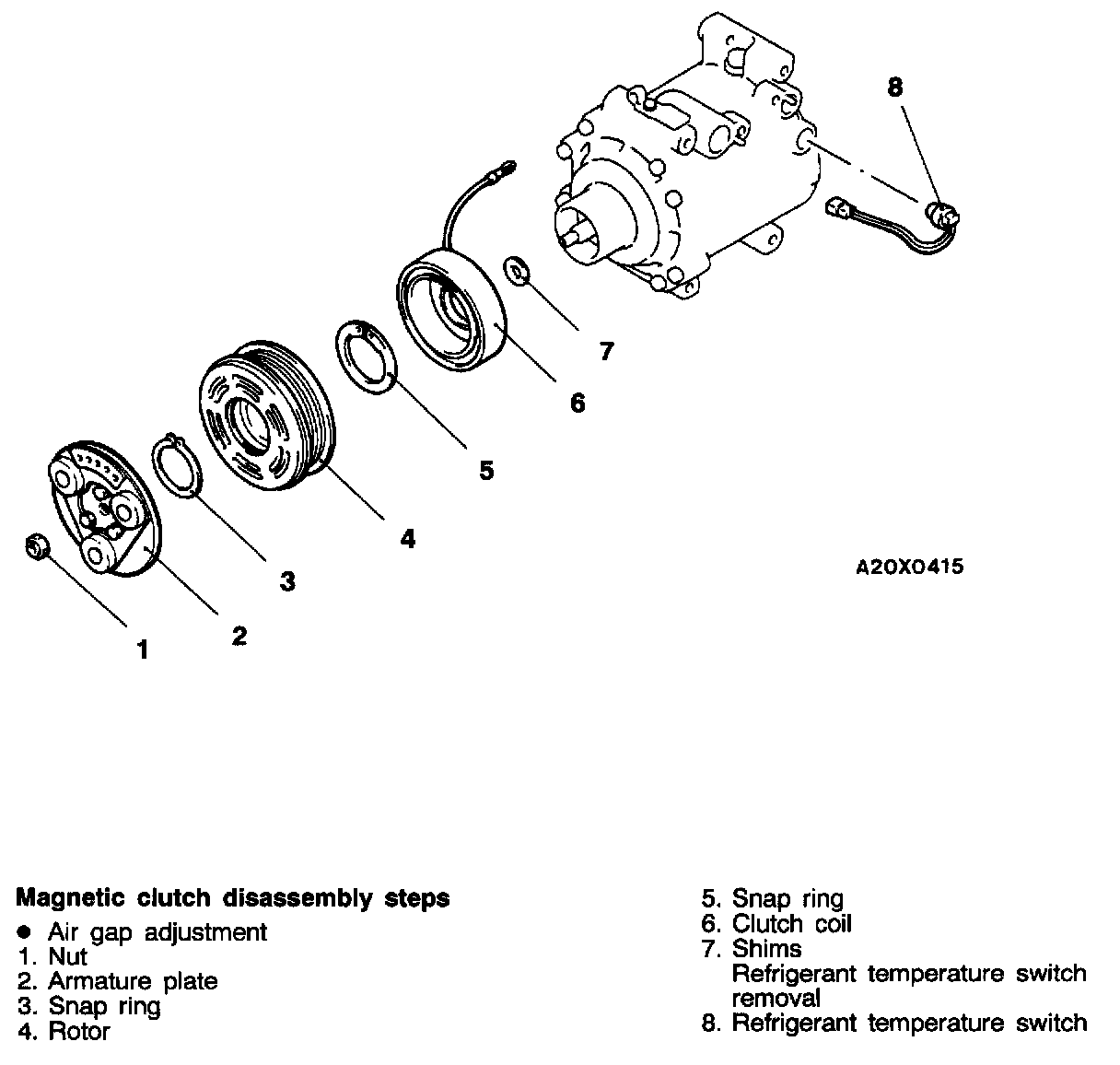

Disassembly and Reassembly

DISASSEMBLY SERVICE POINT

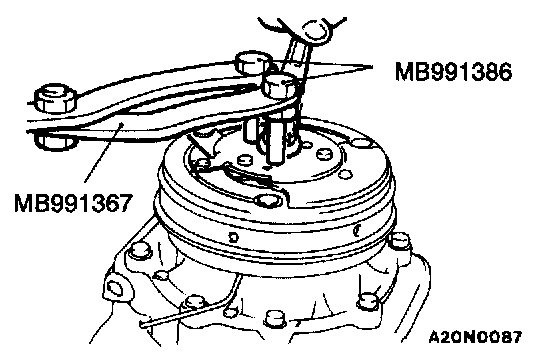

Nut Removal

REASSEMBLY SERVICE POINTS

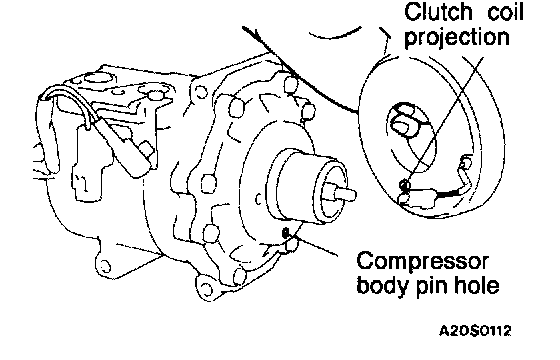

Clutch Coil Installation
When installing the clutch coil to the A/C compressor body, install so that the pin hole of the A/C compressor body and the clutch coil projection are aligned.

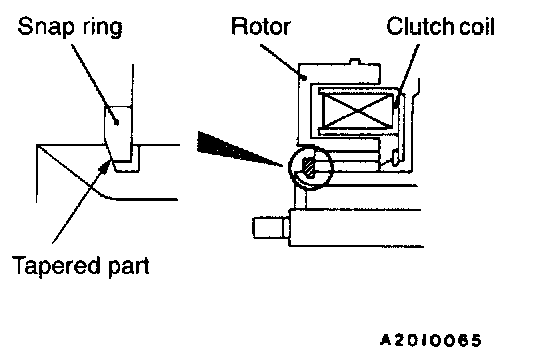

Snap Ring Installation
Install the snap ring so that the tapered surface is at the outer side.

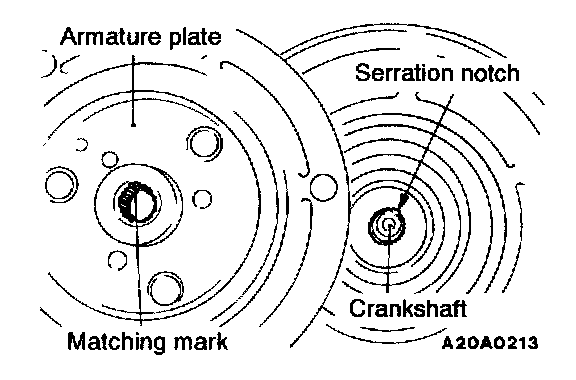

Armature Plate Installation
Align the mating mark of the crankshaft spline and the mating mark of the armature plate, and then fit them together.

Nut Installation
Use the special tool to hold the magnet clutch, and tighten the nut in the same manner as removal.

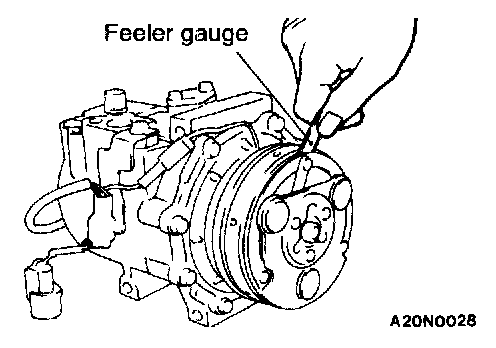

Air Gap Adjustment
Check whether or not the air gap of the clutch is within the standard value.

Standard value: 0.3 - 0.5 mm (0.012 - 0.020 in.)

NOTE: If there is a deviation of the air gap from the standard value, make the necessary adjustment by adjusting the number of shims.
