Refrigerant Line Replacement

CAUTION: Plug refrigerant lines to prevent air from mixing when disconnecting them.

REMOVAL

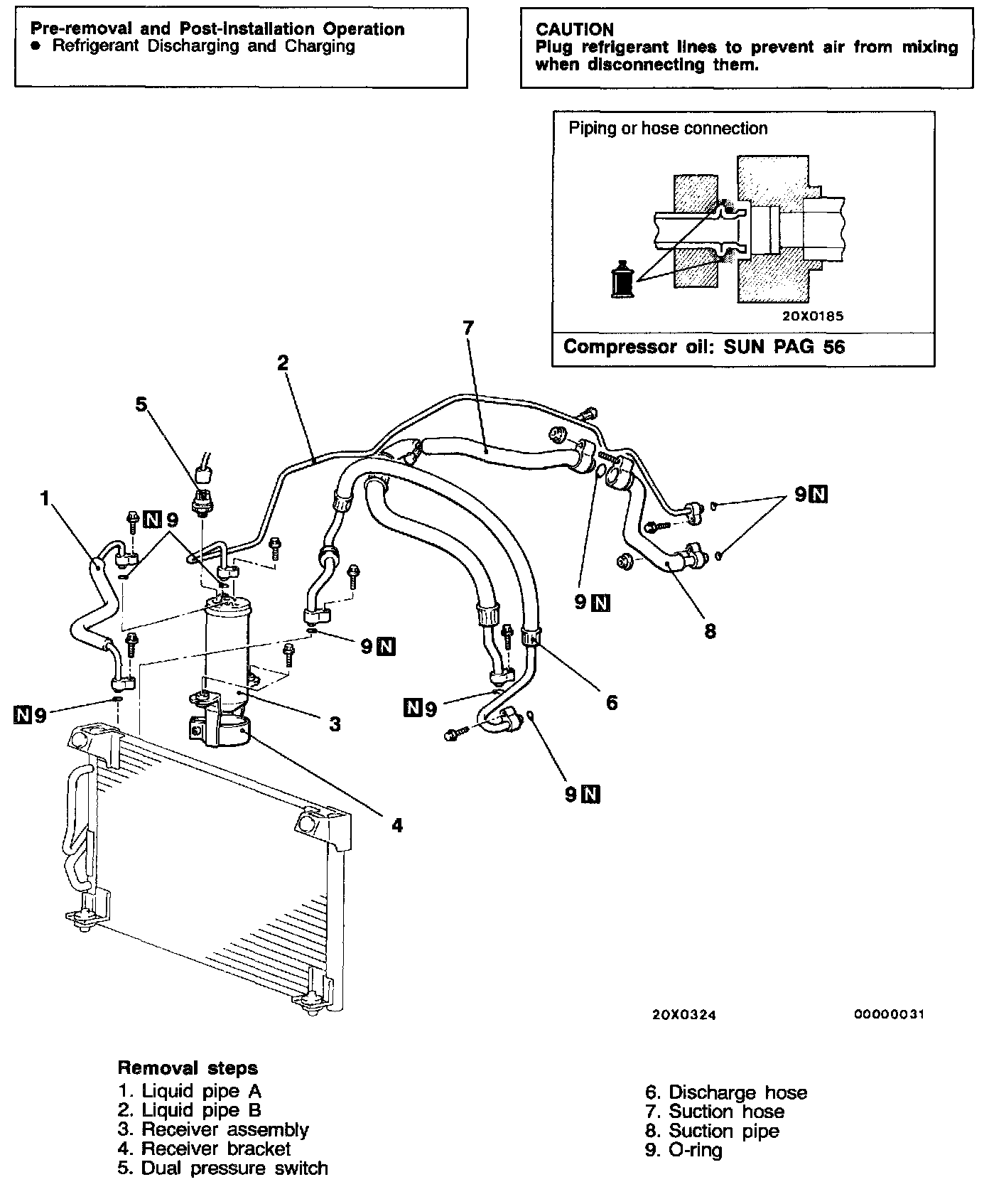

To remove follow steps in image.

INSTALLATION SERVICE POINT
Suction Hose, Receiver Assembly Installation
When replacing the suction hose or the receiver assembly, refill them with a specified amount of compressor oil.

Compressor oil: SUN PAG 56
Quantity:
Suction hose: 10 cm3 (0.34 fl.oz.)
Receiver: 10 cm3 (0.34 fl.oz.)
