Diesel Data: Automotive Repair
Home >> Chrysler >> 2000 >> Sebring V6-2.5L VIN N >> Repair and Diagnosis >> Instrument Panel, Gauges and Warning Indicators >> Cigarette Lighter >> Service and Repair

Cigarette Lighter: Service and Repair





REMOVAL

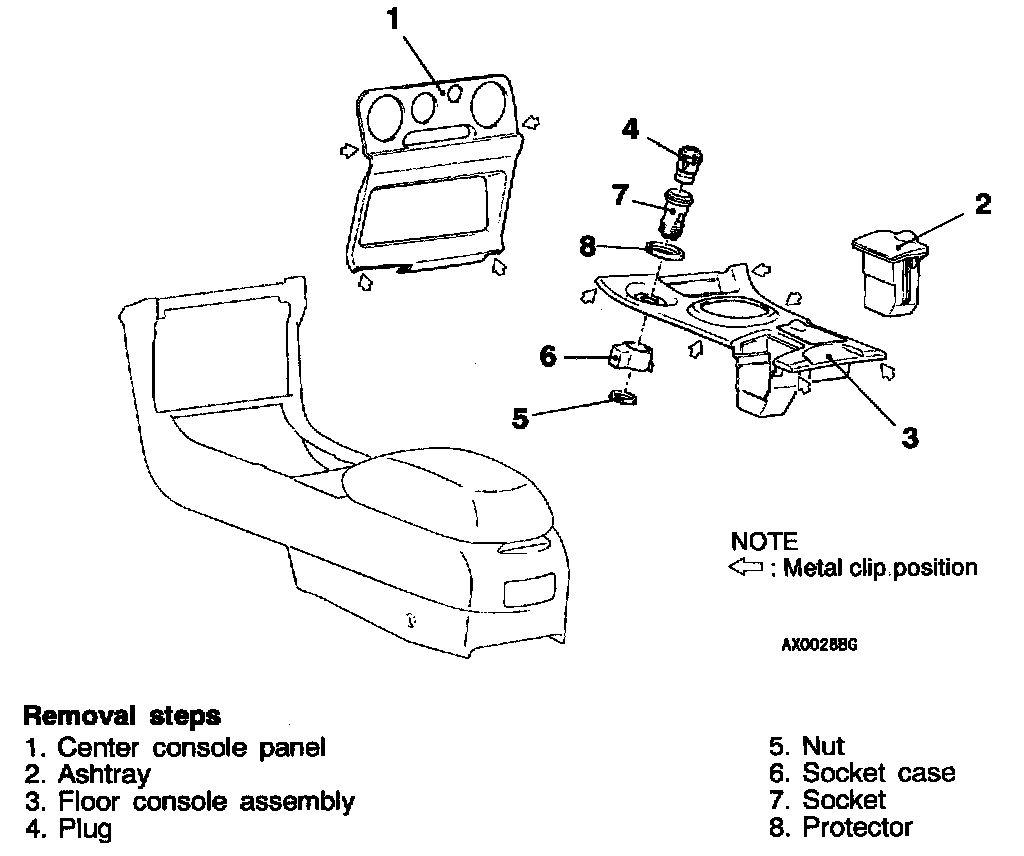

To remove follow the steps listed in the image.

INSTALLATION
To install reverse the steps listed in the image.
