Headlamp Bulb: Service and Repair

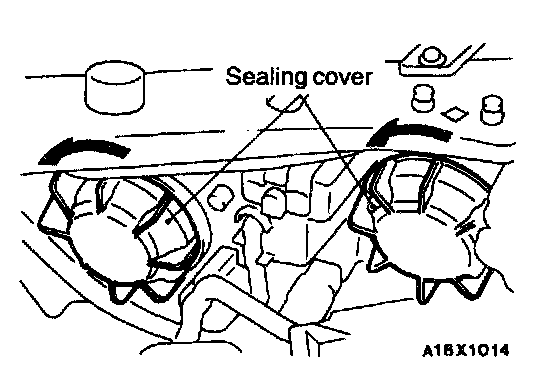

1. Remove the sealing cover by turning it counterclockwise.

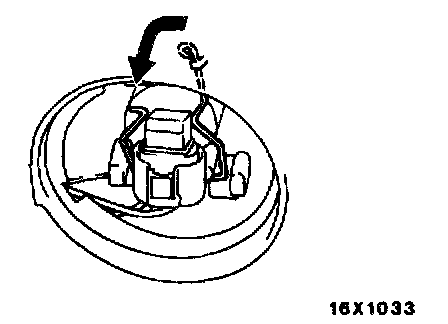

2. Remove the bulb attaching spring and pull out the bulb.

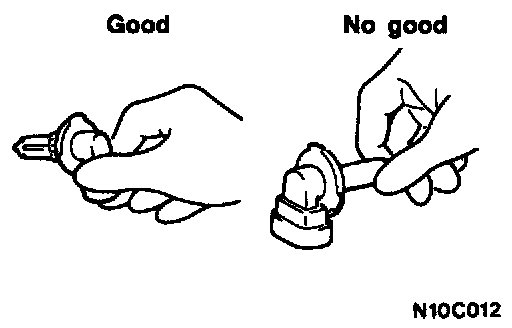

CAUTION: Do not touch the surface of the bulb glass with hands or dirty gloves, as the bulb may pop after a short time. If the glass does become dirty, clean it with alcohol or thinner, and let it dry thoroughly before installing.

3. Install the sealing cover securely after the bulb replacement, or the lens will be out of focus, or water will get inside the light unit.
