Diesel Data
: Automotive Repair
Home
>>
Chrysler
>>
2000
>>
Sebring V6-2.5L VIN N
>>
Repair and Diagnosis
>>
Maintenance
>>
Fuses and Circuit Breakers
>>
Fuse Block
>>
Locations
>>
Centralized Junction
Centralized Junction

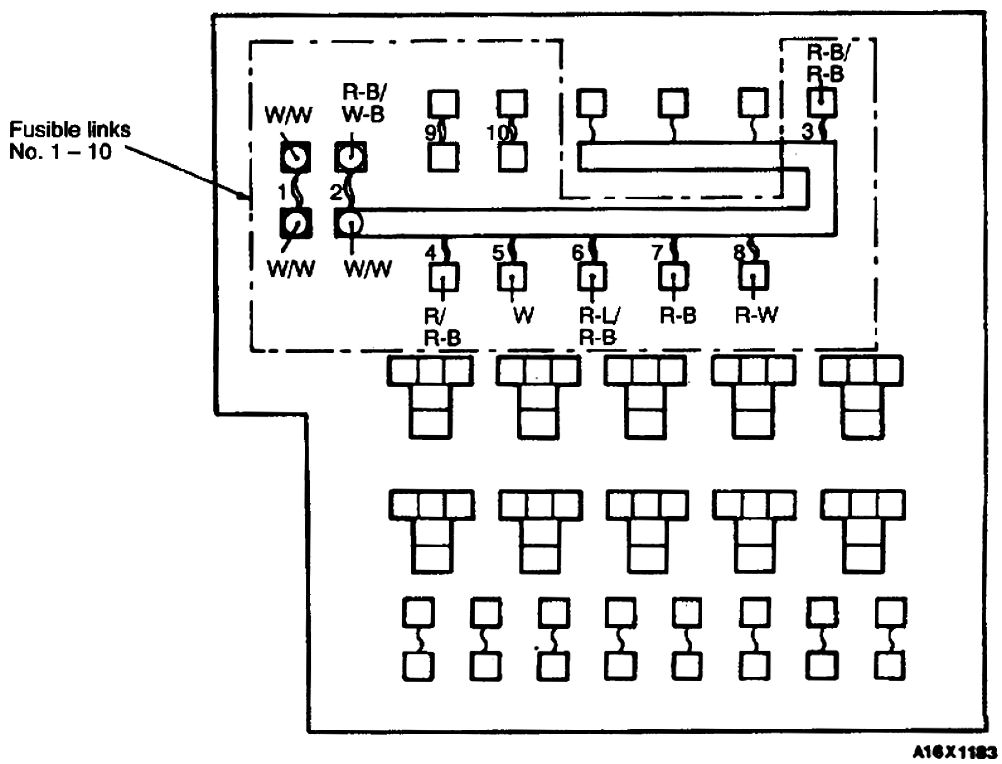

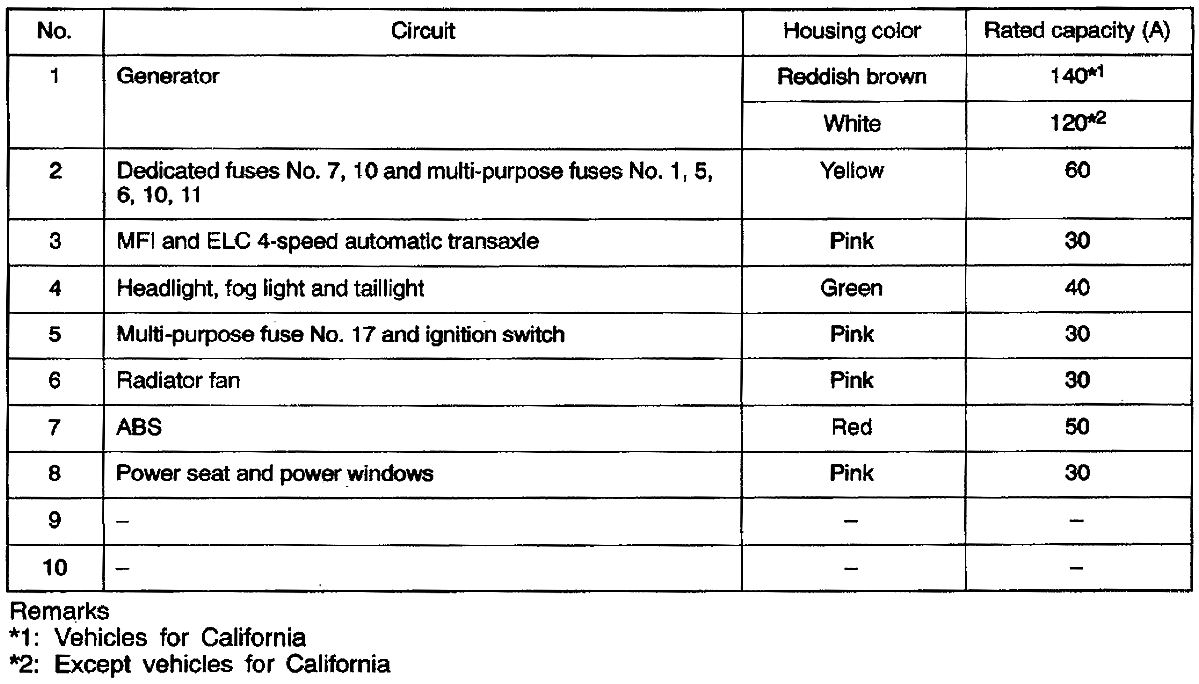

Fusible Link

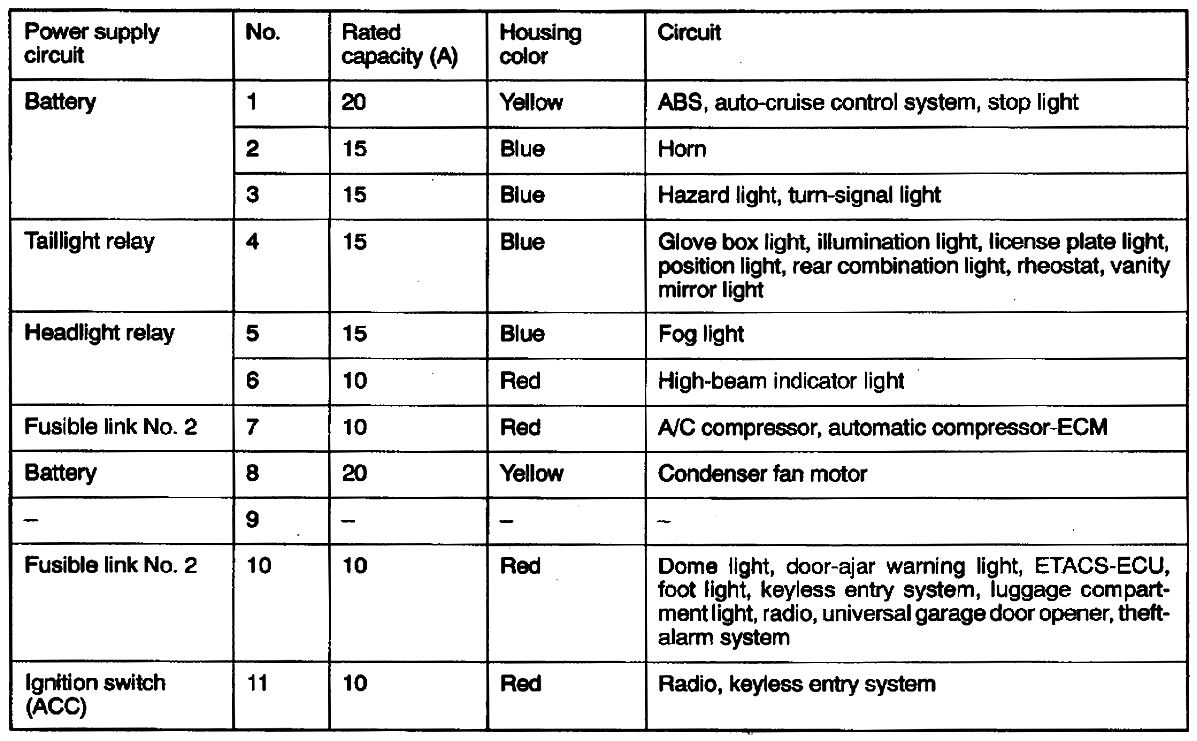

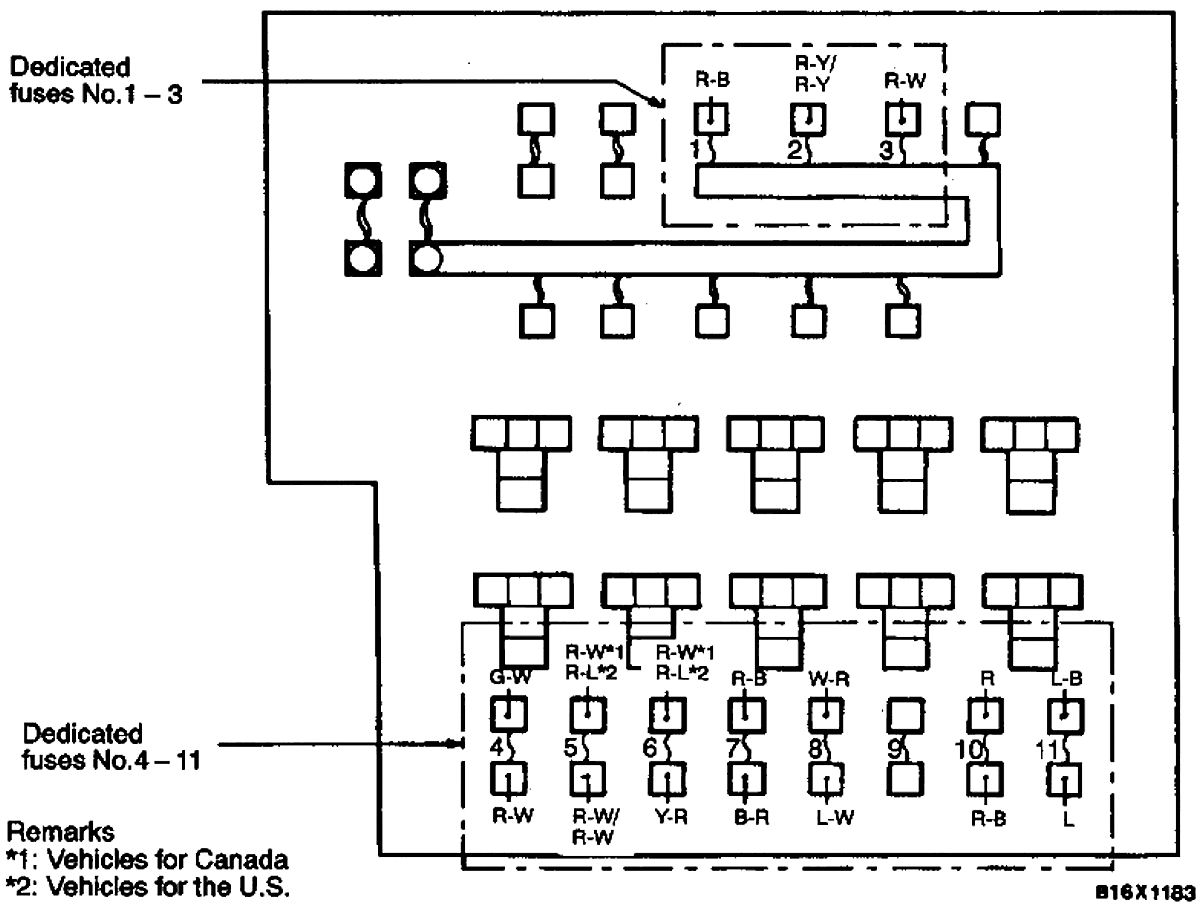

Dedicated Fuse

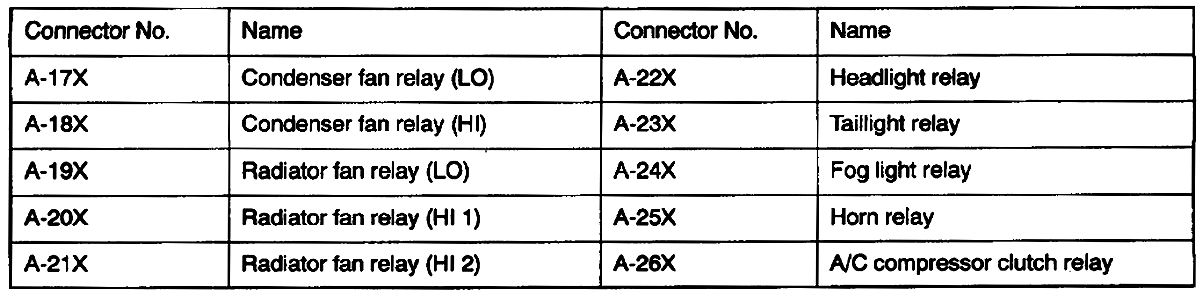

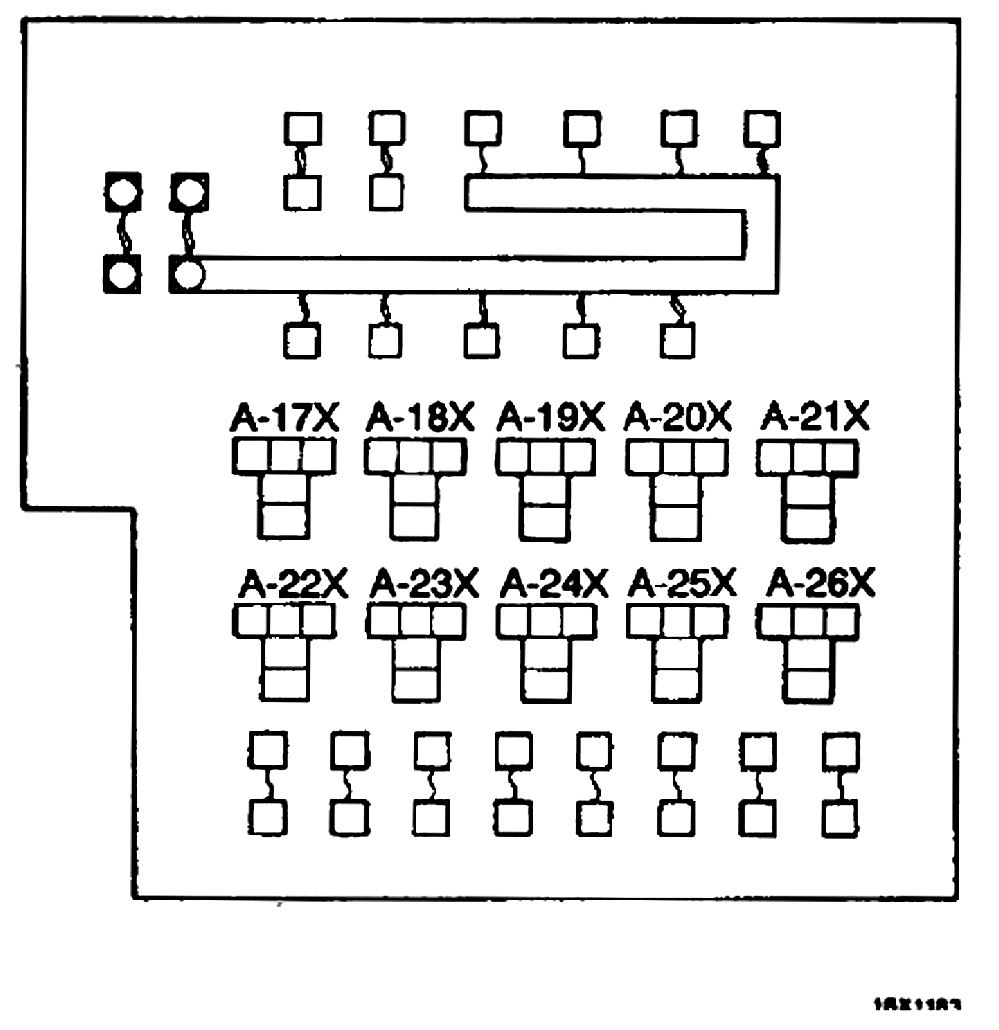

Centralized Relay
