Tire and Wheel Runout

WHEEL RUNOUT CHECK

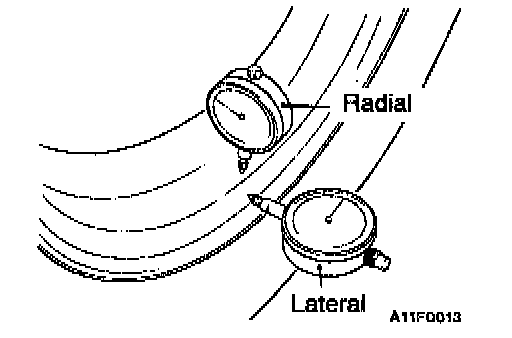

Jack up the vehicle so that the wheels are clear of the floor. While slowly turning the wheel, measure wheel runout with a dial indicator.
Limit: Radial and lateral runout
1.2 mm (0.05 inch) or less (Steel wheel)
1.0 mm (0.04 inch) or less (Aluminum wheel)
If wheel runout exceeds the limit, replace the wheel.

WHEEL AND TIRE
INSTALLATION SERVICE POINT
Tighten the wheel nut to the specified torque.
Tightening torque: 88 - 108 Nm (65 - 80 ft. lbs.)
