Home
>>
Chrysler
>>
2000
>>
Sebring V6-2.5L VIN N
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Testing and Inspection
>>
Initial Inspection and Diagnostic Overview
>>
Diagnostic Strategies
>>
Diagnostic Troubleshooting Flow
Diagnostic Troubleshooting Flow

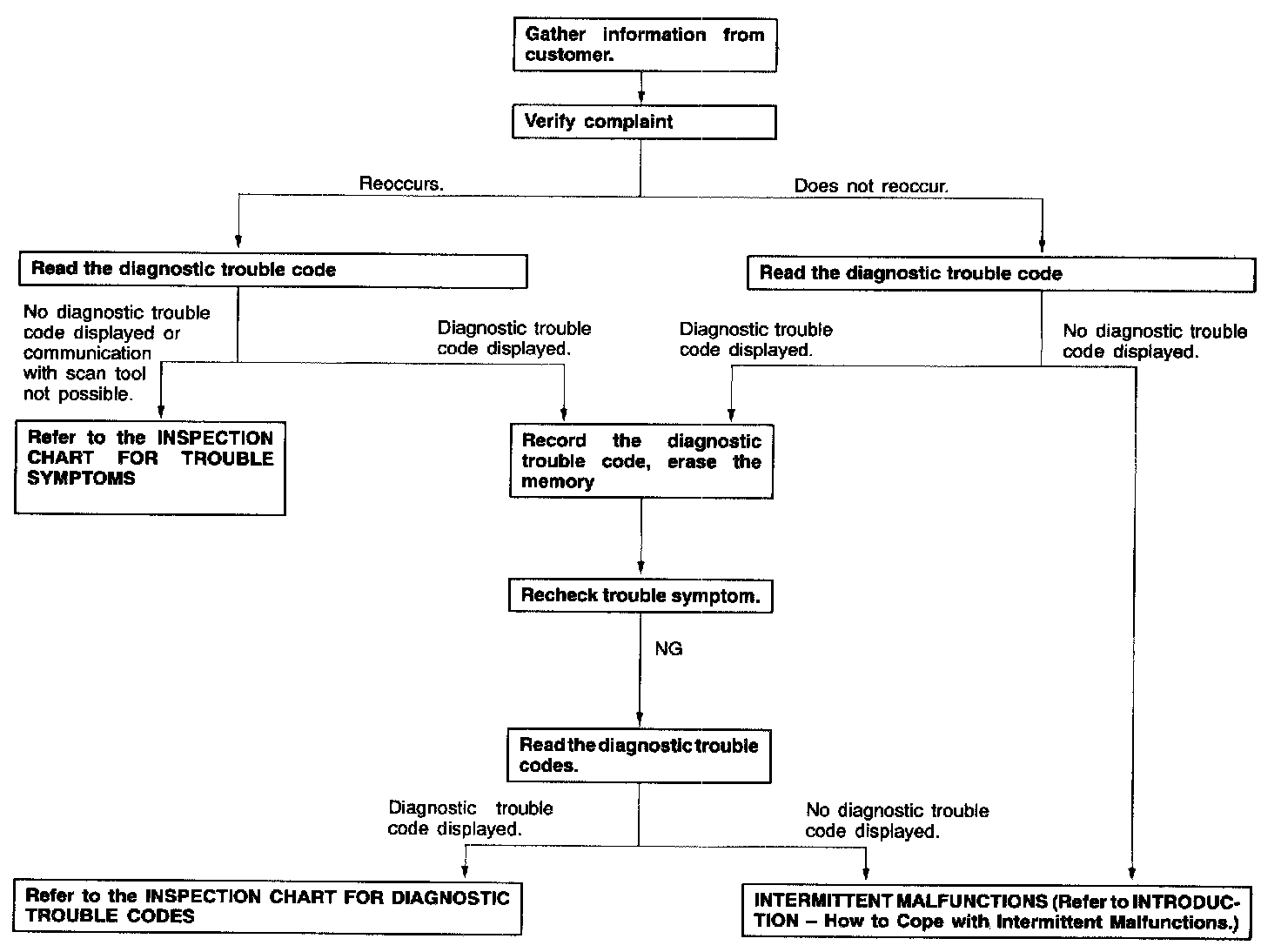

Diagnostic Troubleshooting Flow Chart:
