24. Power Supply System and Ignition Switch-IG Circuit

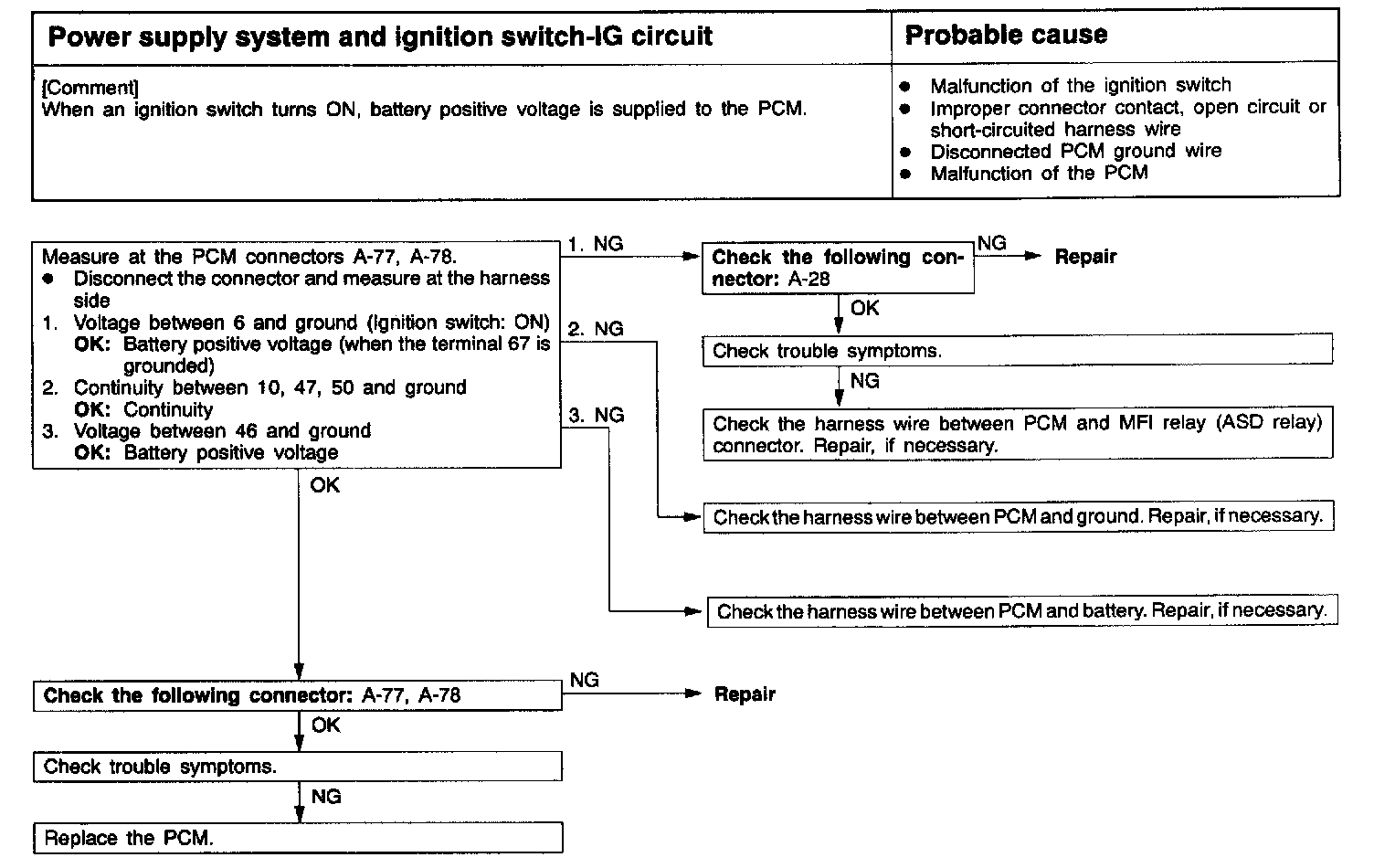

24. Power Supply System and Ignition Switch-IG Circuit
Inspection Procedure 24:
