Home >> Chrysler >> 2000 >> Sebring V6-2.5L VIN N >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Symptom Procedures >> 44. Check the Throttle Position Sensor Circuit

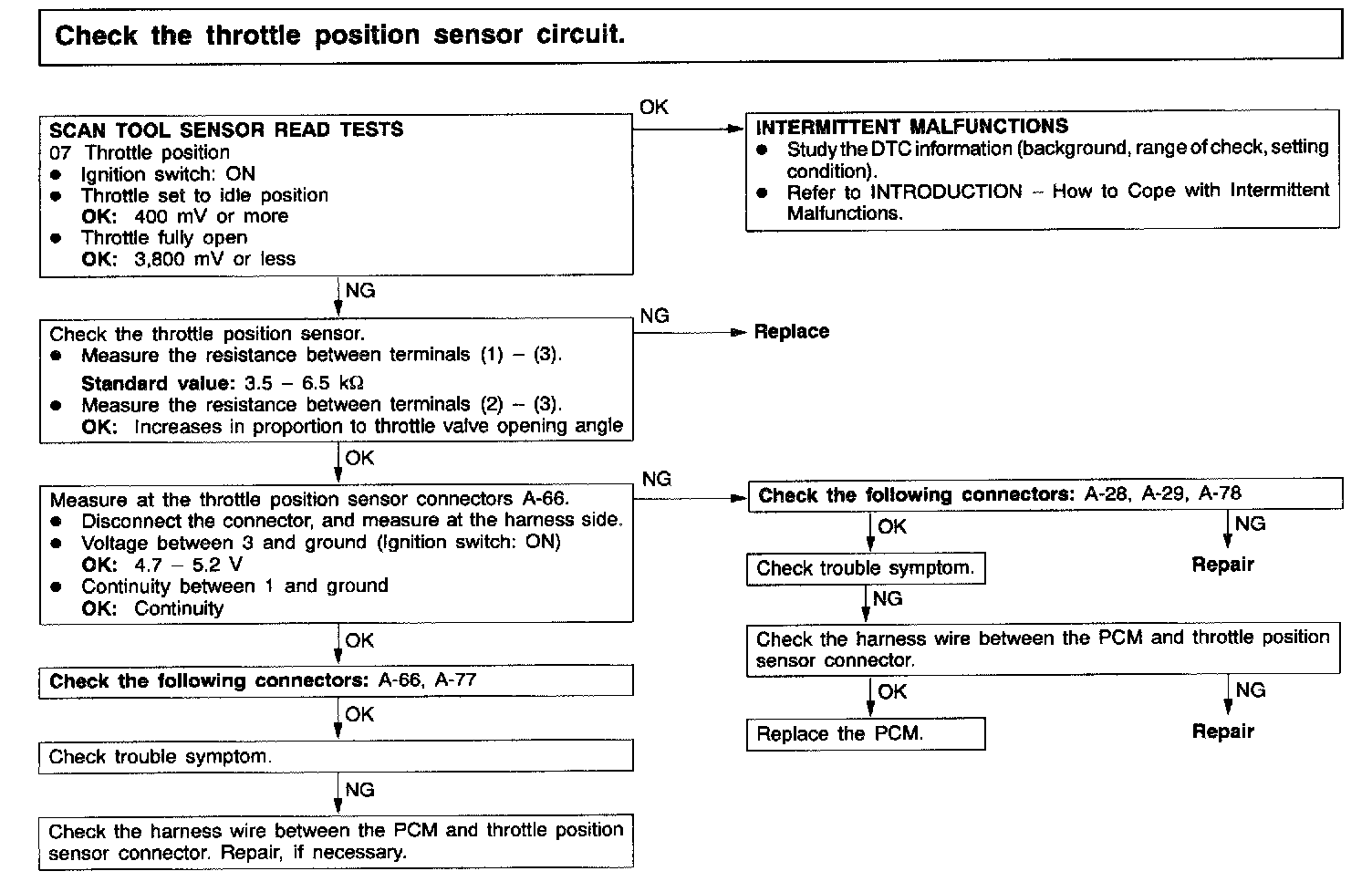

44. Check the Throttle Position Sensor Circuit

Inspection Procedure 44:
