Canister Purge Solenoid: Testing and Inspection

EVAPORATIVE EMISSION PURGE SOLENOID CHECK

NOTE: When disconnecting the vacuum hose, place an identification mark on it for proper re-connection.

1. Disconnect the vacuum hose from the solenoid valve.
2. Disconnect the harness connector.




3. Connect a hand vacuum pump to nipple (A) of the solenoid valve.

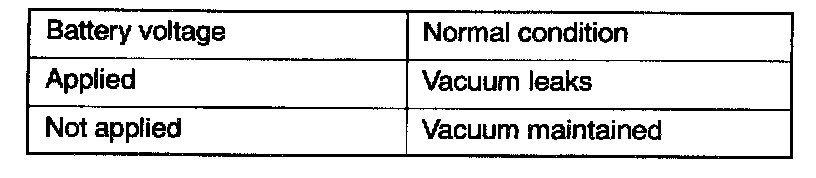

4. Check airtightness by applying a vacuum with voltage applied directly from the battery to the purge control solenoid valve.

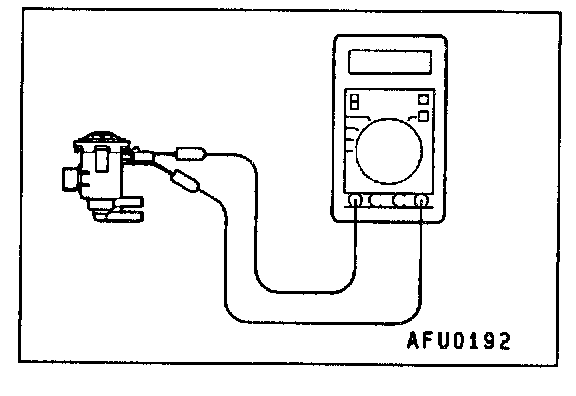

5. Measure the resistance between the terminals of the solenoid valve.

Standard value: 27 - 37 Ohms [at 20 °C (68 °F)]

6. Replace solenoid if resistance is out of specification.
