Fuel Filler Hose: Testing and Inspection

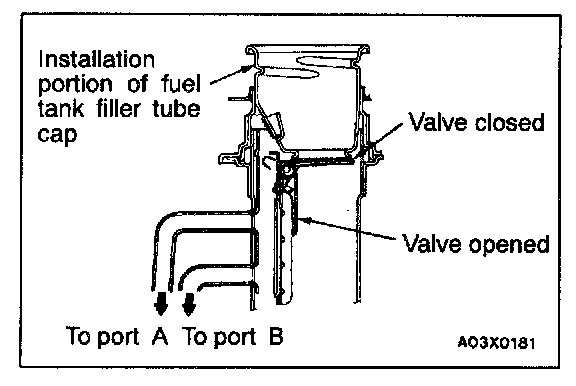

FUEL TANK FILLER TUBE ASSEMBLY CHECK
1. Blow air into the hose. Check that the air flows out of port B.
2. Use a screwdriver or similar tool to close the valve, then blow air into the hose. Check that air does not flow out of port B.
