Wave-Form Check Using an Analyzer
Measurement method

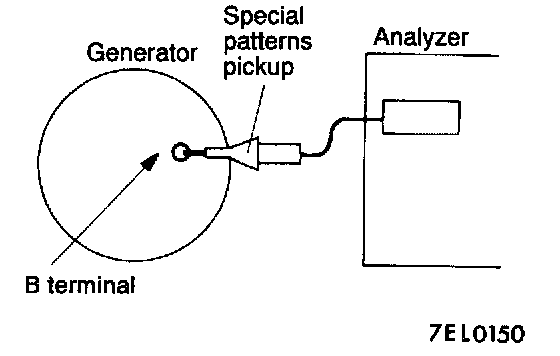

Connect the analyzer special patterns pick-up to the generator B terminal.
