Starting and Charging
>>
Charging System
>>
Testing and Inspection
>>
Symptom Related Diagnostic Procedures
>>
Diagnostic Strategies
Diagnostic Strategies

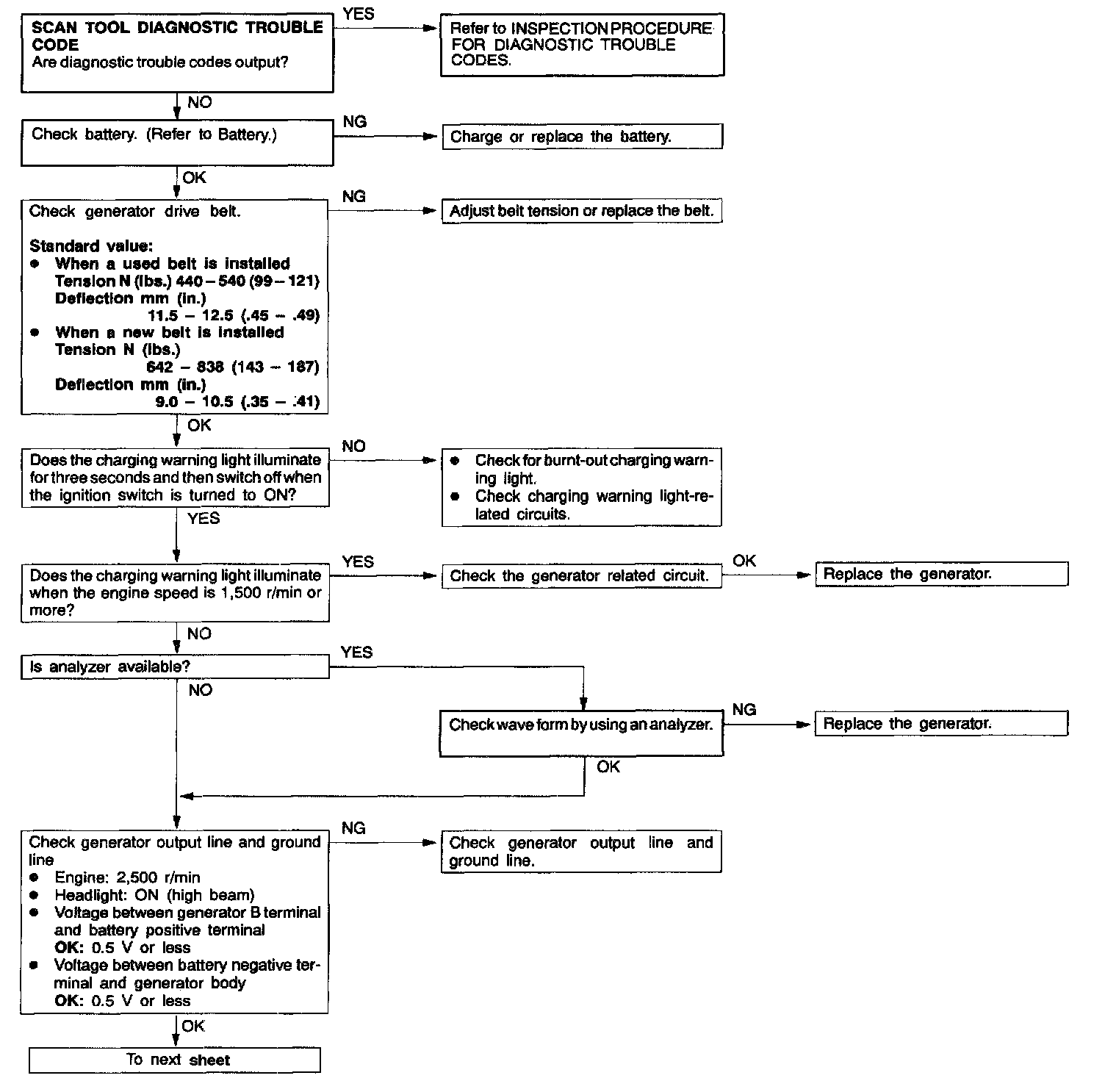

Troubleshooting Guide (Part 1 Of 2):

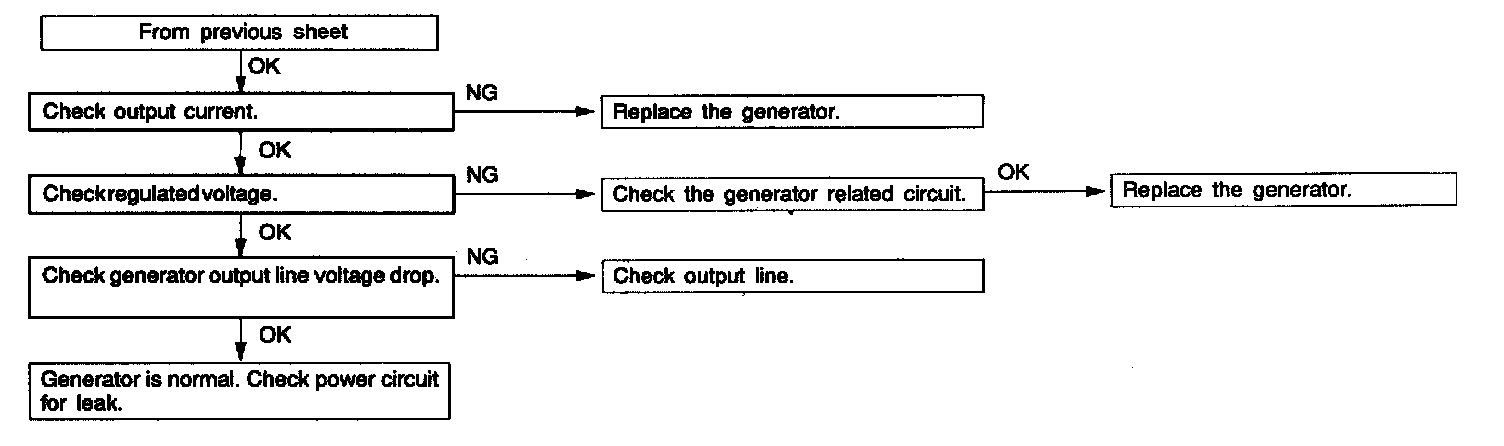

Troubleshooting Guide (Part 2 Of 2):
The
Charging System
troubleshooting guide is shown in the charts above.
