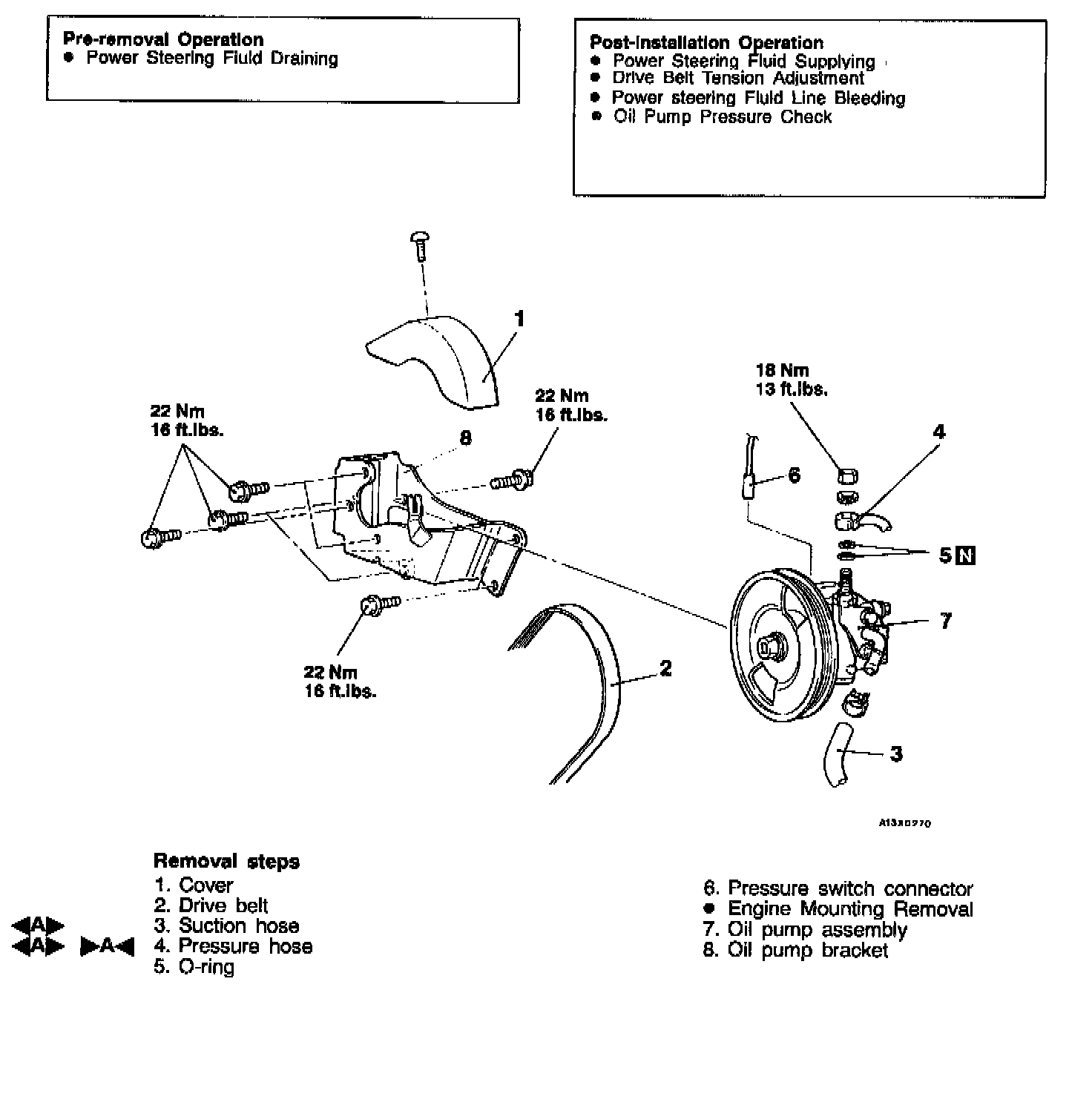

Removal and Installation

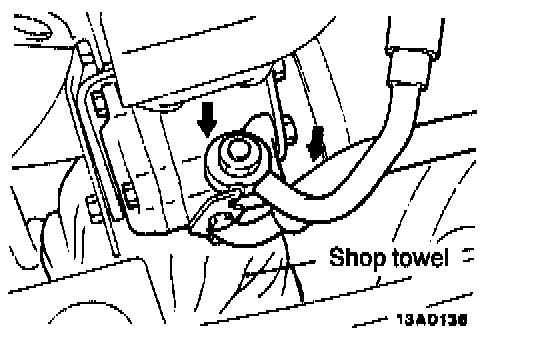

CAUTION: Generator is below the oil pump, so cover the generator with a shop towel before removing any of the hoses.

INSTALLATION SERVICE POINT
>A< PRESSURE HOSE INSTALLATION

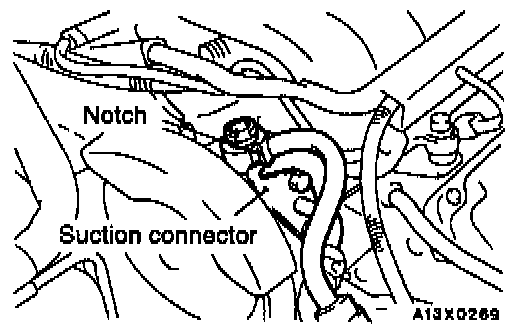

Connect the pressure hose so that its notch part contacts the suction connector.

INSPECTION
- Check the drive-belt for cracks.
- Check the pulley assembly for uneven rotation.
