Steering Angle Check

STEERING ANGLE CHECK

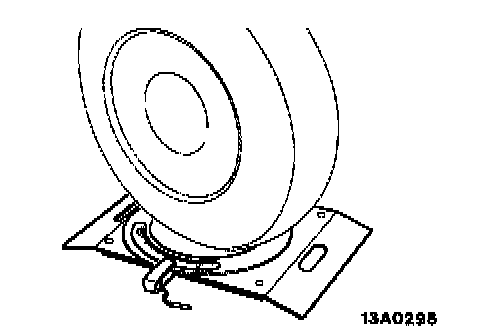

1. Locate front wheels on turning radius gauge and measure steering angle.
Standard value:
Inside wheel: 32°30' ± 2� 31°30' ± 2�
Outside wheel: 27°00' (reference value) 26°30' (reference value)

2. When the angle is not within the standard value, the toe is probably incorrect. Adjust toe and recheck steering angle.
