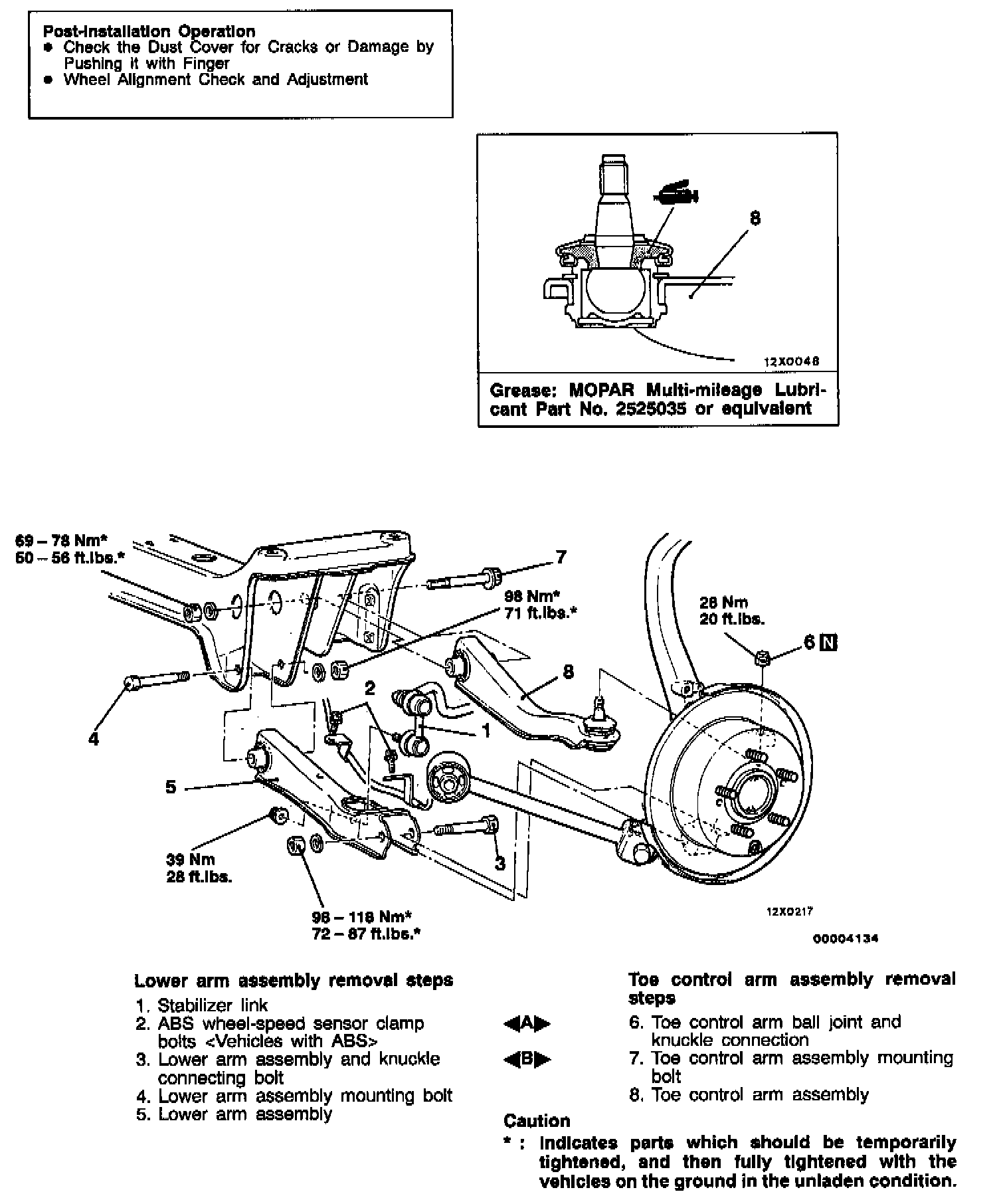

Lower Arm and Toe Control Arm Assemblies

CAUTION:

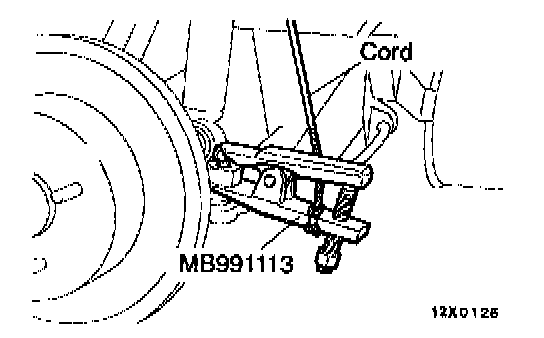

1. Be sure to tie the cord of the special tool to a nearby part.
2. Loosen the nut but do not remove it.

TOE CONTROL ARM ASSEMBLY MOUNTING BOLT REMOVAL

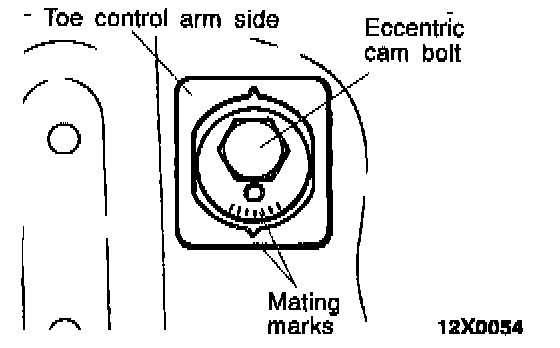

Make mating marks on the toe control arm and eccentric cam bolt before removing the bolt.

INSPECTION
- Check the bushings for wear and deterioration.
- Check the lower arm or toe control arm for bends or damage.
- Check all bolts for condition and straightness.

BALL JOINT BREAKAWAY TORQUE CHECK

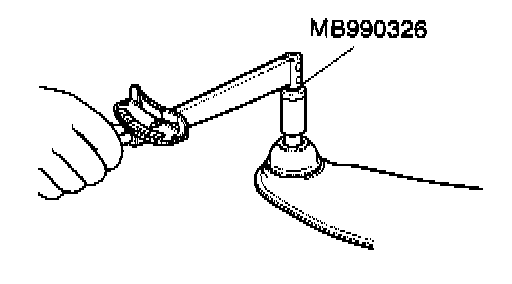

1. After shaking the ball joint stud several times, install the nut to the stud and use the special tool to measure the breakaway torque of the ball joint.
Standard value: 0.1 - 2.65 Nm (1 - 23 inch lbs.)
2. When the measured value exceeds the standard value. replace the toe control arm assembly.
3. When the measured value is lower than the standard value, check that the ball joint turns smoothly without excessive play. If so, it is possible to use that ball joint.

TOE CONTROL ARM BALL JOINT DUST COVER CHECK

1. Check the dust cover for cracks or damage by pushing it with finger.
2. If the dust cover is cracked or damaged, replace the toe control arm assembly.

NOTE: Cracks or damage of the dust cover may cause damage of the ball joint. When it is damaged during service work, replace the dust cover.

BALL JOINT DUST COVER REPLACEMENT

Only the case that a dust cover is damaged by mistake during servicing, replace it as follows.
1. Remove the dust cover.
2. Apply specified grease to the lip and inside of the dust cover.
Specified Grease: MOPAR Multi-mileage Lubricant Part No. 2525035 or equivalent
3. Drive in the dust cover with the special tool until it is fully seated.
4. Check the dust cover for cracks or damage by pushing it with finger.
