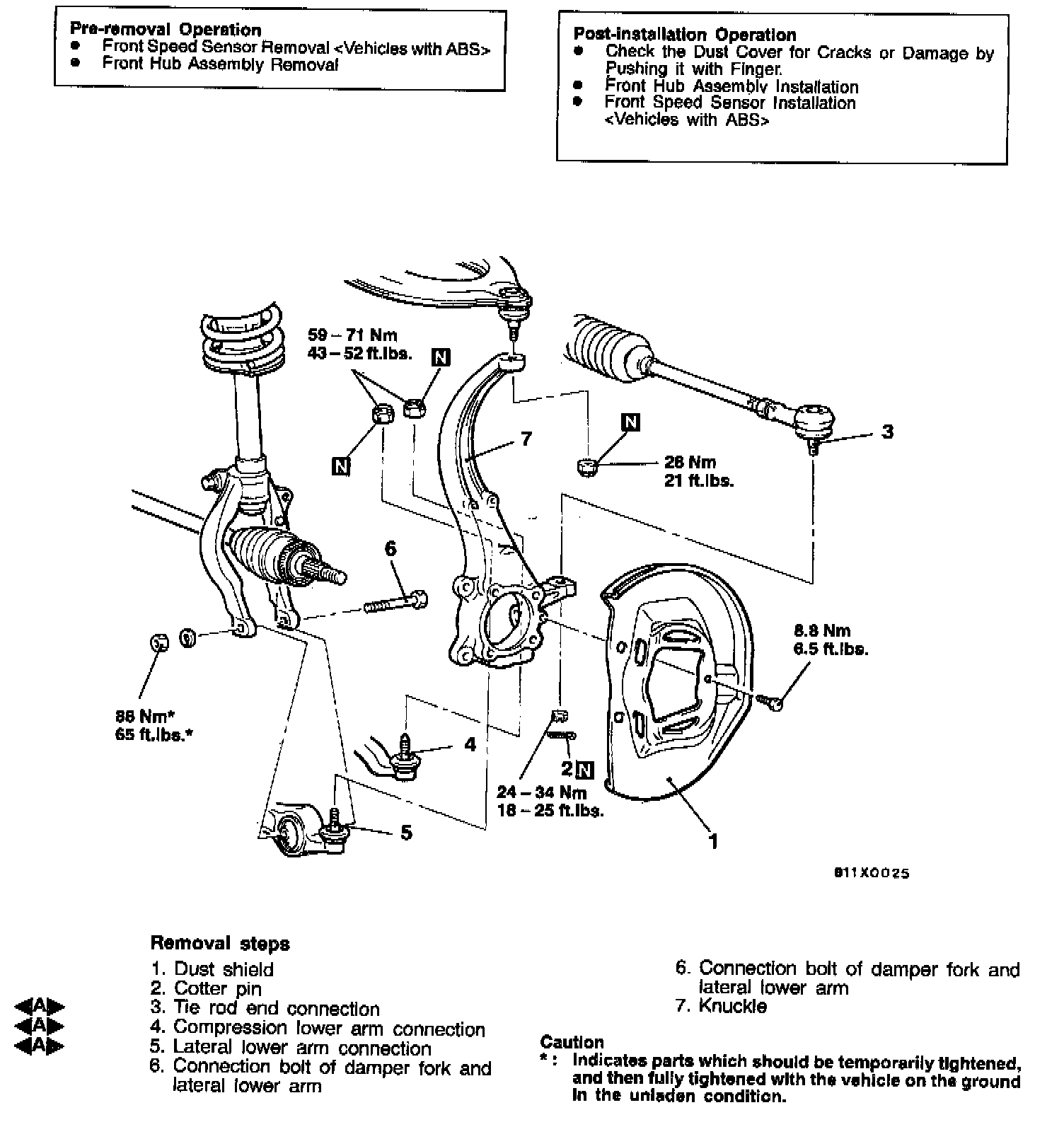

Front Steering Knuckle: Service and Repair

REMOVAL SERVICE POINTS
TIE ROD END/COMPRESSION LOWER ARM/ LATERAL LOWER ARM REMOVAL





Caution:

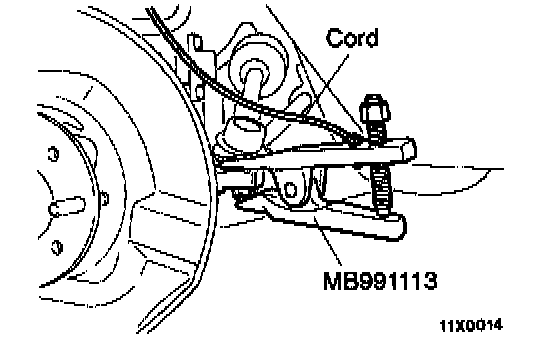

1. Be sure to tie the cord of the special tool to a nearby part.
2. Loosen the nut but do not remove it.

INSPECTION
- Check the knuckle for damage, bending or cracking.
