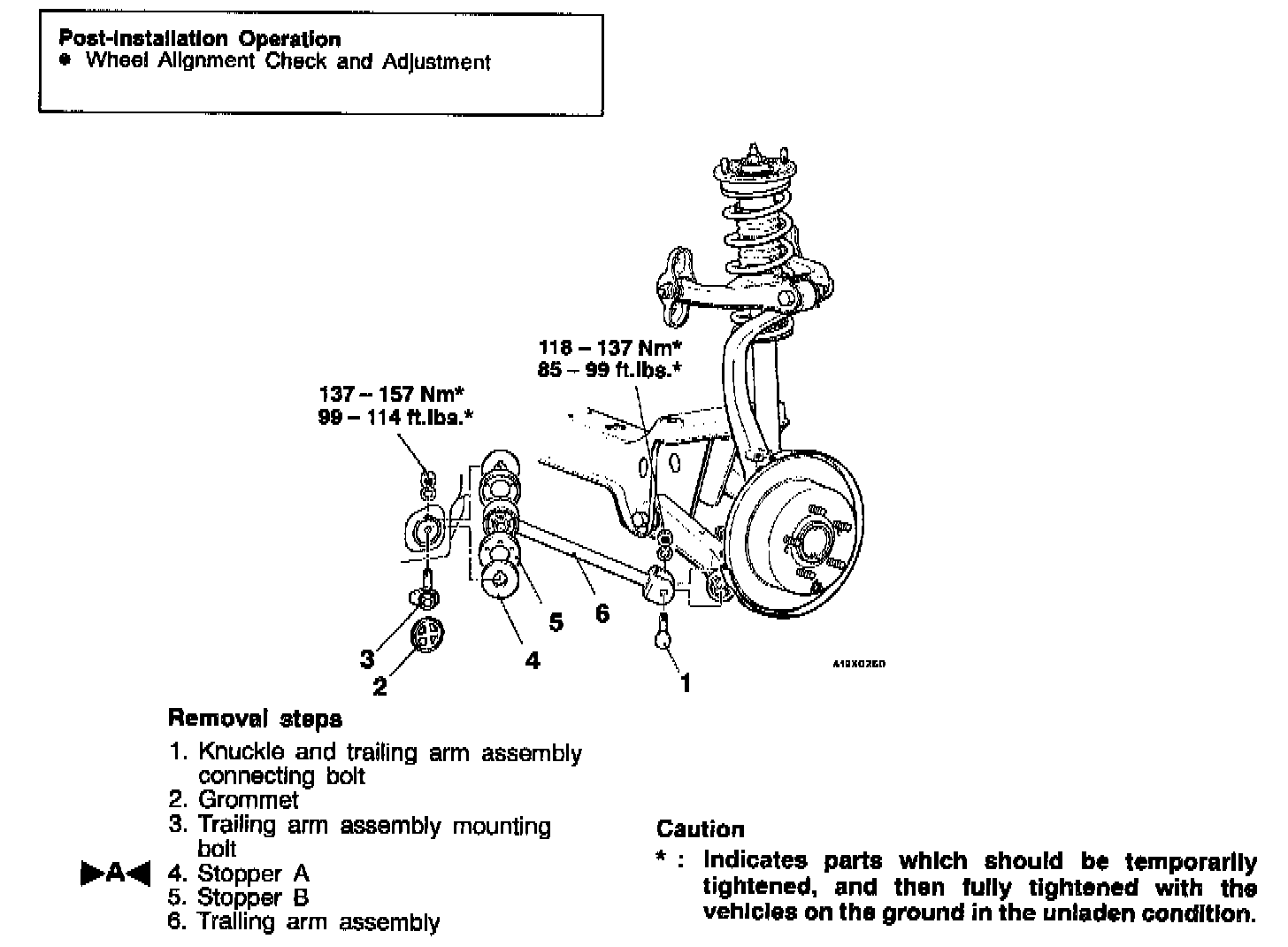

Trailing Arm: Service and Repair

INSTALLATION SERVICE POINT

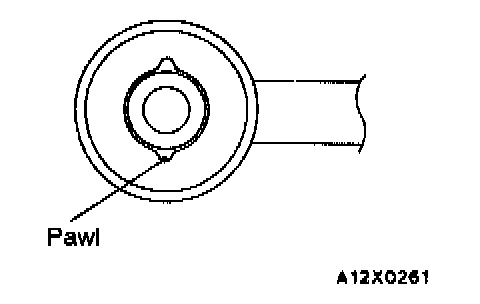

>A< STOPPER A INSTALLATION





Install Stopper A so that it is aligned with the pawl on the trailing arm bushing.

INSPECTION
- Check the bushings for wear and deterioration.
- Check the trailing arm for bends or damage.
