Valve Body: Service and Repair

Before removing any transaxle subassemblies, plug all openings and thoroughly clean exterior of the unit, preferably by steam. Cleanliness through entire disassembly and assembly cannot be overemphasized. When disassembling, each part should be washed in a suitable solvent, then dried by compressed air. Do not wipe parts with shop towels. All mating surfaces in the transaxles are accurately machined; therefore, careful handing of all parts must be exercised to avoid nicks or burrs. Tag all springs as they are removed for reassembly identification.

DISASSEMBLY

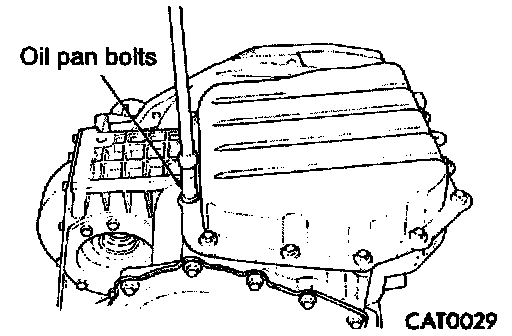

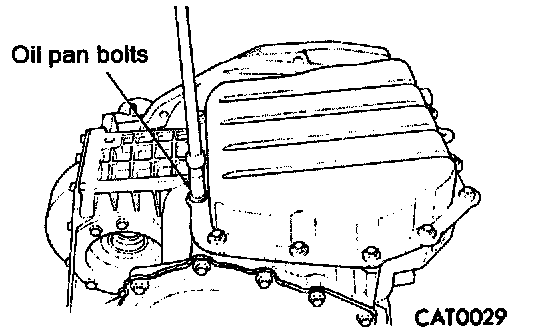

1. Remove oil pan bolts.

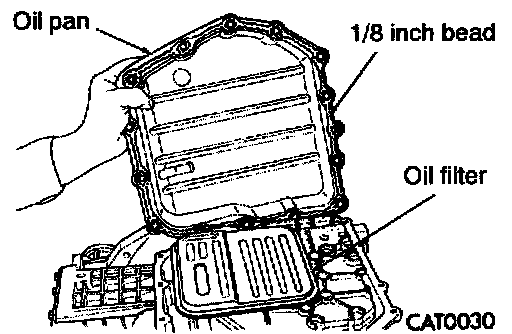

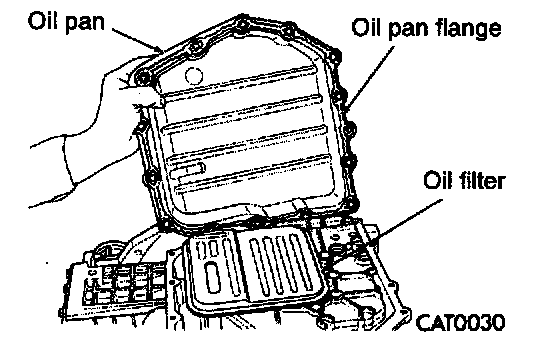

2. Remove oil pan.

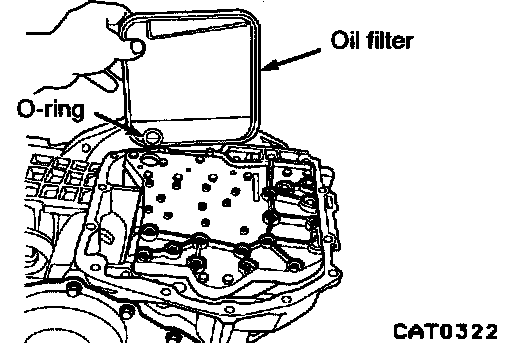

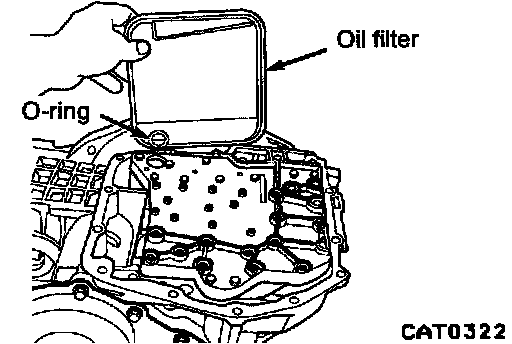

3. Remove oil filter.

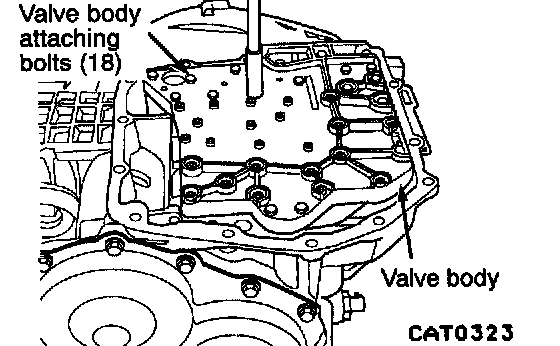

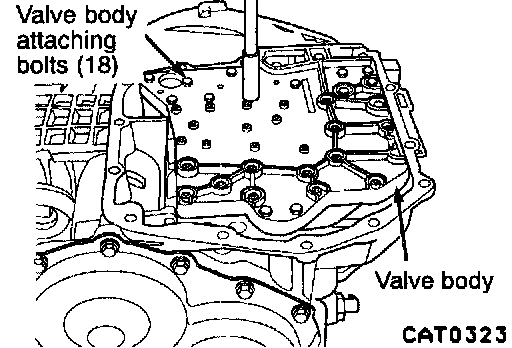

4. Remove valve body attaching bolts 18.

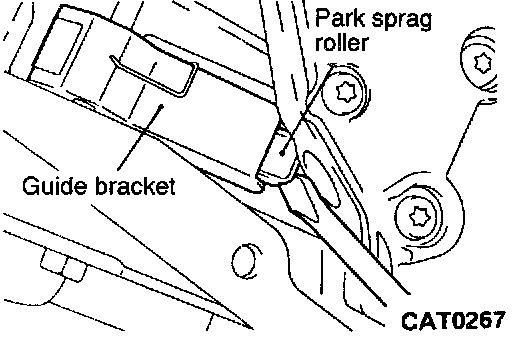

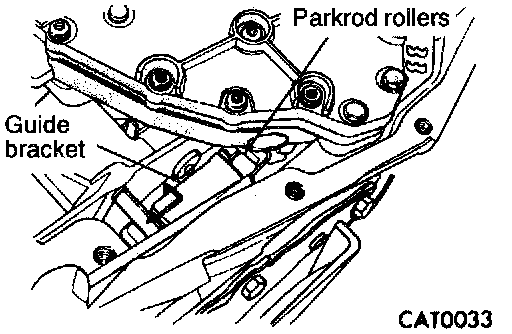

5. Using a screwdriver, push park sprag rollers away from guide bracket.

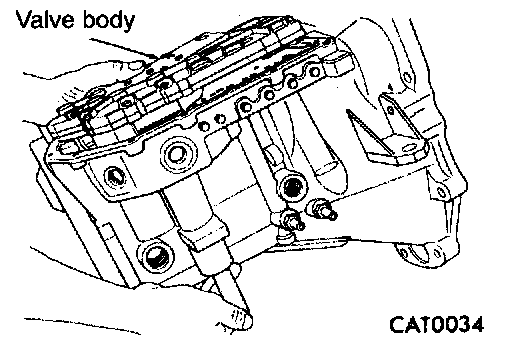

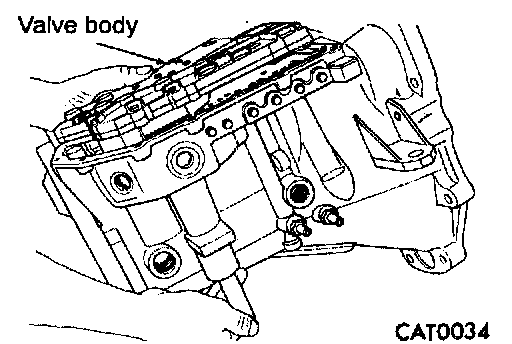

6. Remove valve body.

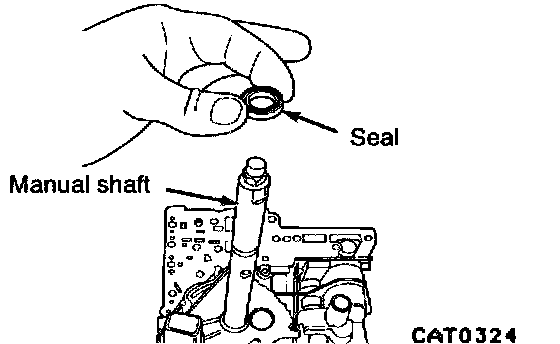

7. Removal manual shaft seal.

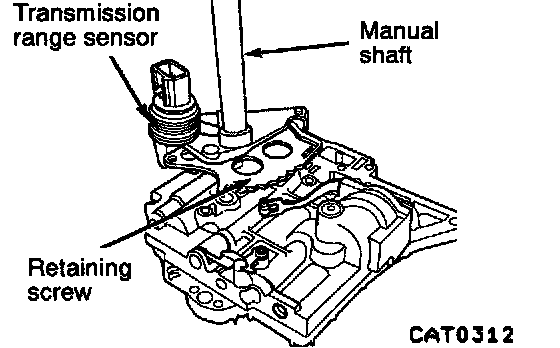

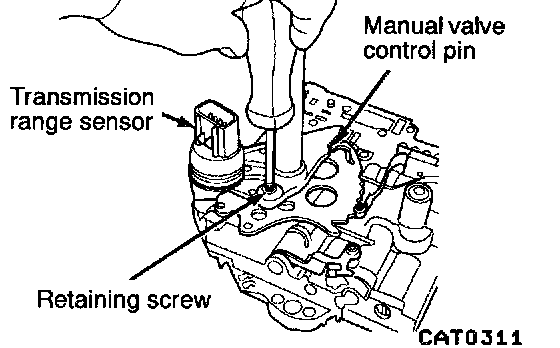

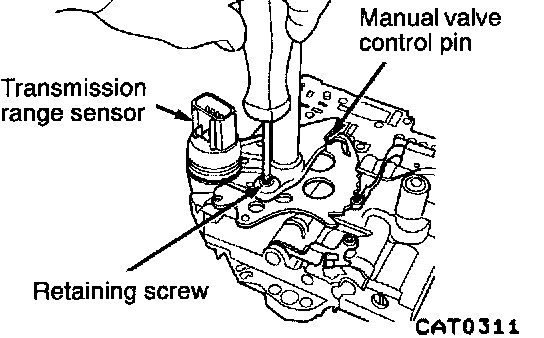

8. Remove transaxle range sensor retaining screw.

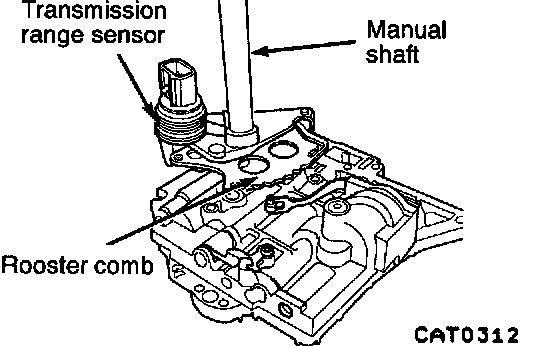

9. Remove manual shaft, rooster comb, and transmission range sensor.

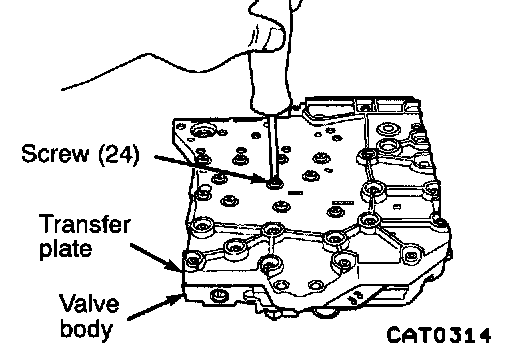

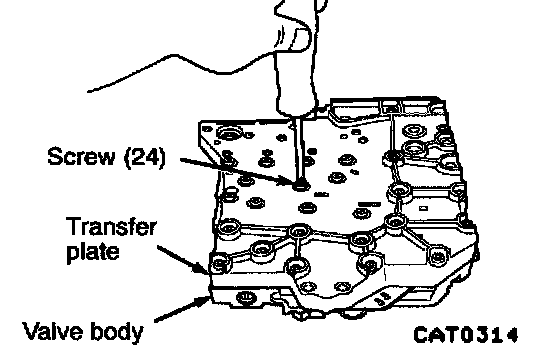

10. Removal transfer plate to valve body screws.

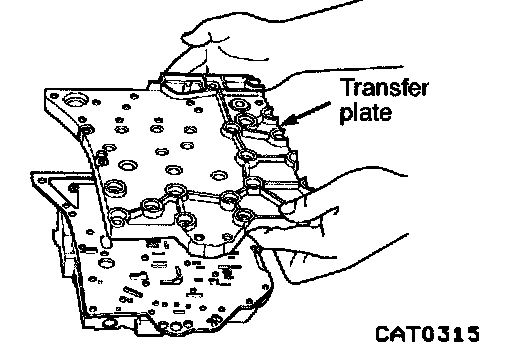

11. Separate transfer plate from valve body.

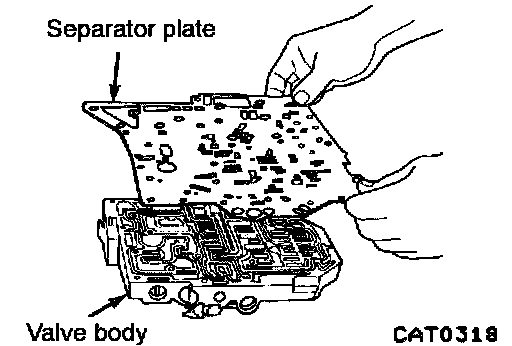

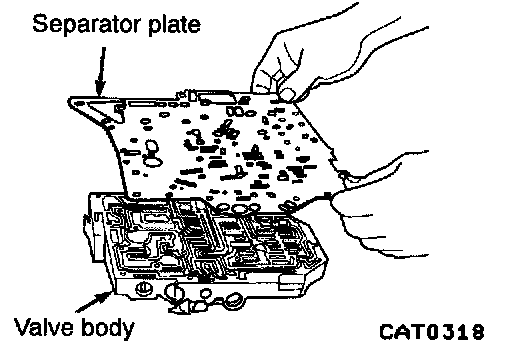

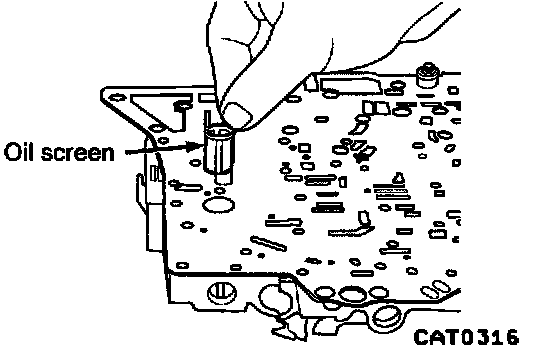

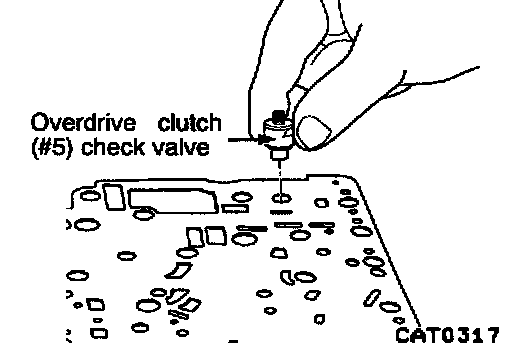

12. Remove separator plate from valve body. Remove O/D clutch check ball and oil screen.

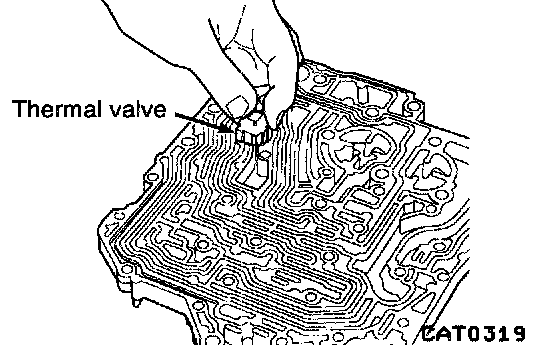

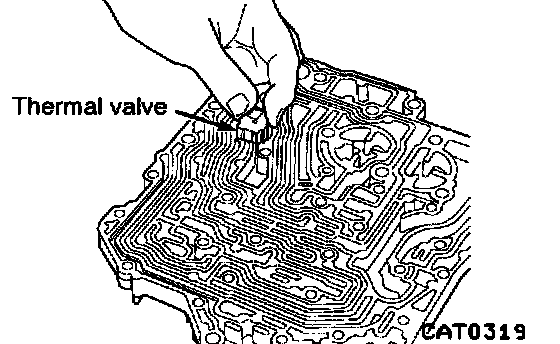

13. Remove thermal valve from transfer plate.

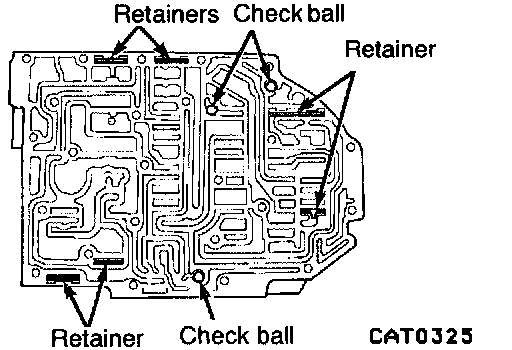

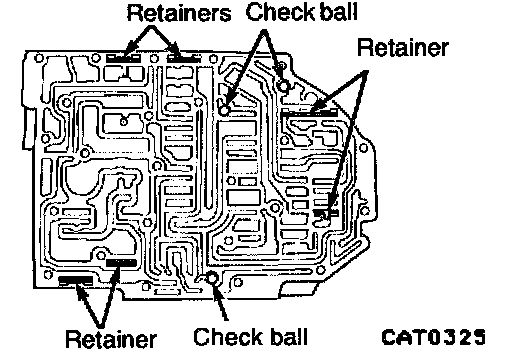

14. Remove check balls and retainers.

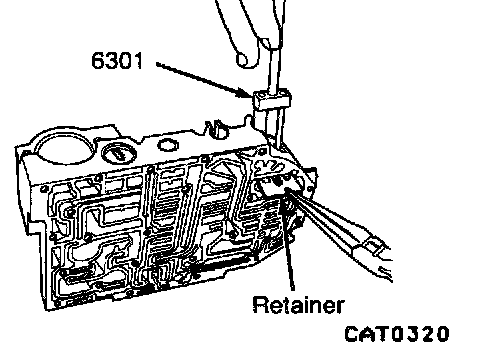

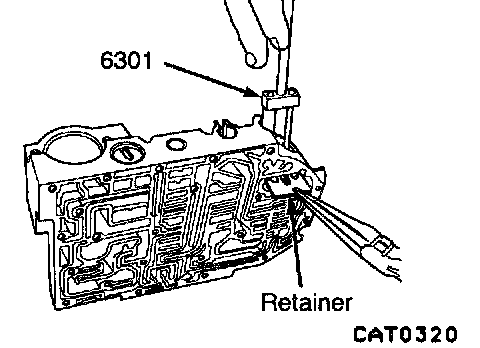

15. Remove dual retainer plate with Installer/Remover 6301. Remove torque converter control valve and torque converter clutch valve.

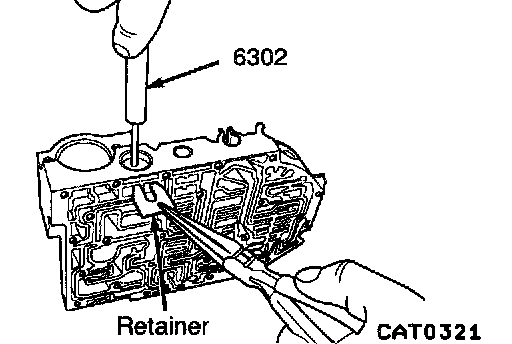

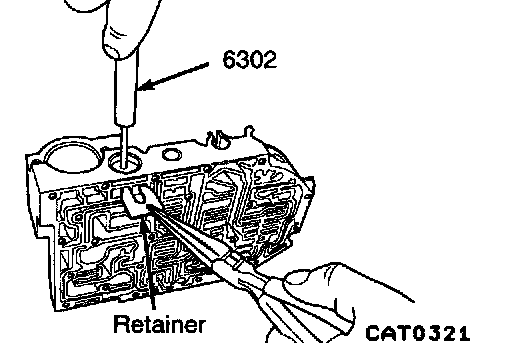

16. Remove retainer plate using Installer/Remover 6302. Remove regulator valve.

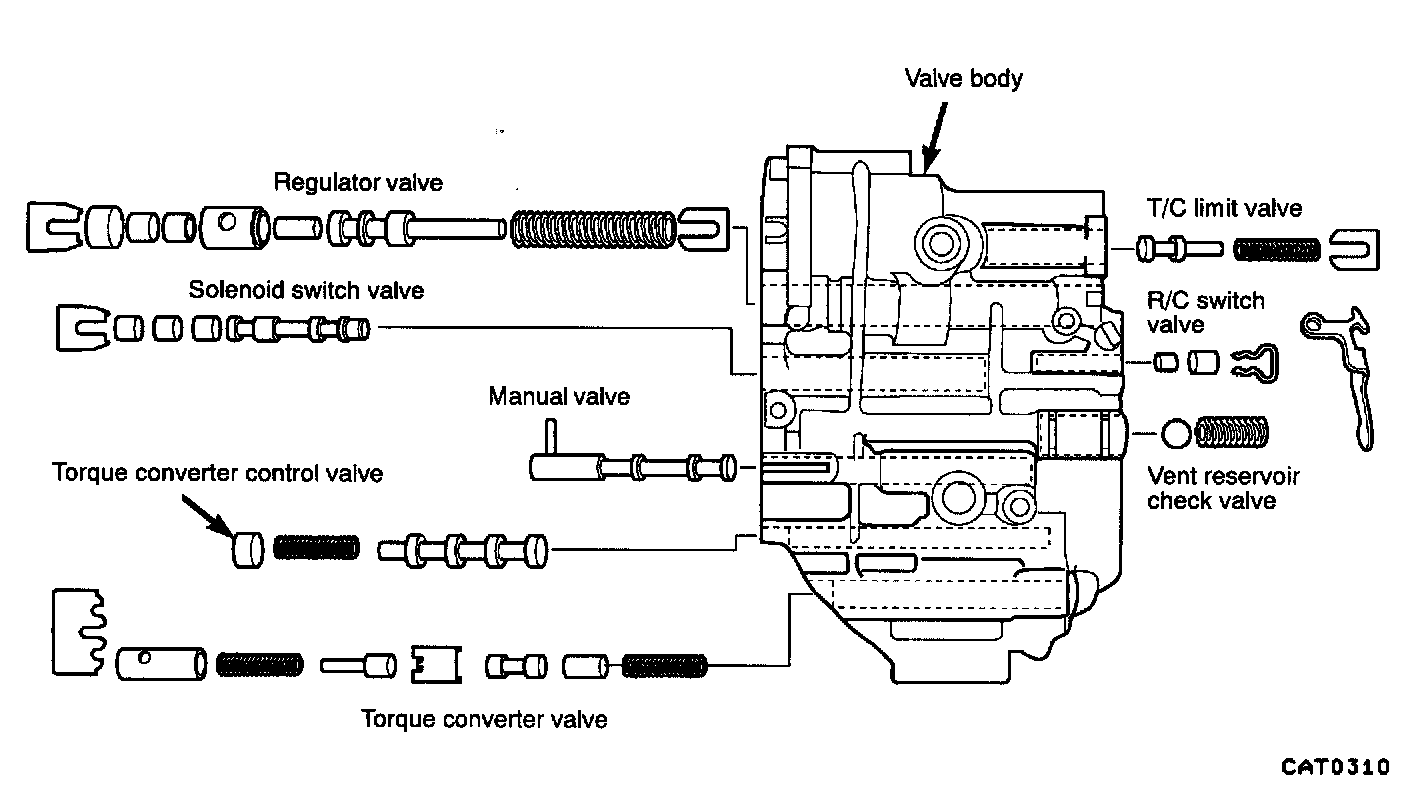

SPRINGS AND VALVES IDENTIFICATION

REASSEMBLY





1. Install regulator valve.
Install retainer plate using Installer/Remover 6302.





2. Install torque converter control valve and torque converter clutch valve. Install dual retainer plate with Installer/Remover 6301.





3. Install remaining valve and springs as shown in .
Install check balls and retainers.

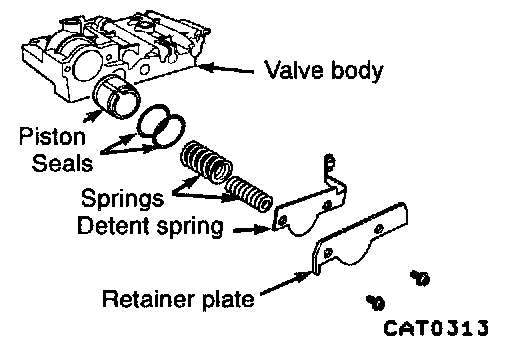

4. Install 2 - 4 accumulator (Piston, Seals and Springs), Detent spring and Retainer plate into valve body.

5. Install thermal valve into transfer plate.

6. Install separator plate to valve body.

7. Install O/D clutch check ball.

8. Install oil screen.

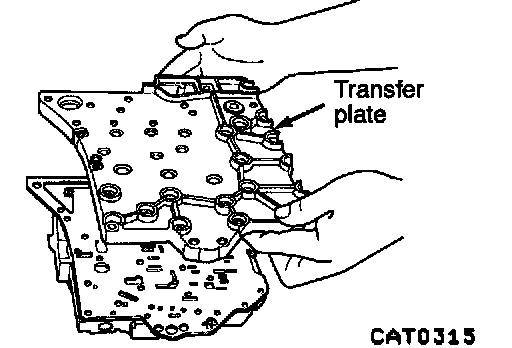

9. Install transfer plate to valve body.

10. Install and tighten transfer plate to valve body screws. torque to 5 Nm (45 inch lbs.).

11. Install manual shaft rooster comb, and transmission range sensor.

12. Install transmission range sensor screw.

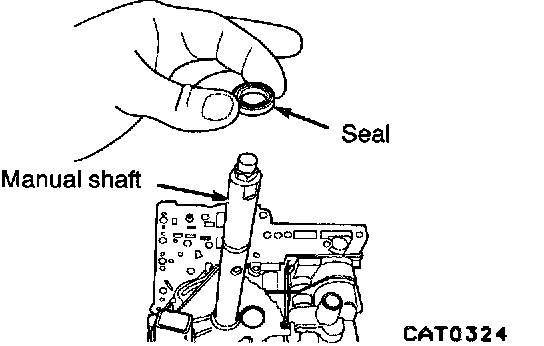

13. Install manual shaft seal

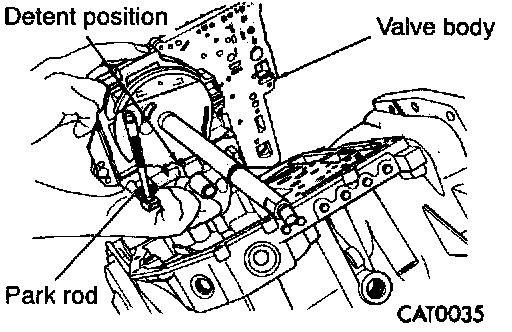

14. Position detent as shown.

15. Install valve body.

16. Using a screwdriver, push guide bracket away to park sprag rollers.

17. Install valve body attaching bolts 18.

18. Install oil filter.

19. Install oil pan.

NOTE: Apply a 1/8 inch wide bead of Loctite 18718 or equivalent.

20. Install oil pan bolts.

NOTE: Use Loctite 18718 or equivalent under bolt beads.
