Clockspring Assembly / Spiral Cable: Diagrams

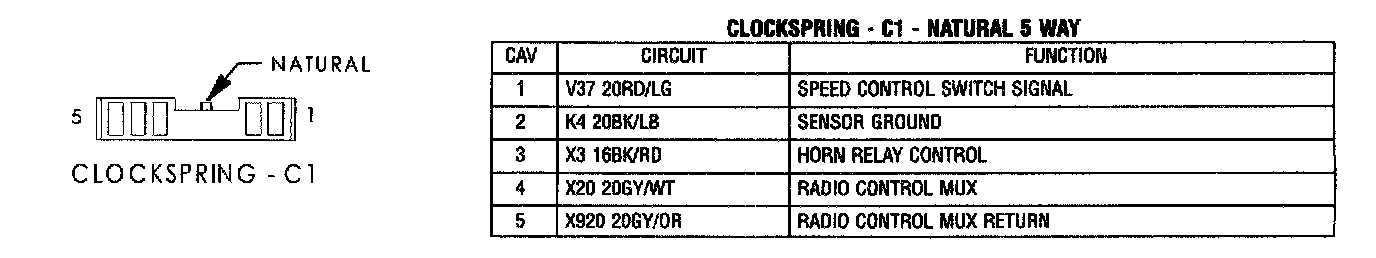

Clockspring - C1:




Clockspring - C2:




Clockspring - C3:
