Seat Belt Buckle - Rear Seat

REMOVAL
1. Remove the rear seat cushion.

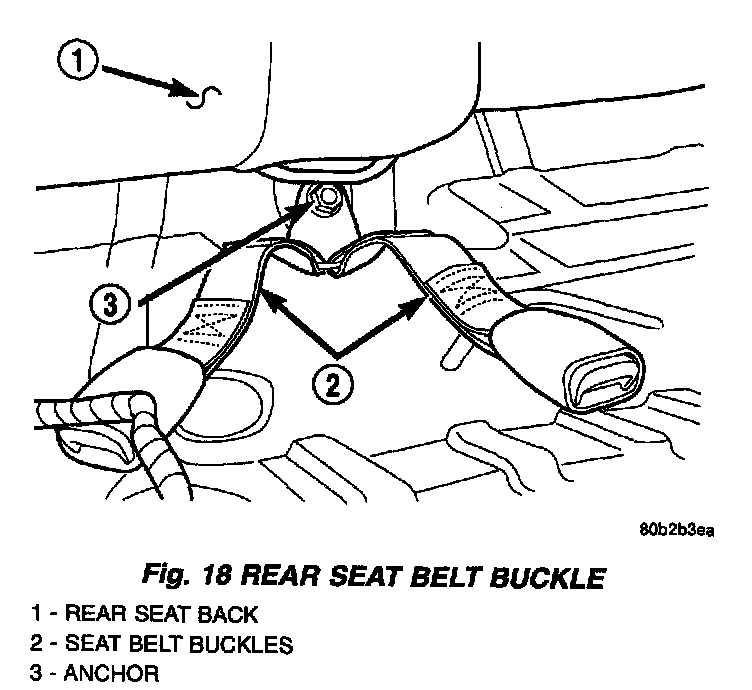

Fig.18 Rear Seat Belt Buckle:

2. Remove the seat belt anchor nut.
3. Remove the seat belt buckle from stud on floor.

INSTALLATION
1. Place the seat belt buckle anchor over stud on floor.
2. Install the rear seat belt anchor nut. Tighten to 40 Nm (30 ft. lbs.) torque.
3. Install the rear seat cushion.
